Chain-Driven Belt Technical Specification
16 pages · flip through online · tap the right half for the next page
What you will find in this specification

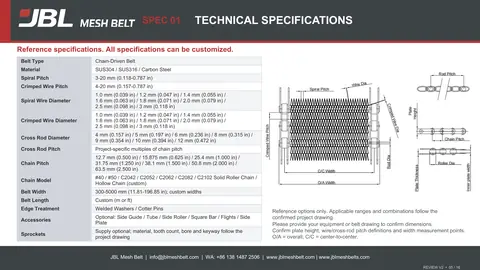

Full parameter tableWire, rod and chain options with chain models.Open page 5 →

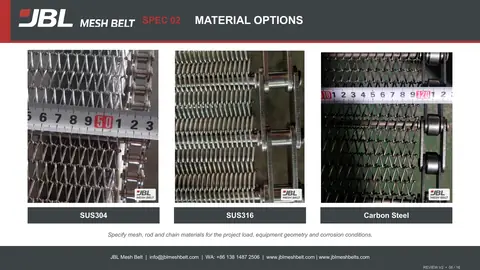

Material optionsSUS304, SUS316 or carbon steel for mesh, rods and chain.Open page 6 →
Chain pitch options12.7 to 63.5 mm, with photos.Open page 7 →
Rod-end connectionsWelded washers or cotter pins.Open page 9 →

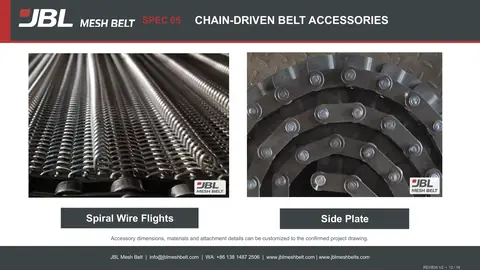

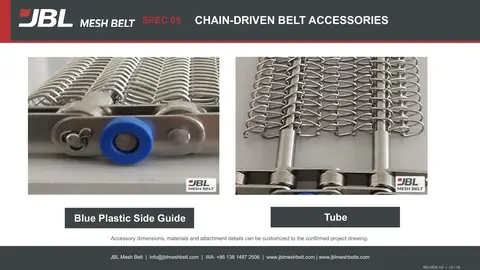

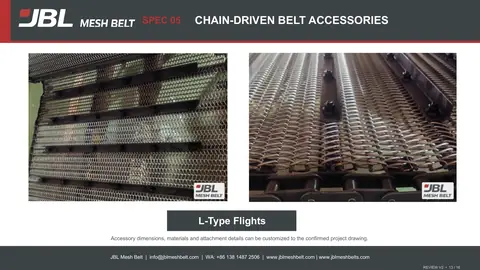

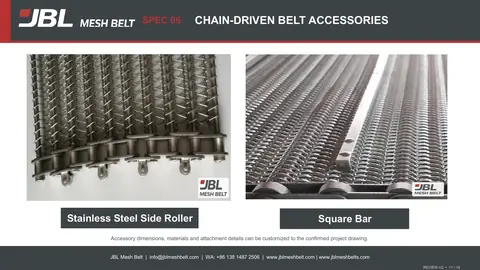

AccessoriesSide guides, tubes, side rollers, square bars, flights and side plates.Open page 10 →

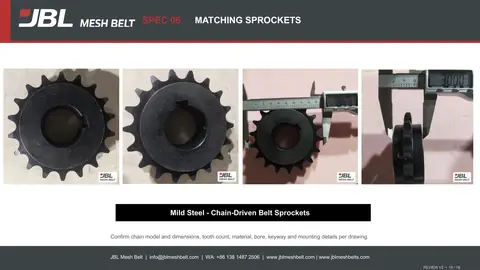

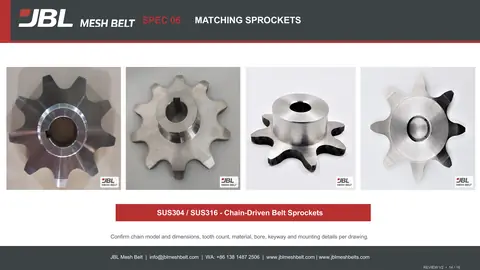

Matching sprocketsStainless steel or mild steel.Open page 14 →About this document

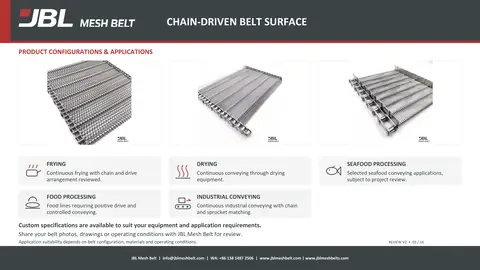

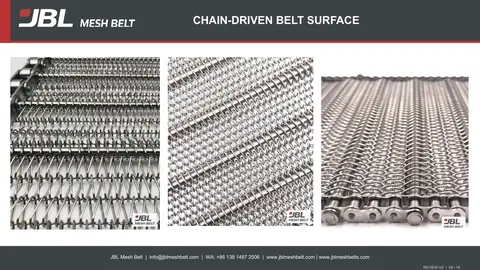

This 16-page technical specification describes the JBL Mesh Belt Chain-Driven Belt for frying, drying, selected seafood conveying, food lines that need positive drive, and industrial conveying.
It lists materials, spiral and crimped wire pitch and diameter, cross rod sizes, chain pitch and chain models, belt width, rod-end connections, accessories and matching sprockets.
Chain structure, sprocket engagement and the drive arrangement are reviewed together; final dimensions follow the confirmed project drawing.

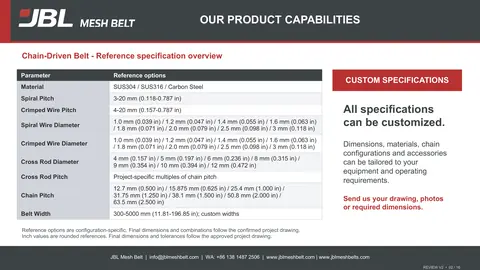

Chain-Driven Belt reference specifications
| Parameter | Reference options |
|---|---|
| Material | SUS304 / SUS316 / carbon steel |
| Spiral pitch | 3–20 mm |
| Crimped wire pitch | 4–20 mm |
| Spiral / crimped wire diameter | 1.0 / 1.2 / 1.4 / 1.6 / 1.8 / 2.0 / 2.5 / 3 mm |
| Cross rod diameter | 4 / 5 / 6 / 8 / 9 / 10 / 12 mm |
| Cross rod pitch | Project-specific multiples of the chain pitch |
| Chain pitch | 12.7 / 15.875 / 25.4 / 31.75 / 38.1 / 50.8 / 63.5 mm |
| Chain model | #40 / #50 / C2042 / C2052 / C2062 / C2082 / C2102 solid roller chain; hollow chain (custom) |
| Belt width | 300–5000 mm (11.81–196.85 in); custom |
| Belt length | Custom, specified in m or ft |
| Rod-end connection | Welded washers / cotter pins |
| Accessories | Side guide / tube / side roller / square bar / flights / side plate (optional) |
Reference options from the 2026-10-02 public specification, pages 2 and 5. Plate height and width measurement points are confirmed per drawing. Final dimensions and combinations follow the confirmed project drawing. See page 5 →
Questions this document answers
+Which chain models does the Chain-Driven Belt specification list?
#40, #50, C2042, C2052, C2062, C2082 and C2102 solid roller chain, plus hollow chain on request (page 5).

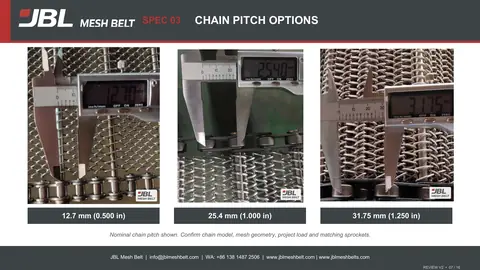

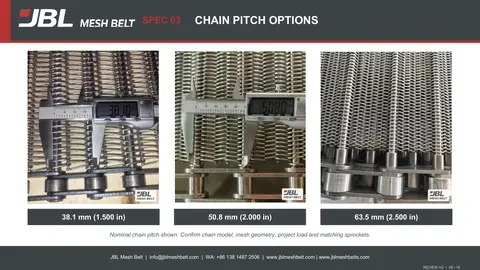

+What chain pitches are shown?
12.7, 15.875, 25.4, 31.75, 38.1, 50.8 and 63.5 mm; photos of six of them are on pages 7–8.
+How is the cross rod pitch set?
As a project-specific multiple of the chain pitch (page 5).

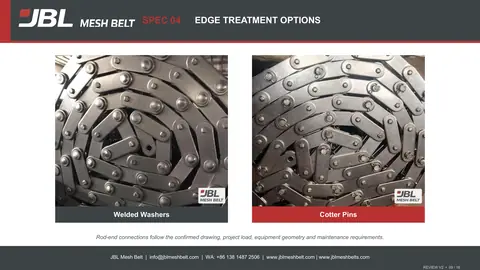

+Which rod-end connections are shown?
Welded washers or cotter pins, chosen for load, equipment geometry and maintenance (page 9).

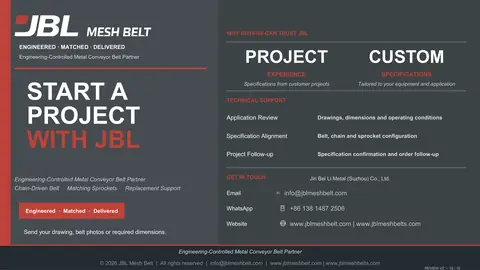

+What should I send for a review?
Photos or a drawing of the belt, chain and sprockets, the chain model or pitch, and what the line does. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 16).
