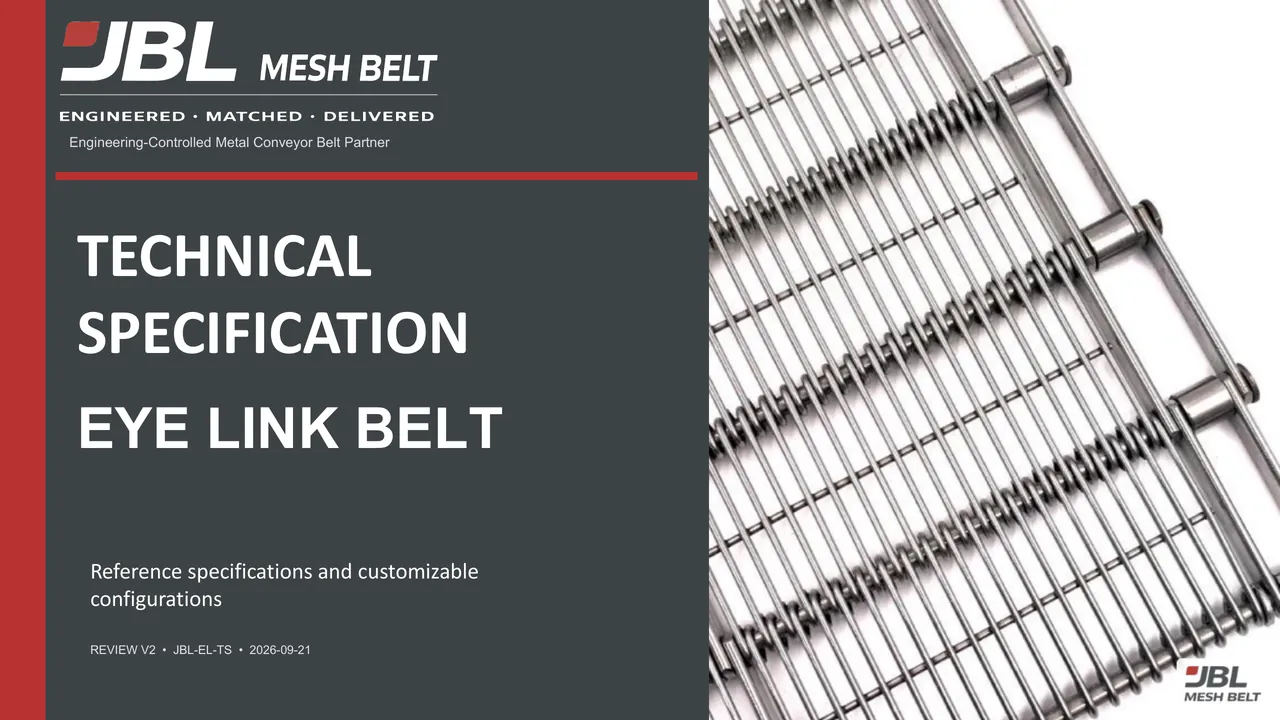

Eye Link Belt Technical Specification
17 pages · flip through online · tap the right half for the next page
What you will find in this specification
Full parameter tableMaterial, pitches, wire and rod sizes, width, edges and accessories.Open page 5 →

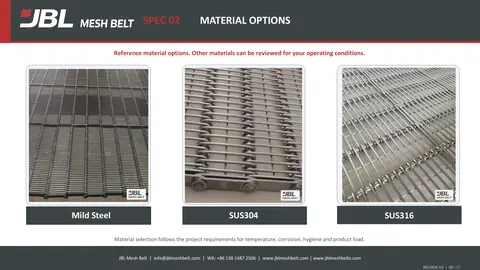

Three material optionsMild steel, SUS304 and SUS316.Open page 6 →

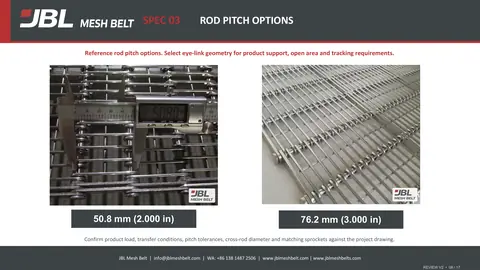

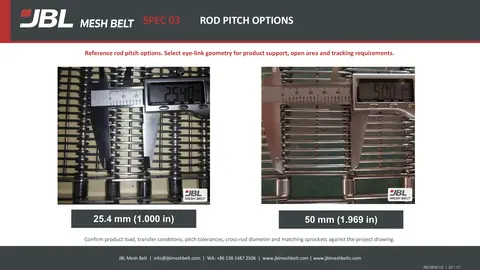

Rod pitch options25.4, 50, 50.8 and 76.2 mm.Open page 7 →

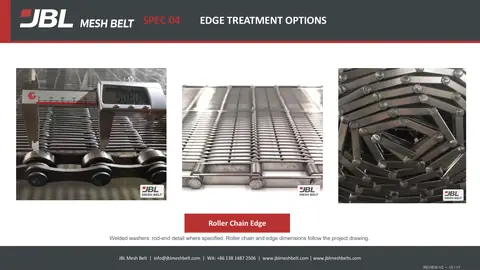

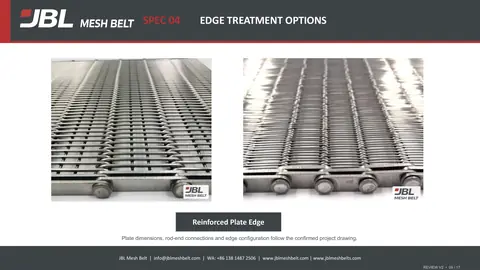

Two edge typesReinforced plate edge or roller chain edge.Open page 9 →

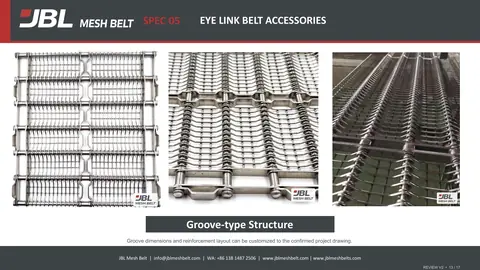

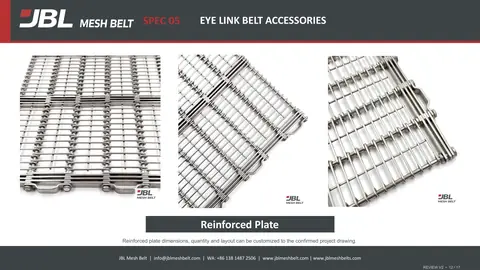

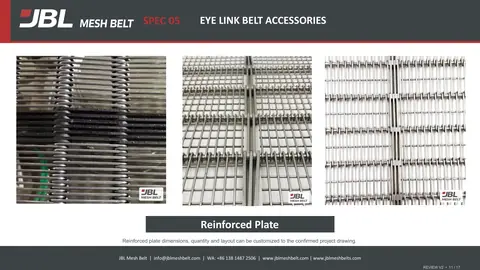

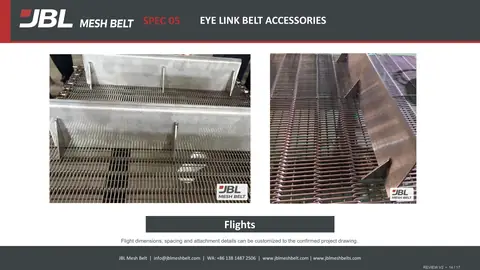

AccessoriesReinforced plates, groove-type structure and flights.Open page 11 →

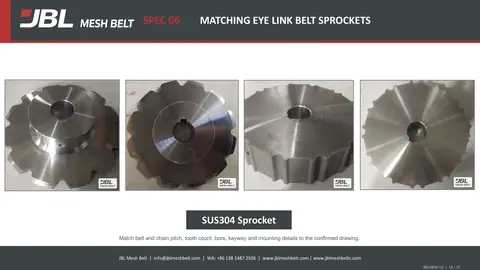

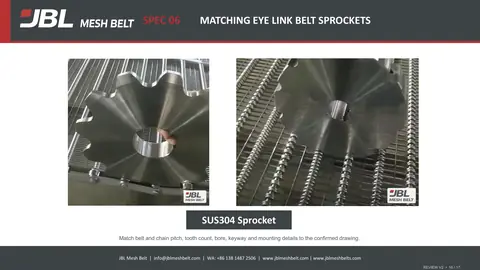

Matching sprocketsSUS304 sprockets matched to belt and chain pitch.Open page 15 →About this document

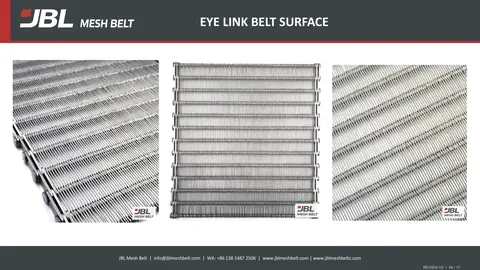

This 17-page technical specification describes the JBL Mesh Belt Eye Link Belt for seafood processing, food processing, frying, drying and cooling lines.
It lists material options, eye-link pitch, rod pitch, wire and cross-rod sizes, reinforcement wire, belt width, roller chain and reinforced plate edges, accessories and matching sprockets.
Application suitability depends on the belt configuration, materials and operating conditions; final dimensions follow the confirmed project drawing.

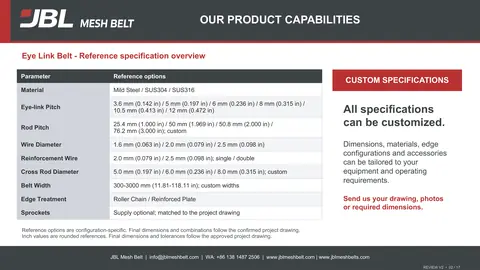

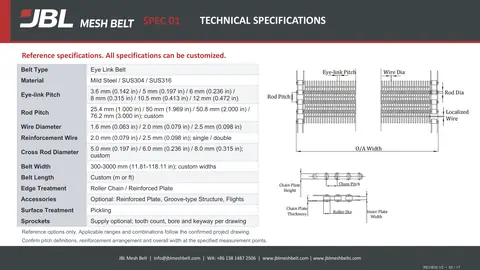

Eye Link Belt reference specifications
| Parameter | Reference options |
|---|---|
| Material | Mild steel / SUS304 / SUS316 |
| Eye-link pitch | 3.6 / 5 / 6 / 8 / 10.5 / 12 mm |
| Rod pitch | 25.4 / 50 / 50.8 / 76.2 mm; custom |
| Wire diameter | 1.6 / 2.0 / 2.5 mm |
| Reinforcement wire | 2.0 / 2.5 mm; single or double |
| Cross rod diameter | 5.0 / 6.0 / 8.0 mm; custom |
| Belt width | 300–3000 mm (11.81–118.11 in); custom |
| Belt length | Custom, specified in m or ft |
| Edge treatment | Roller chain / reinforced plate |
| Accessories | Reinforced plate / groove-type structure / flights (optional) |
| Surface treatment | Pickling |
| Sprockets | Optional; tooth count, bore and keyway per drawing |
Reference options from the 2026-10-02 public specification, pages 2 and 5. Final dimensions and combinations follow the confirmed project drawing. See page 5 →
Questions this document answers
+Which applications does the Eye Link Belt specification cover?

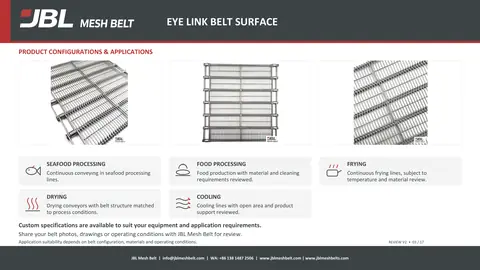

Seafood processing, food processing, frying, drying and cooling (page 3). Frying is subject to a temperature and material review; food lines have material and cleaning requirements reviewed.
+What eye-link and rod pitches are listed?
Eye-link pitches of 3.6, 5, 6, 8, 10.5 and 12 mm, and rod pitches of 25.4, 50, 50.8 and 76.2 mm (pages 5 and 7–8).
+Which edge types are shown?
A reinforced plate edge and a roller chain edge, with welded washers at rod ends where specified (pages 9–10).
+Which materials are offered?
Mild steel, SUS304 and SUS316, selected for temperature, corrosion, hygiene and product load (page 6).
+What should I send for a review?
The product, temperature and cleaning method, plus photos or a drawing of the current belt and its edge. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 17).
Choosing a metal belt for food processing or continuous industrial conveying?
JBL Mesh Belt's Eye Link Belt offers an open linked structure, with configurations evaluated for seafood processing, frying, drying and cooling.
The right choice depends on product support, open area, cleaning needs and the operating environment.
We review eye-link spacing, rod pitch, reinforcement and material requirements together with your equipment details.
Specifications can be customized, including belt dimensions, edge arrangements and accessories. Suitability and final dimensions follow your application requirements and confirmed drawing.
For a new conveyor or a replacement, send us your belt photos, drawings and operating conditions.
JBL Mesh Belt helps you compare the relevant options and clarify the specification before purchasing, so future repeat orders can follow the same confirmed configuration.
