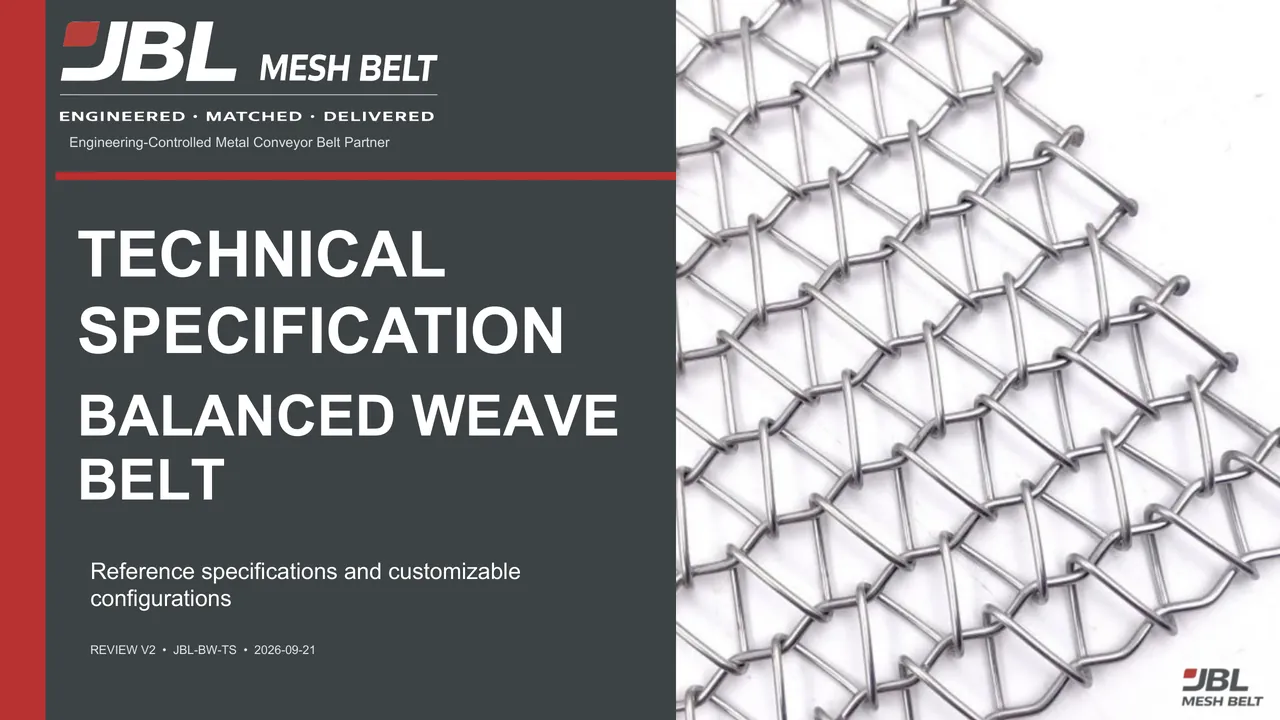

Balanced Weave Belt Technical Specification
10 pages · flip through online · tap the right half for the next page
What you will find in this specification

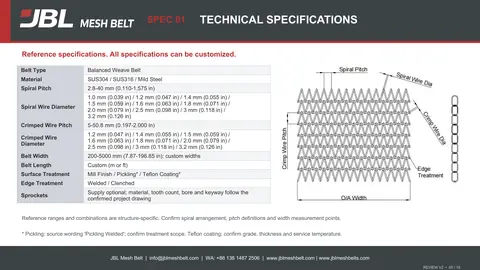

Full parameter tableSpiral and crimped wire options, width, surface and edge.Open page 5 →

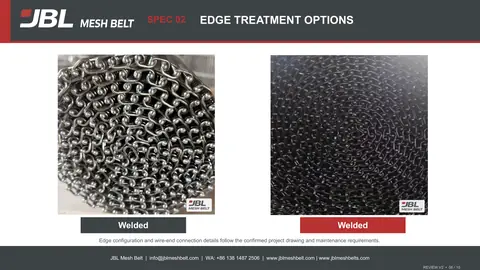

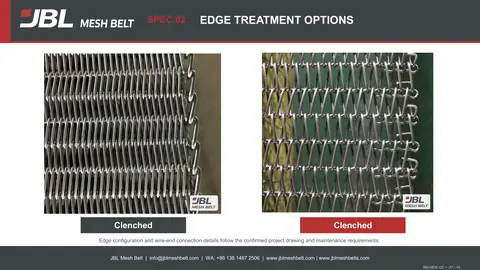

Welded or clenched edgeBoth edge types with photos.Open page 6 →

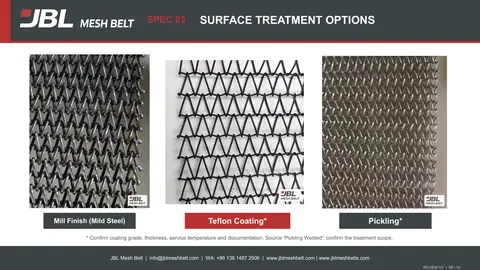

Surface treatmentMill finish, pickling or coating options.Open page 8 →

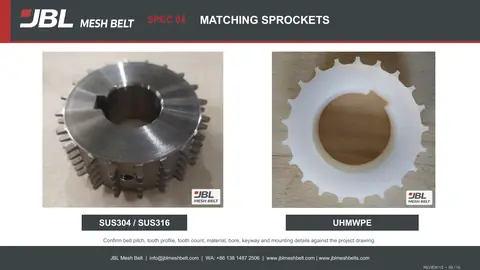

Matching sprocketsStainless steel or UHMWPE.Open page 9 →About this document

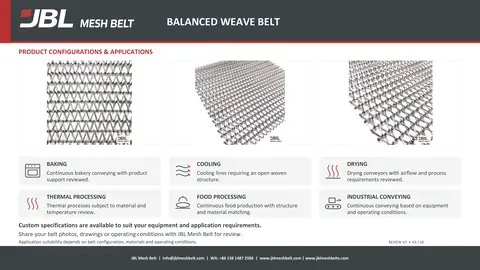

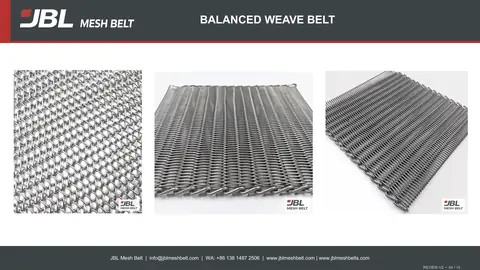

This 10-page technical specification describes the JBL Mesh Belt Balanced Weave Belt for baking, cooling, drying, thermal processing, food and industrial conveying.
It lists materials, spiral pitch and wire diameter, crimped wire pitch and diameter, belt width, surface and edge treatments and matching sprockets.
Thermal processes are subject to a material and temperature review; final dimensions follow the confirmed project drawing.

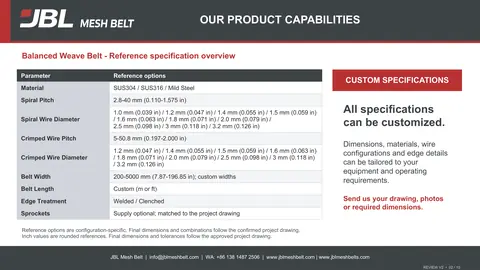

Balanced Weave Belt reference specifications
| Parameter | Reference options |
|---|---|
| Material | SUS304 / SUS316 / mild steel |
| Spiral pitch | 2.8–40 mm |
| Spiral wire diameter | 1.0 / 1.2 / 1.4 / 1.5 / 1.6 / 1.8 / 2.0 / 2.5 / 3 / 3.2 mm |
| Crimped wire pitch | 5–50.8 mm |
| Crimped wire diameter | 1.2 / 1.4 / 1.5 / 1.6 / 1.8 / 2.0 / 2.5 / 3 / 3.2 mm |
| Belt width | 200–5000 mm (7.87–196.85 in); custom |
| Belt length | Custom, specified in m or ft |
| Surface treatment | Mill finish / pickling / coating — scope, grade and service temperature confirmed per project |
| Edge treatment | Welded / clenched |
| Sprockets | SUS304 / SUS316 or UHMWPE; tooth count, bore and keyway per drawing |
Reference options from the 2026-10-02 public specification, pages 2 and 5. The spiral arrangement, pitch definitions and width measurement points are confirmed per drawing. Final dimensions and combinations follow the confirmed project drawing. See page 5 →
Questions this document answers
+What spiral pitch and wire sizes does the Balanced Weave Belt specification list?
Spiral pitch from 2.8 to 40 mm and spiral wire diameters from 1.0 to 3.2 mm (page 5).
+What crimped wire options are shown?
Crimped wire pitch from 5 to 50.8 mm and crimped wire diameters from 1.2 to 3.2 mm (page 5).
+Which edge treatments are available?
Welded and clenched edges, with photos on pages 6–7.
+Which applications are covered?
Baking, cooling, drying, thermal processing, food production and industrial conveying (page 3). Thermal processes are subject to a material and temperature review.

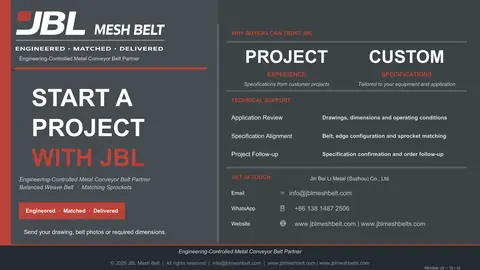

+What should I send for a review?
Photos of the current belt with a ruler, or your drawing, and the product and process. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 10).
Selecting a woven metal belt for your production line?
JBL Mesh Belt's Balanced Weave Belt supports baking, cooling, drying and other continuous food or industrial conveying applications. Thermal processing requires material and operating conditions to be reviewed.
The mesh must provide suitable product support while matching your conveyor and process.
We review spiral pitch, wire dimensions, connecting rods and belt width with your equipment requirements.
Specifications can be customized, including materials, dimensions, edge treatments and relevant accessories. Final combinations follow the confirmed project drawing.
For a new installation or replacement, share photos of your belt, drawings and operating conditions.
JBL Mesh Belt helps you clarify the structure and key dimensions before purchasing, so the selected belt and future repeat orders are based on a consistent specification.
