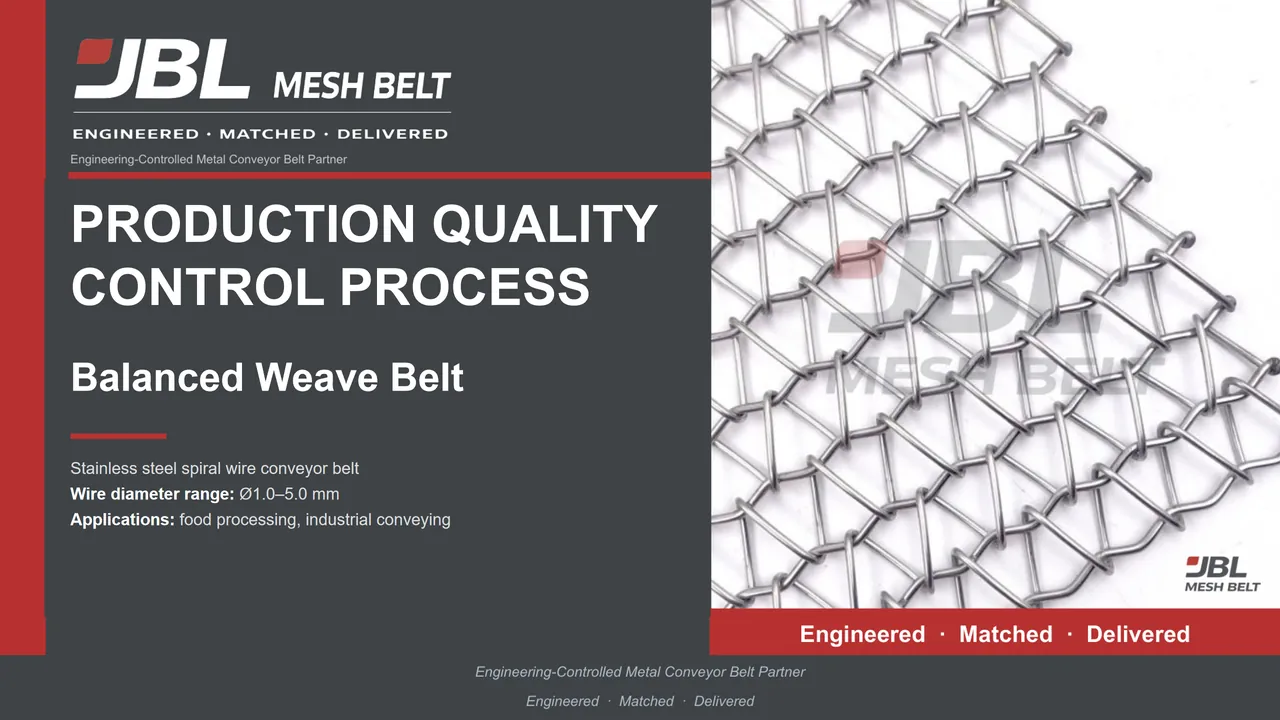

Balanced Weave Belt Production Process and Quality Control
16 pages · flip through online · tap the right half for the next page
What you will find in this book

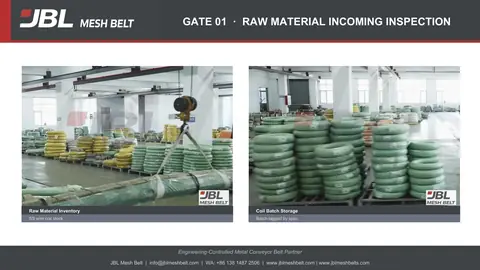

Gate 01 · Raw material incoming inspectionStainless wire coils checked and batch-tagged by specification.Open page 2 →

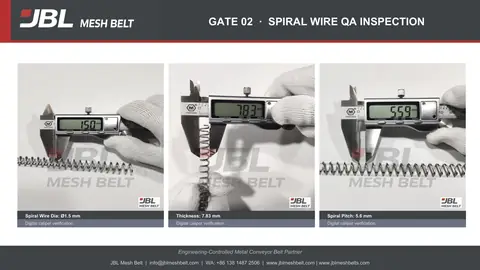

Gate 02 · Spiral wire QA inspectionWire diameter, spiral thickness and pitch measured.Open page 3 →

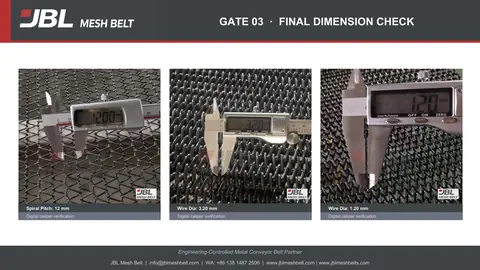

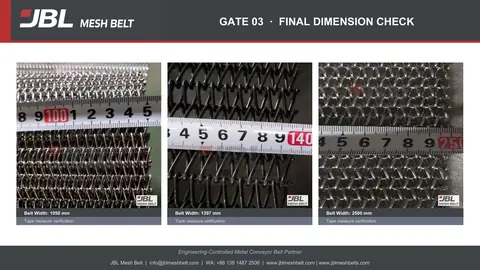

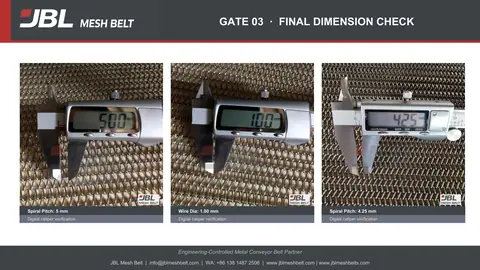

Gate 03 · Final dimension checkSpiral pitch and wire diameter measured; belt width checked with a tape measure.Open page 4 →

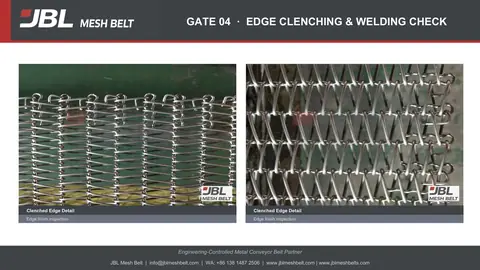

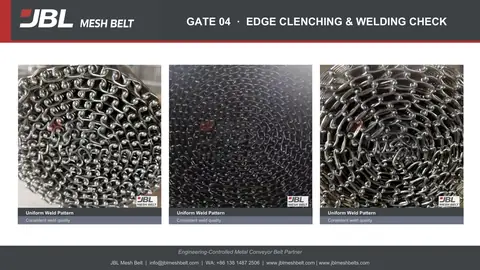

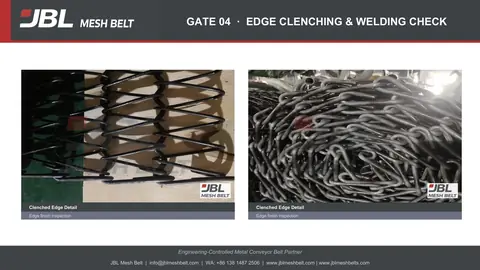

Gate 04 · Edge clenching & welding checkClenched and welded edges inspected along the belt.Open page 7 →

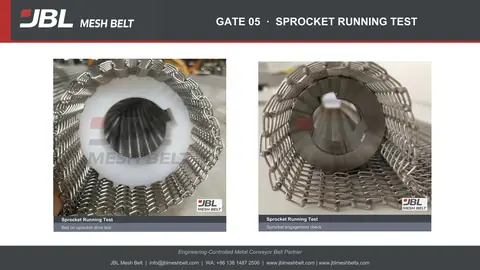

Gate 05 · Sprocket running testBelt run on its sprocket to check engagement.Open page 10 →

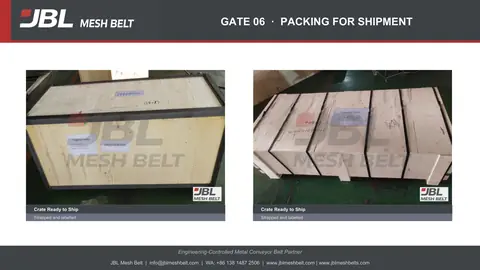

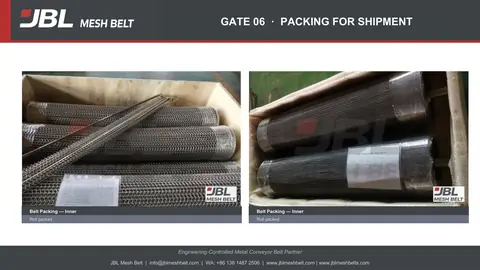

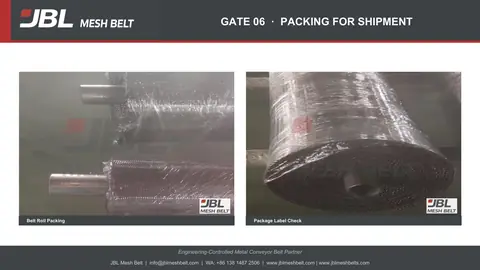

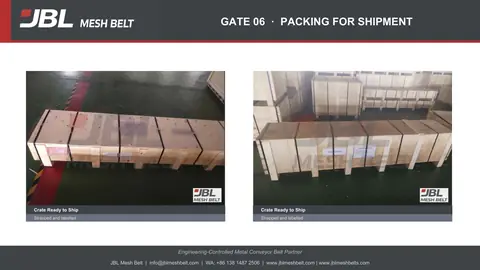

Gate 06 · Packing for shipmentRoll-packed, labels checked, crated, strapped and labelled.Open page 11 →

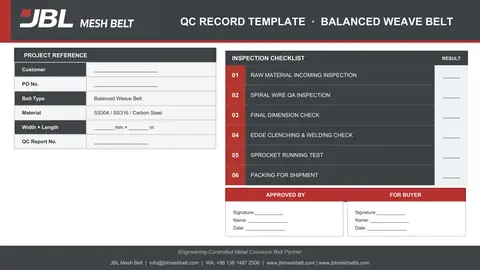

QC record templateProject reference, belt type, material, width and length, one result line for each gate, and signature fields for approval and for the buyerOpen page 15 →About this document
This 16-page book shows how the JBL Mesh Belt Balanced Weave Belt is checked: the 6 inspection gates from raw material incoming inspection to packing for shipment, with the QC record template at the end.
It includes an edge check for clenched and welded edges and a sprocket running test before packing.
The photos show the checks being made. Readings visible in them are examples from individual projects, not specifications; each belt is checked against its confirmed project drawing.
Balanced Weave Belt: inspection gates
| Gate | What is checked | Pages |
|---|---|---|
| 01 · Raw material incoming inspection | Stainless wire coils checked and batch-tagged by specification. | 2 |
| 02 · Spiral wire QA inspection | Wire diameter, spiral thickness and pitch measured. | 3 |
| 03 · Final dimension check | Spiral pitch and wire diameter measured; belt width checked with a tape measure. | 4–6 |
| 04 · Edge clenching & welding check | Clenched and welded edges inspected along the belt. | 7–9 |
| 05 · Sprocket running test | Belt run on its sprocket to check engagement. | 10 |
| 06 · Packing for shipment | Roll-packed, labels checked, crated, strapped and labelled. | 11–14 |
From the JBL Mesh Belt production process and quality control book (without-equipment version). Readings in the photos are project examples; your belt is checked against your confirmed drawing. See page 15 →
Questions this document answers
+Which inspection gates does the Balanced Weave Belt quality control book show?
6 gates: raw material incoming inspection; spiral wire QA inspection; final dimension check; edge clenching & welding check; sprocket running test; packing for shipment (pages 2–14).
+Are the edges of a balanced weave belt inspected?
Yes. Gate 04 inspects clenched and welded edges along the belt (pages 7–9).
+Is the belt run on a sprocket before shipment?
Yes. Gate 05 is a sprocket running test to check engagement (page 10).
+What does the QC record template include?
Project reference, belt type, material, width and length, one result line for each gate, and signature fields for approval and for the buyer (page 15).
+What should I send to review this process against my project?

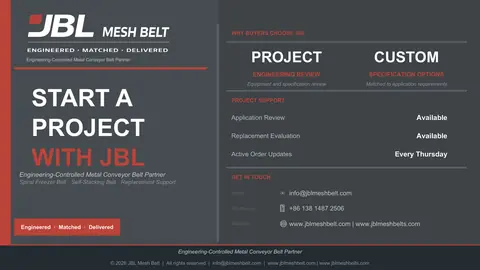

Photos of your current belt with a ruler, or your drawing. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 16).
How is a Balanced Weave Belt checked before it ships?
This 16-page process book follows the belt through 6 inspection gates, from raw material incoming inspection to packing for shipment, and ends with the QC record template.
Each gate shows what is measured or checked at that stage, so you can see what to ask for in your own inspection plan.
Send us photos of your current belt, equipment drawings and the product you need to convey, and we will confirm which checks apply to your project.
