Biscuit Belt Technical Specification
12 pages · flip through online · tap the right half for the next page
What you will find in this specification

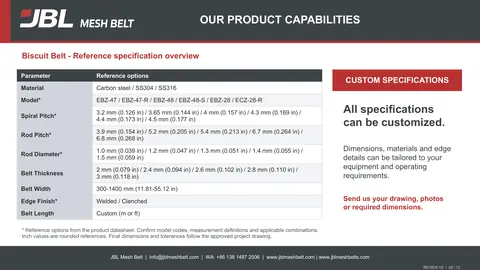

Reference overviewMaterials, model codes, pitches, thickness and width.Open page 2 →
What to agree before orderingMeasurement definitions for each dimension.Open page 3 →

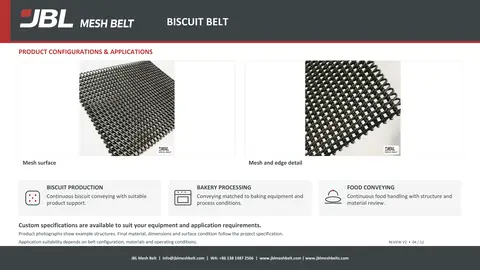

Mesh and edge detailPhotos of example structures.Open page 5 →

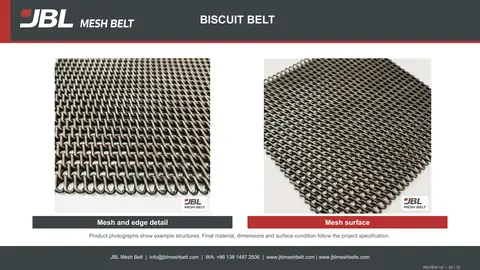

Welded or looped edgeBoth edge examples.Open page 6 →
Reference measurement photosHow the belt is measured, including a flatness check.Open page 7 →About this document
This 12-page technical specification describes the JBL Mesh Belt Biscuit Belt for biscuit production, bakery processing and continuous food conveying.
Besides the reference options, it includes a page that lists what buyer and supplier must agree before ordering: how spiral pitch and rod pitch are measured, which wire a diameter refers to, finished width and length, material and temperature, edge finish and drive.
Model codes, measurement definitions and combinations are confirmed per project; final dimensions follow the confirmed project drawing.

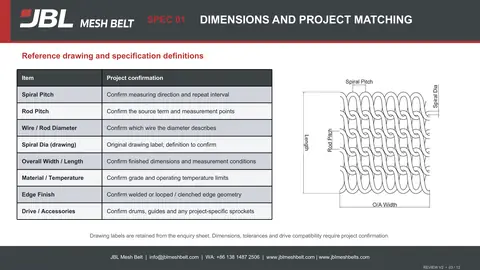

Biscuit Belt: what to confirm before ordering
| Item | What is confirmed |
|---|---|
| Material | Carbon steel / SS304 / SS316; grade and operating temperature |
| Belt width | 300–1400 mm (11.81–55.12 in); finished width and measurement conditions |
| Belt length | Custom, specified in m or ft |
| Spiral pitch | Measuring direction and repeat interval |
| Rod pitch | Source term and measurement points |
| Wire / rod diameter | Which wire the diameter describes |
| Edge finish | Welded or looped / clenched edge geometry |
| Drive / accessories | Drums, guides and any project-specific sprockets |
From the 2026-10-02 public specification, pages 2–3. Model codes and reference pitch, rod and thickness values in the PDF are datasheet references and are confirmed per project. See page 3 →
Questions this document answers
+What does the Biscuit Belt specification ask buyers to confirm?
Page 3 lists the measuring direction of spiral pitch, rod pitch measurement points, which wire a diameter refers to, finished width and length, material and temperature, edge finish, and drive and accessories.
+Which materials and widths are listed?
Carbon steel, SS304 or SS316, and widths from 300 to 1400 mm (page 2).
+Which edge finishes are shown?

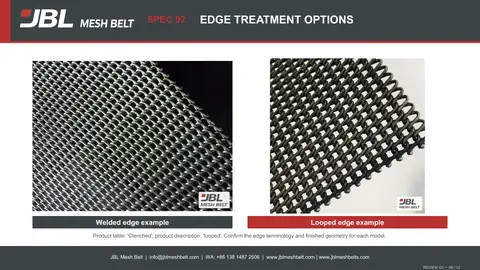

A welded edge and a looped (clenched) edge (page 6). The edge term and finished geometry are confirmed for each model.

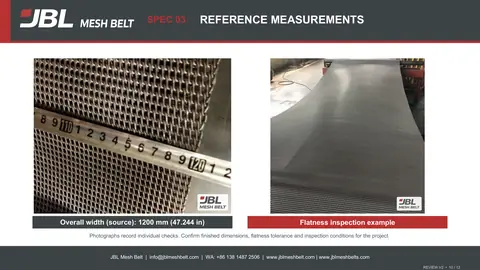

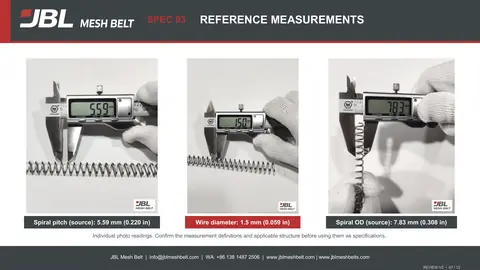

+Are the measurement photos specifications?

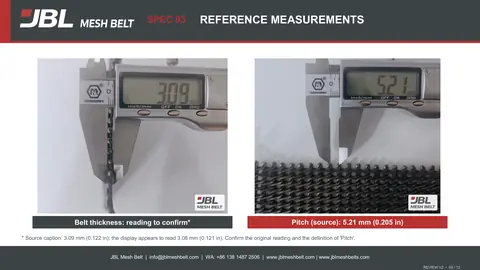

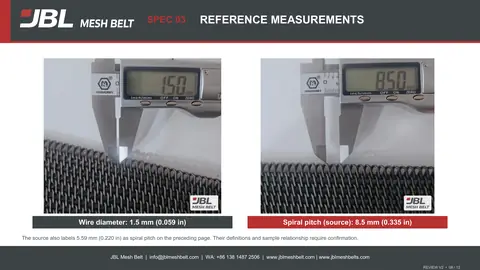

No. Pages 7–10 are individual photo readings that show how the belt is measured; definitions and tolerances follow the project drawing.
+What should I send for a review?
Your enquiry sheet, drawing or photos of the current belt, and the product and oven temperature. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 12).
