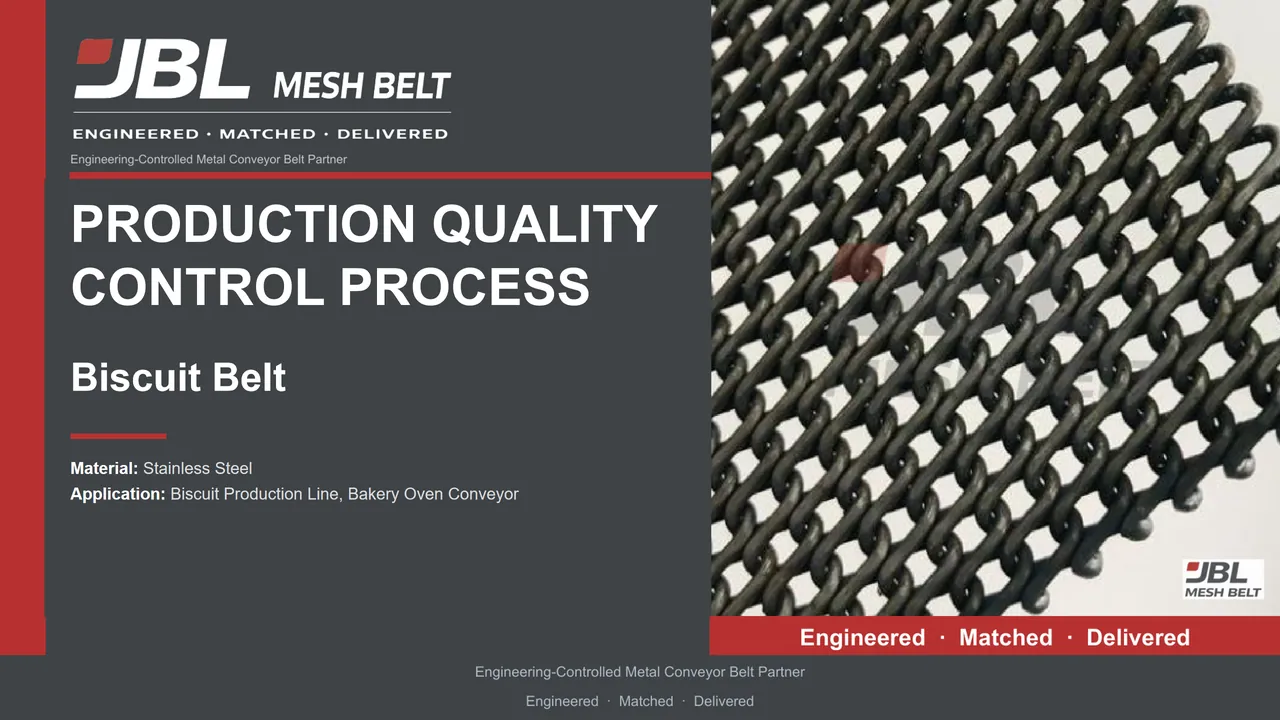

Biscuit Belt Production Process and Quality Control
13 pages · flip through online · tap the right half for the next page
What you will find in this book

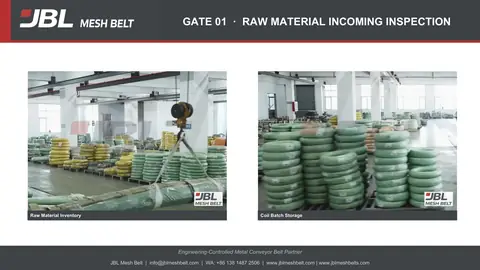

Gate 01 · Raw material incoming inspectionWire coils are checked on arrival and stored by batch.Open page 2 →

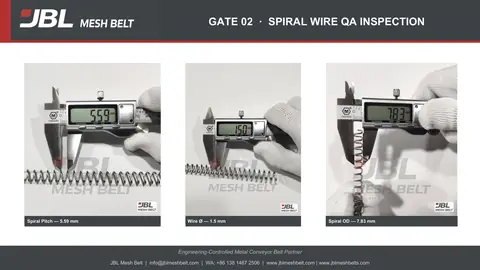

Gate 02 · Spiral wire QA inspectionSpiral pitch, wire diameter and outer diameter measured.Open page 3 →

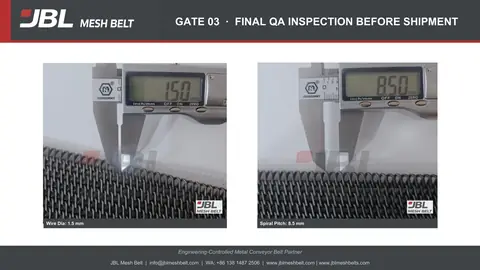

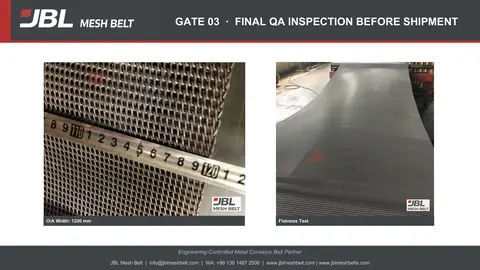

Gate 03 · Final QA inspection before shipmentWire diameter, spiral pitch, belt thickness, pitch and overall width measured; flatness test.Open page 4 →

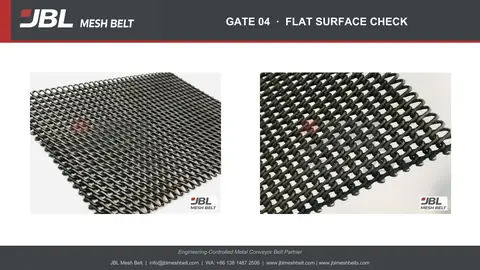

Gate 04 · Flat surface checkThe surface that touches the product inspected.Open page 7 →

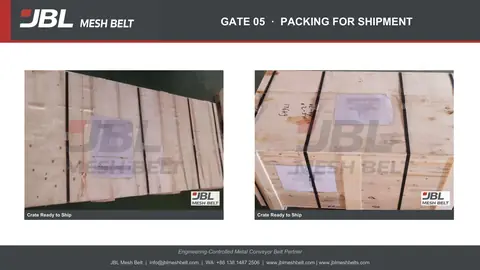

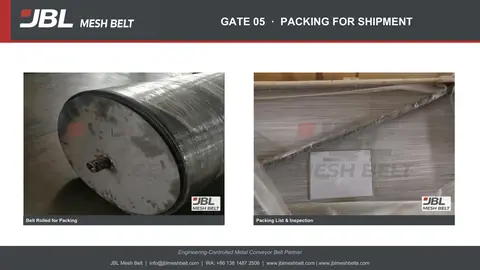

Gate 05 · Packing for shipmentBelt rolled, packing list checked, crated.Open page 10 →

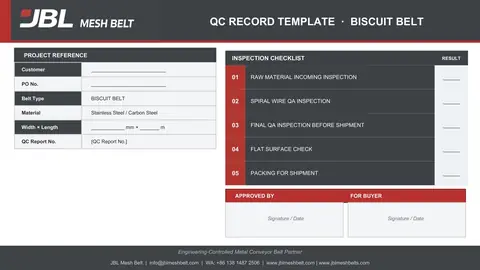

QC record templateProject reference, belt type, material, width and length, one result line for each gate, and signature fields for approval and for the buyerOpen page 12 →About this document
This 13-page book shows how the JBL Mesh Belt Biscuit Belt is checked: the 5 inspection gates from raw material incoming inspection to packing for shipment, with the QC record template at the end.
Biscuits sit directly on the belt, so the final inspection includes a flatness test and a separate flat surface check.
The photos show the checks being made. Readings visible in them are examples from individual projects, not specifications; each belt is checked against its confirmed project drawing.
Biscuit Belt: inspection gates
| Gate | What is checked | Pages |
|---|---|---|
| 01 · Raw material incoming inspection | Wire coils are checked on arrival and stored by batch. | 2 |
| 02 · Spiral wire QA inspection | Spiral pitch, wire diameter and outer diameter measured. | 3 |

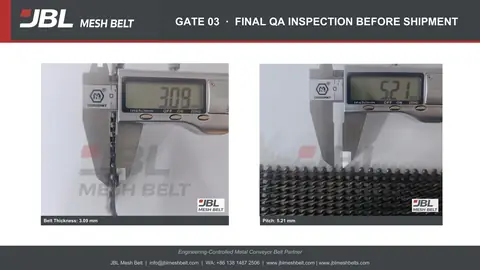

| 03 · Final QA inspection before shipment | Wire diameter, spiral pitch, belt thickness, pitch and overall width measured; flatness test. | 4–6 |

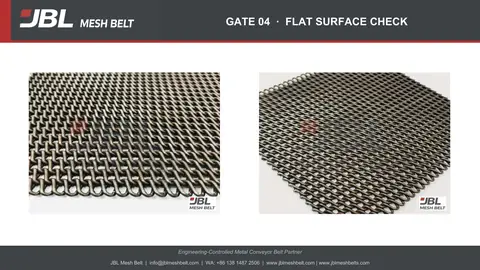

| 04 · Flat surface check | The surface that touches the product inspected. | 7–8 |
| 05 · Packing for shipment | Belt rolled, packing list checked, crated. | 10–11 |
From the JBL Mesh Belt production process and quality control book (without-equipment version). Readings in the photos are project examples; your belt is checked against your confirmed drawing. See page 12 →
Questions this document answers
+Which inspection gates does the Biscuit Belt quality control book show?
5 gates: raw material incoming inspection; spiral wire QA inspection; final QA inspection before shipment; flat surface check; packing for shipment (pages 2–11).
+Is a biscuit belt checked for flatness?
Yes. Gate 03 includes a flatness test (pages 4–6) and Gate 04 is a flat surface check (pages 7–8).
+What is shown on page 9?

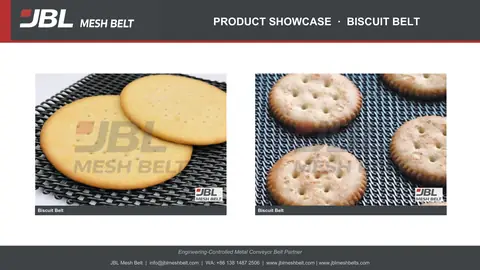

A product showcase: biscuits on the belt.
+What does the QC record template include?
Project reference, belt type, material, width and length, one result line for each gate, and signature fields for approval and for the buyer (page 12).
+What should I send to review this process against my project?
Your enquiry sheet, drawing or photos of the current belt, and the product and oven temperature. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 13).
How is a Biscuit Belt checked before it ships?
This 13-page process book follows the belt through 5 inspection gates, from raw material incoming inspection to packing for shipment, and ends with the QC record template.
Each gate shows what is measured or checked at that stage, so you can see what to ask for in your own inspection plan.
Send us photos of your current belt, equipment drawings and the product you need to convey, and we will confirm which checks apply to your project.
