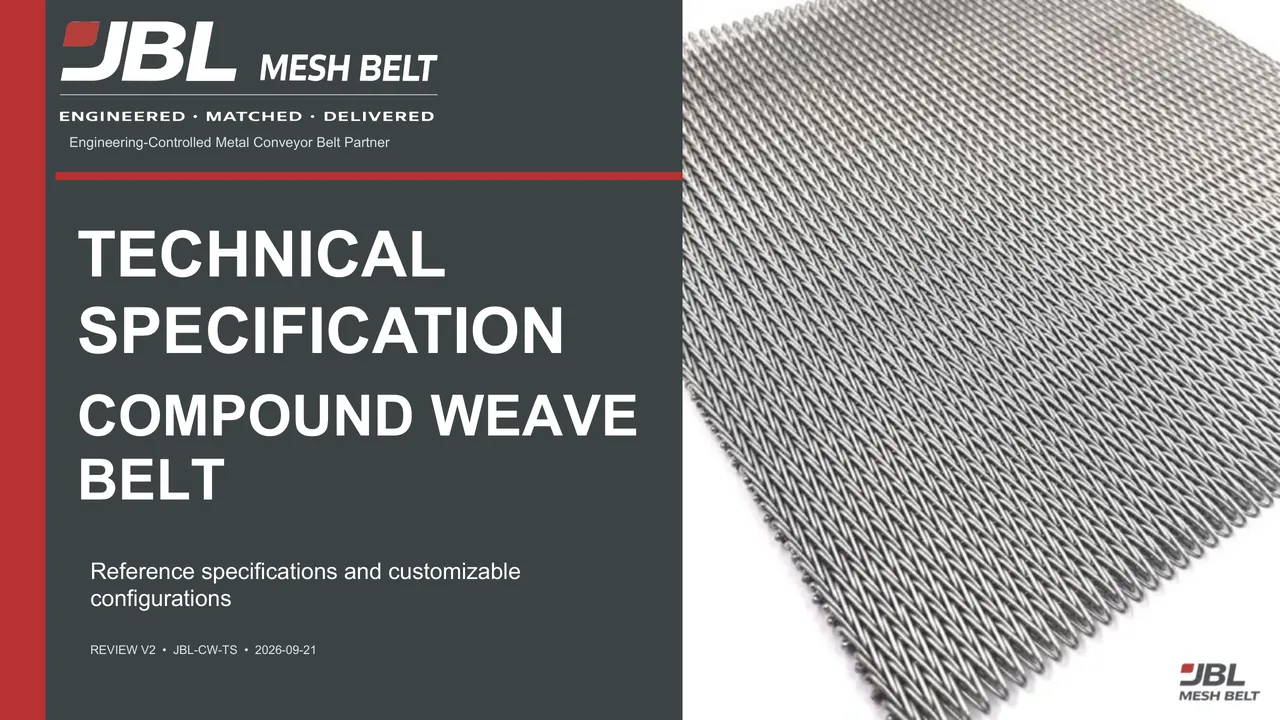

Compound Weave Belt Technical Specification
8 pages · flip through online · tap the right half for the next page
What you will find in this specification

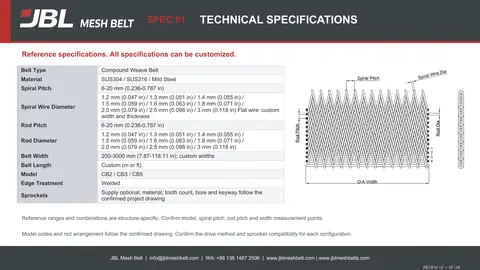

Full parameter tableMaterial, pitches, wire and rod sizes, width and models.Open page 5 →

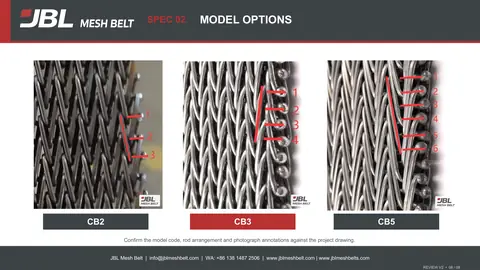

Three modelsCB2, CB3 and CB5 shown side by side.Open page 6 →

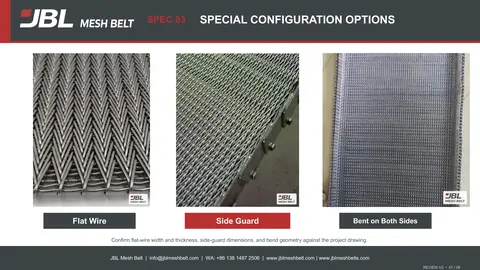

Special configurationsFlat wire, side guard, bent on both sides.Open page 7 →About this document

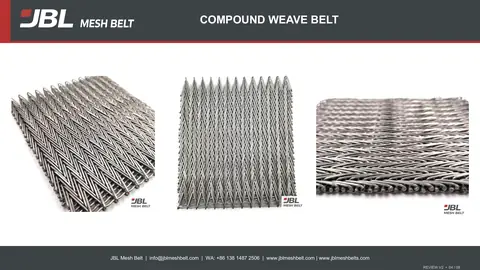

This 8-page technical specification describes the JBL Mesh Belt Compound Weave Belt, a specialized woven belt for food and industrial conveying that needs stable product support.
It lists materials, spiral and rod pitch, wire and rod diameter, belt width, the CB2, CB3 and CB5 models, the welded edge and special configurations such as flat wire, side guards and edges bent on both sides.
The model code, rod arrangement, drive method and sprocket compatibility are confirmed on the project drawing.

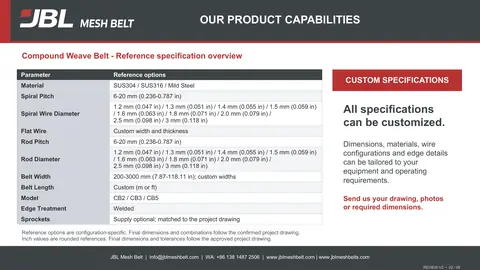

Compound Weave Belt reference specifications
| Parameter | Reference options |
|---|---|
| Material | SUS304 / SUS316 / mild steel |
| Spiral pitch | 6–20 mm |
| Spiral wire diameter | 1.2 / 1.3 / 1.4 / 1.5 / 1.6 / 1.8 / 2.0 / 2.5 / 3 mm; flat wire: custom width and thickness |
| Rod pitch | 6–20 mm |
| Rod diameter | 1.2 / 1.3 / 1.4 / 1.5 / 1.6 / 1.8 / 2.0 / 2.5 / 3 mm |
| Belt width | 200–3000 mm (7.87–118.11 in); custom |
| Belt length | Custom, specified in m or ft |
| Model | CB2 / CB3 / CB5 |
| Edge treatment | Welded |
| Sprockets | Optional; material, tooth count, bore and keyway per drawing |
Reference options from the 2026-10-02 public specification, pages 2 and 5. Final dimensions and combinations follow the confirmed project drawing. See page 5 →
Questions this document answers
+Which models does the Compound Weave Belt specification show?
CB2, CB3 and CB5 (page 6). The model code and rod arrangement are confirmed against the project drawing.
+What pitches and widths are listed?
Spiral and rod pitch from 6 to 20 mm, and belt widths from 200 to 3000 mm (page 5).
+Which special configurations are shown?
Flat wire, side guards and edges bent on both sides (page 7).

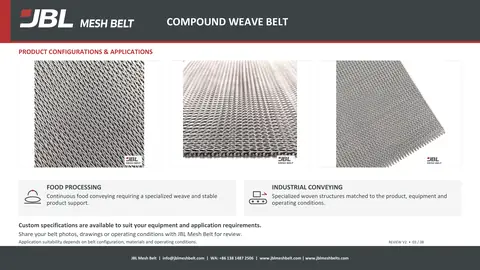

+Which applications are covered?
Continuous food conveying that needs a specialized weave and stable product support, and industrial conveying matched to the product and equipment (page 3).

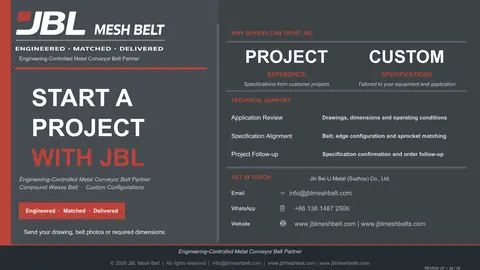

+What should I send for a review?
Photos of your current belt or your drawing, and what the belt carries. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 8).
Does your process need a specialized woven belt with suitable product support?
JBL Mesh Belt's Compound Weave Belt is an option for food processing and industrial conveying where the weave arrangement is important to the application.
The right configuration depends on your product, equipment design and operating conditions.
We review the mesh structure, wire dimensions, rod arrangement and belt width with you before confirming the specification.
Materials, dimensions and structural details can be customized to meet project requirements. Final combinations and the drive arrangement follow the confirmed drawing.
Send us photos of your existing belt, technical drawings and information about the product being conveyed.
JBL Mesh Belt supports structural evaluation and specification alignment, helping you make a more informed choice for a new conveyor or replacement.
