Compound Weave Belt Production Process and Quality Control
12 pages · flip through online · tap the right half for the next page
What you will find in this book
Gate 01 · Raw material incoming inspectionWire coils checked and batch-tagged by specification.Open page 2 →
Gate 02 · Spiral wire QA inspectionWire diameter, spiral thickness and pitch measured.Open page 3 →
Gate 03 · Final dimension checkSpiral pitch, wire diameter and overall width measured.Open page 4 →
Gate 04 · Surface & profile checkFlattened spiral surface inspected.Open page 7 →
Gate 05 · Welding quality checkWelds inspected along the belt.Open page 8 →
Gate 06 · Packing for shipmentPacking list checked; belt crated.Open page 9 →

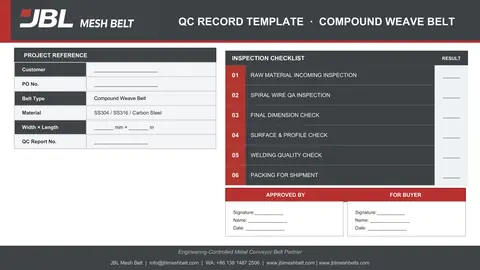

QC record templateProject reference, belt type, material, width and length, one result line for each gate, and signature fields for approval and for the buyerOpen page 11 →About this document
This 12-page book shows how the JBL Mesh Belt Compound Weave Belt is checked: the 6 inspection gates from raw material incoming inspection to packing for shipment, with the QC record template at the end.
Because the product sits on the flattened spiral surface, the surface and profile are inspected before the welds and packing.
The photos show the checks being made. Readings visible in them are examples from individual projects, not specifications; each belt is checked against its confirmed project drawing.
Compound Weave Belt: inspection gates
| Gate | What is checked | Pages |
|---|---|---|

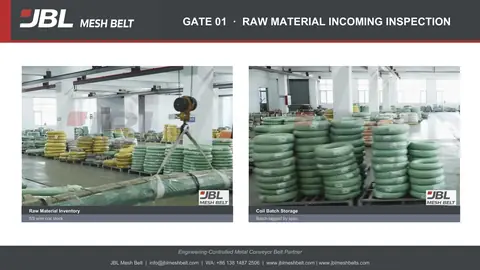

| 01 · Raw material incoming inspection | Wire coils checked and batch-tagged by specification. | 2 |

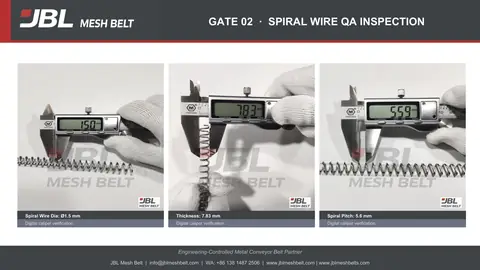

| 02 · Spiral wire QA inspection | Wire diameter, spiral thickness and pitch measured. | 3 |

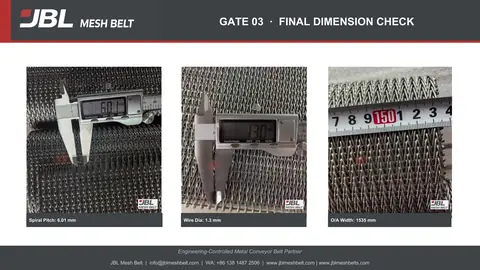

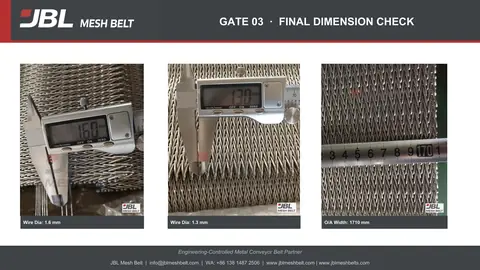

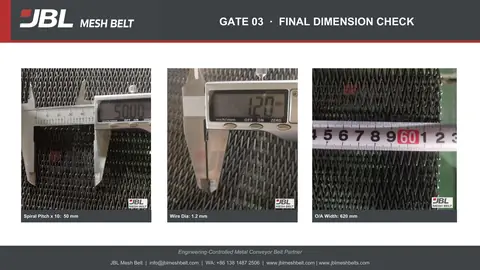

| 03 · Final dimension check | Spiral pitch, wire diameter and overall width measured. | 4–6 |

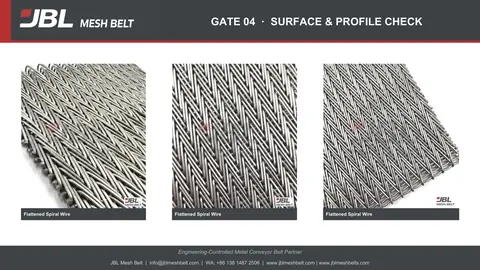

| 04 · Surface & profile check | Flattened spiral surface inspected. | 7 |

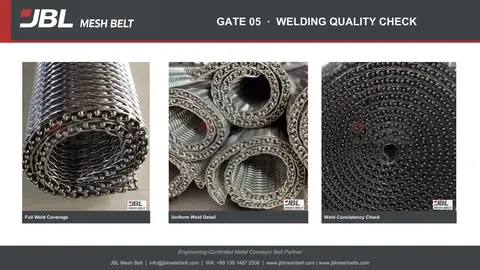

| 05 · Welding quality check | Welds inspected along the belt. | 8 |

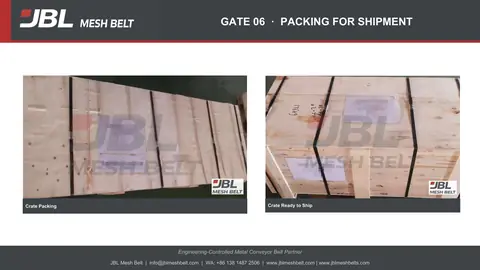

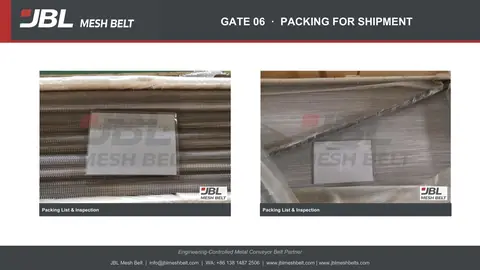

| 06 · Packing for shipment | Packing list checked; belt crated. | 9–10 |
From the JBL Mesh Belt production process and quality control book (without-equipment version). Readings in the photos are project examples; your belt is checked against your confirmed drawing. See page 11 →
Questions this document answers
+Which inspection gates does the Compound Weave Belt quality control book show?
6 gates: raw material incoming inspection; spiral wire QA inspection; final dimension check; surface & profile check; welding quality check; packing for shipment (pages 2–10).
+Why is the surface of a compound weave belt inspected?
The product sits on the flattened spiral surface, so Gate 04 inspects the surface and profile (page 7).
+Which dimensions are measured?
Spiral pitch, wire diameter and overall width (Gate 03, pages 4–6).
+What does the QC record template include?
Project reference, belt type, material, width and length, one result line for each gate, and signature fields for approval and for the buyer (page 11).
+What should I send to review this process against my project?
Photos of your current belt or your drawing, and what it carries. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 12).
How is a Compound Weave Belt checked before it ships?
This 12-page process book follows the belt through 6 inspection gates, from raw material incoming inspection to packing for shipment, and ends with the QC record template.
Each gate shows what is measured or checked at that stage, so you can see what to ask for in your own inspection plan.
Send us photos of your current belt, equipment drawings and the product you need to convey, and we will confirm which checks apply to your project.
