Side-Driven Belt Technical Specification
10 pages · flip through online · tap the right half for the next page
What you will find in this specification

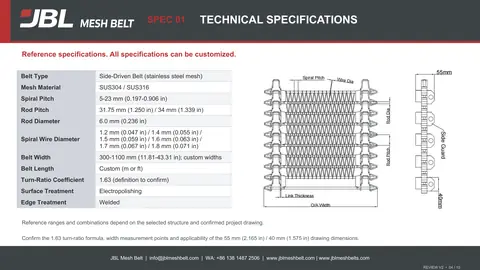

Stainless steel meshFull parameters for the SUS304 / SUS316 version.Open page 4 →

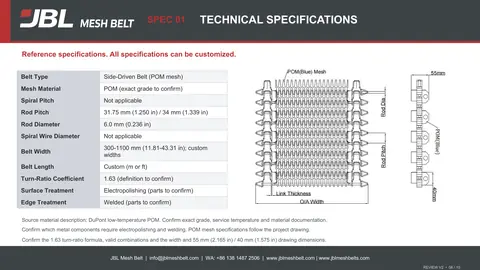

POM mesh optionPlastic mesh version; grade confirmed per project.Open page 6 →

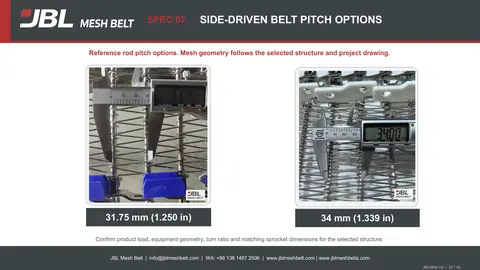

Two rod pitches31.75 mm and 34 mm.Open page 7 →

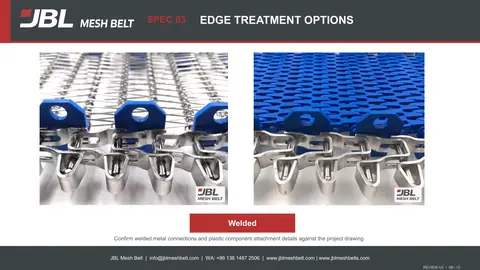

Welded edgeWelded metal connections; plastic parts per drawing.Open page 8 →

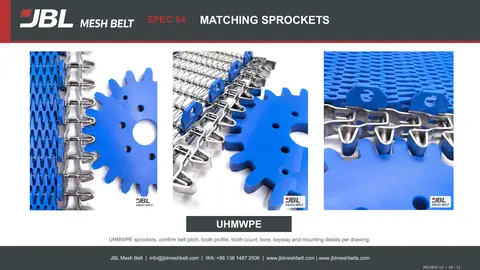

UHMWPE sprocketsMatched to belt pitch, tooth profile, bore and keyway.Open page 9 →About this document
This 10-page technical specification describes the JBL Mesh Belt Side-Driven Belt for conveyors where a side-drive arrangement and equipment integration are central to belt selection.
It gives two mesh options — stainless steel spiral mesh and POM plastic mesh — with rod pitch, rod and wire sizes, belt width, edge treatment and UHMWPE matching sprockets.
Drive interface, installation dimensions and the turn ratio basis are confirmed against the project drawing.

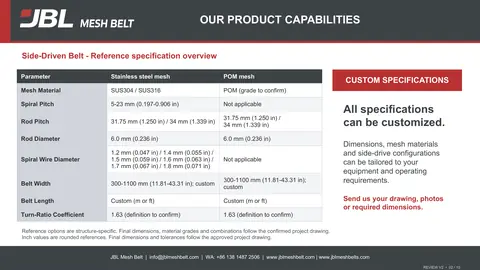

Side-Driven Belt reference specifications
| Parameter | Stainless steel mesh | POM mesh |
|---|---|---|
| Mesh material | SUS304 / SUS316 | POM (exact grade confirmed per project) |
| Spiral pitch | 5–23 mm | Not applicable |
| Rod pitch | 31.75 / 34 mm | 31.75 / 34 mm |
| Rod diameter | 6.0 mm | 6.0 mm |
| Spiral wire diameter | 1.2 / 1.4 / 1.5 / 1.6 / 1.7 / 1.8 mm | Not applicable |
| Belt width | 300–1100 mm; custom | 300–1100 mm; custom |
| Belt length | Custom (m or ft) | Custom (m or ft) |
| Surface treatment | Electropolishing | Metal parts confirmed per project |
| Edge treatment | Welded | Welded metal parts confirmed per project |
| Turn ratio | Confirmed per project | Confirmed per project |
Reference options from the 2026-10-02 public specification, pages 2, 4 and 6. Final dimensions and combinations follow the confirmed project drawing. See page 4 →
Questions this document answers
+Which mesh options does the Side-Driven Belt specification show?

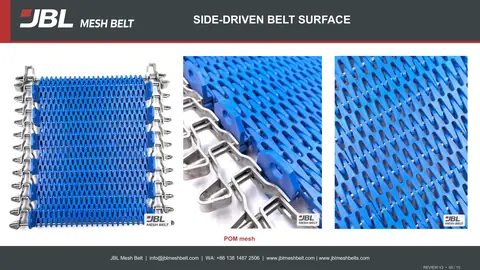

A stainless steel spiral mesh in SUS304 or SUS316 (page 4) and a POM plastic mesh whose exact grade, service temperature and documentation are confirmed per project (pages 5–6).
+What rod pitches are listed?
31.75 mm and 34 mm (page 7), both with a 6.0 mm rod.
+What belt widths are covered?
Reference widths from 300 to 1100 mm, with custom widths available (page 4).
+Which sprockets match this belt?
UHMWPE sprockets, with belt pitch, tooth profile, tooth count, bore, keyway and mounting confirmed per drawing (page 9).
+What should I send for a review?

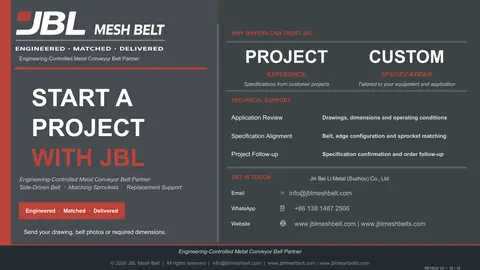

Photos or a drawing of the drive side and equipment interface, and what the line does. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 10).
Does your conveyor rely on a side-drive arrangement?
JBL Mesh Belt's Side-Driven Belt is designed for applications where drive configuration and equipment integration are central to belt selection.

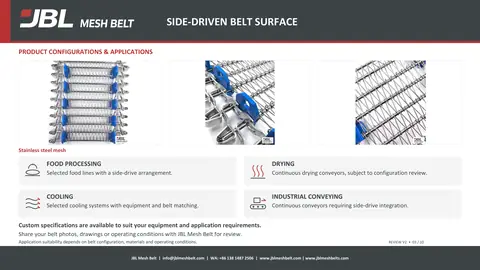

Depending on the configuration, applications include food processing, drying, selected cooling processes and industrial conveying.
Before ordering, the belt structure, drive interface, installation dimensions and operating conditions need to be reviewed together.
JBL Mesh Belt supports this review and helps you align the critical specifications with your equipment.
Dimensions, materials and configuration details can be customized, with final selections based on the confirmed project drawing.
Share your equipment drawings, existing belt photos and application requirements with us.
Whether you are building new equipment or replacing a belt, we help you evaluate the configuration before making a purchasing decision.
