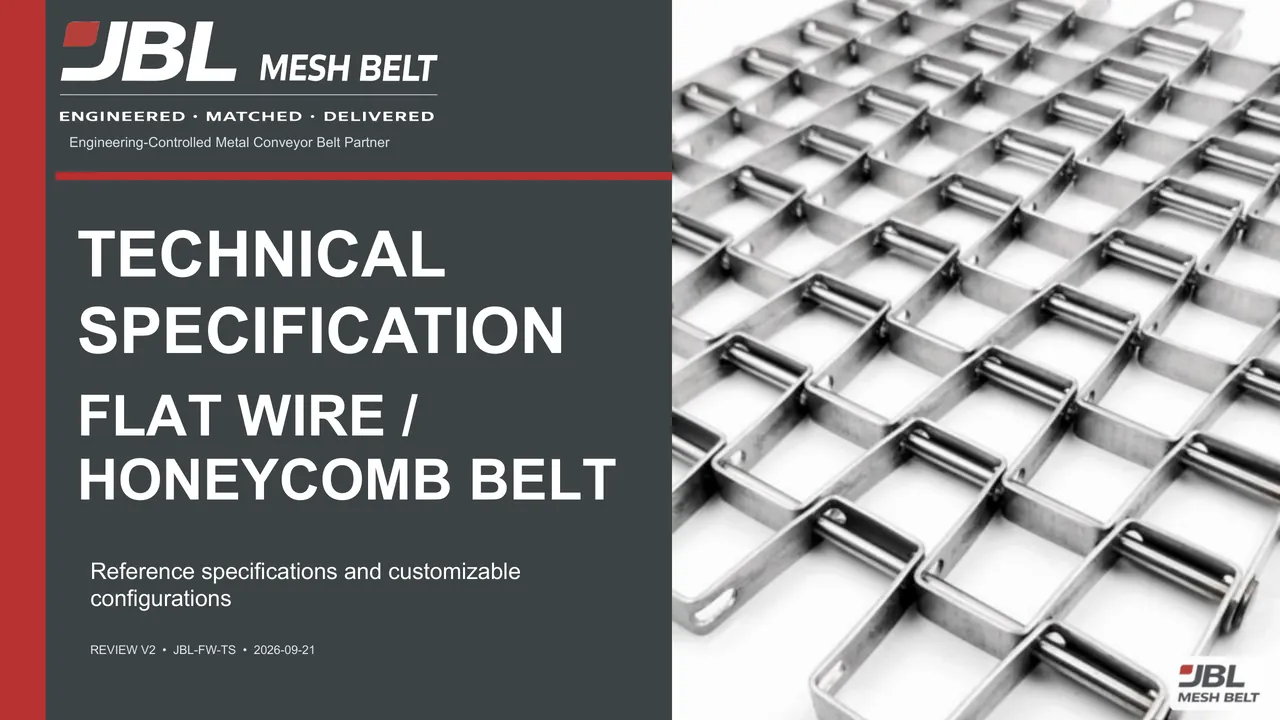

Flat Wire / Honeycomb Belt Technical Specification
13 pages · flip through online · tap the right half for the next page
What you will find in this specification

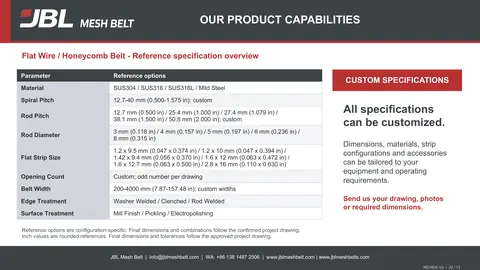

Full parameter tableMaterials, pitches, rod and strip sizes, width, edges and accessories.Open page 5 →

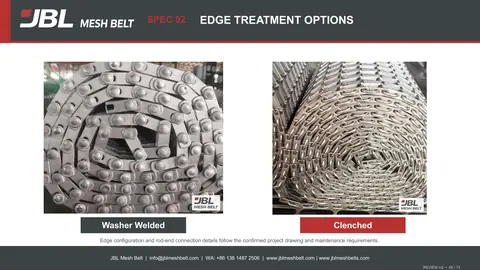

Three edge treatmentsWasher welded, clenched and rod welded.Open page 6 →

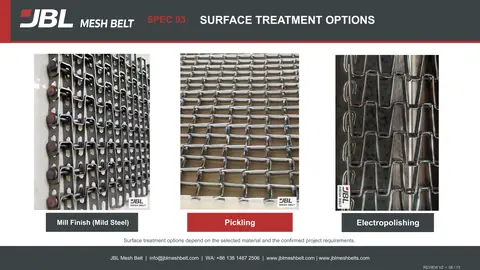

Surface optionsMill finish (mild steel), pickling and electropolishing.Open page 8 →

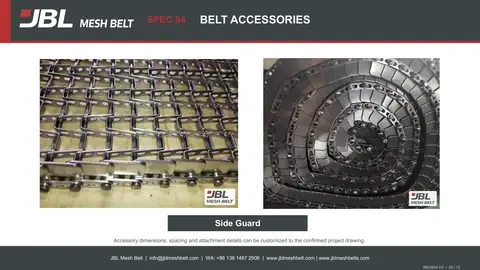

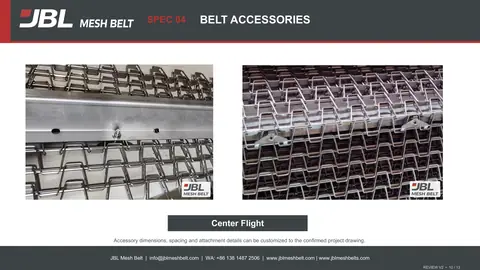

Side guard and center flightAccessories sized to the drawing.Open page 9 →

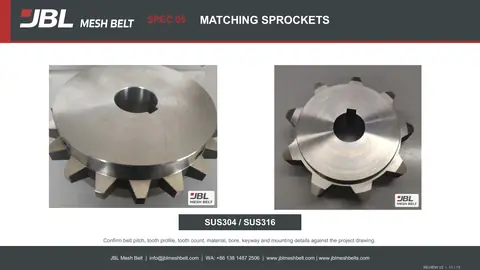

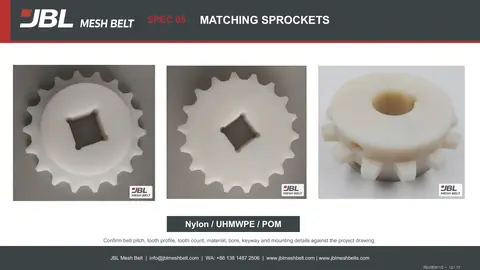

Matching sprocketsStainless steel or nylon, UHMWPE and POM.Open page 11 →About this document

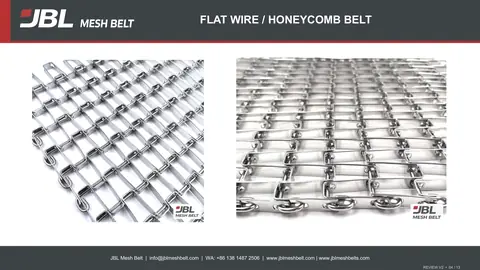

This 13-page technical specification describes the JBL Mesh Belt Flat Wire / Honeycomb Belt for cooling, drying, baking, thermal processing, food and industrial conveying.
It lists materials, spiral and rod pitch, rod diameter, six flat strip sizes, the odd opening count, belt width, edge and surface treatments, side guards, center flights and matching sprockets.
Thermal applications require a material and temperature review; final dimensions follow the confirmed project drawing.

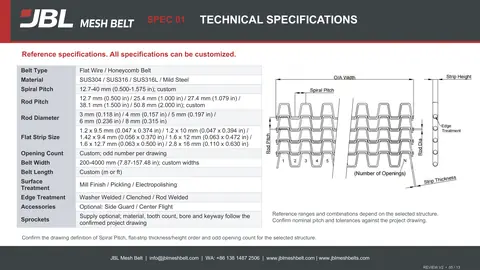

Flat Wire / Honeycomb Belt reference specifications
| Parameter | Reference options |
|---|---|
| Material | SUS304 / SUS316 / SUS316L / mild steel |
| Spiral pitch | 12.7–40 mm; custom |
| Rod pitch | 12.7 / 25.4 / 27.4 / 38.1 / 50.8 mm; custom |
| Rod diameter | 3 / 4 / 5 / 6 / 8 mm |
| Flat strip size (thickness × height) | 1.2 × 9.5 / 1.2 × 10 / 1.42 × 9.4 / 1.6 × 12 / 1.6 × 12.7 / 2.8 × 16 mm |
| Opening count | Odd number per drawing |
| Belt width | 200–4000 mm (7.87–157.48 in); custom |
| Belt length | Custom, specified in m or ft |
| Surface treatment | Mill finish / pickling / electropolishing |
| Edge treatment | Washer welded / clenched / rod welded |
| Accessories | Side guard / center flight (optional) |
| Sprockets | Optional; material, tooth count, bore and keyway per drawing |
Reference options from the 2026-10-02 public specification, pages 2 and 5. Strip thickness and height follow the order shown on the drawing. Final dimensions and combinations follow the confirmed project drawing. See page 5 →
Questions this document answers
+Which flat strip sizes does the specification list?
1.2 × 9.5, 1.2 × 10, 1.42 × 9.4, 1.6 × 12, 1.6 × 12.7 and 2.8 × 16 mm (page 5). The thickness and height order is confirmed on the drawing.
+Which applications are covered?

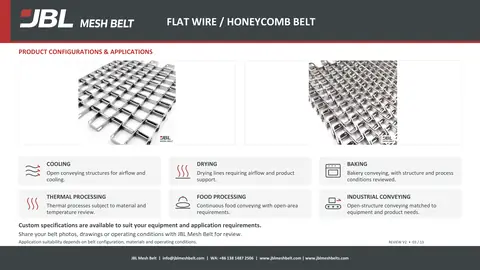

Cooling, drying, baking, thermal processing, food conveying with open-area requirements and industrial conveying (page 3). Thermal processes are subject to a material and temperature review.
+Which edge treatments are shown?

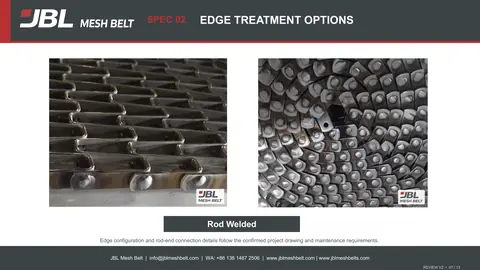

Washer welded, clenched and rod welded edges (pages 6–7).
+What surface treatments are available?
Mill finish for mild steel, pickling and electropolishing, depending on the material (page 8).
+What should I send for a review?
The product and process (cooling, drying or baking) and photos or a drawing of the belt and drive. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 13).
