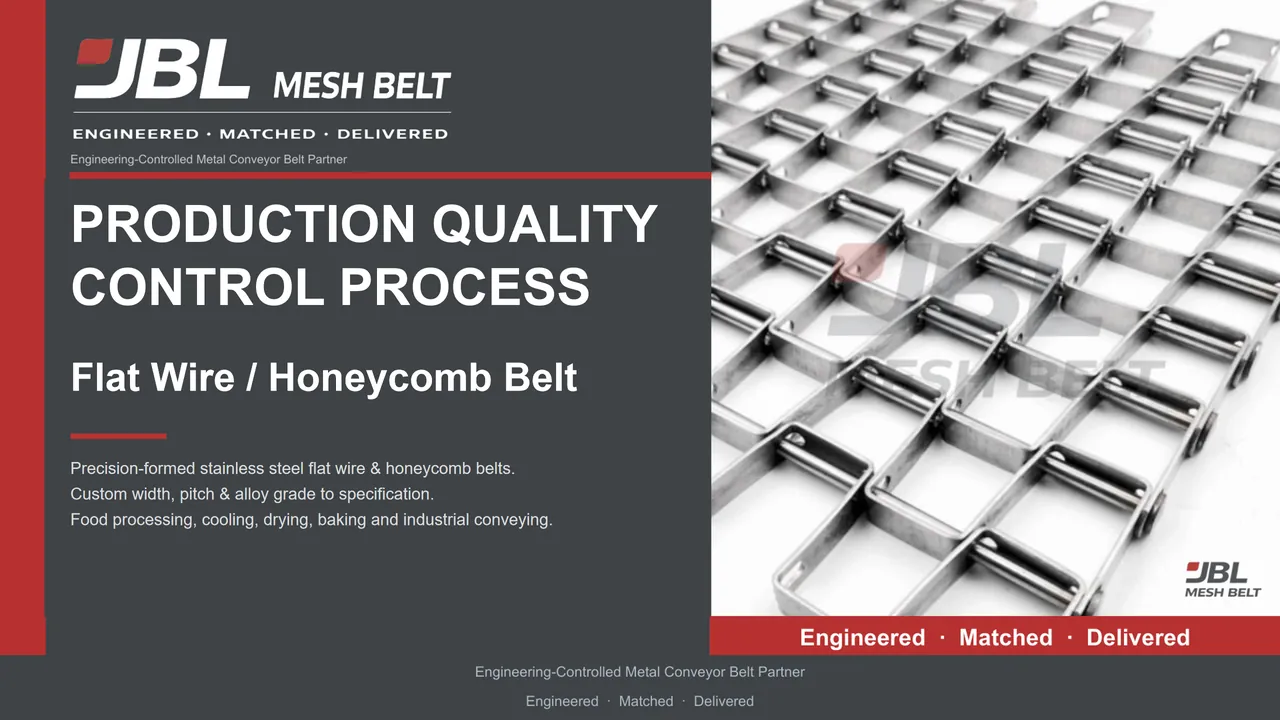

Flat Wire / Honeycomb Belt Production Process and Quality Control
16 pages · flip through online · tap the right half for the next page
What you will find in this book
Gate 01 · Raw material incoming inspectionMaterial checked on arrival and stored by batch.Open page 2 →

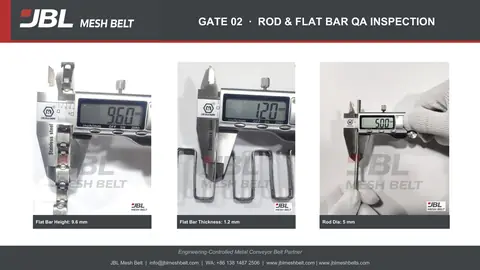

Gate 02 · Rod & flat bar QA inspectionFlat bar height, flat bar thickness and rod diameter measured.Open page 3 →

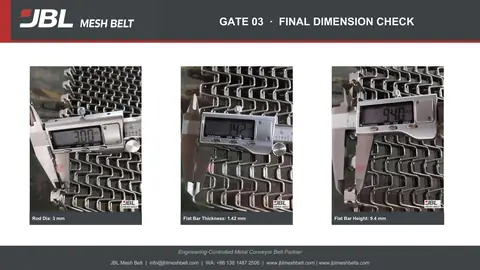

Gate 03 · Final dimension checkFlat bar size, rod diameter, rod pitch, spiral pitch and overall width measured on the finished belt.Open page 4 →

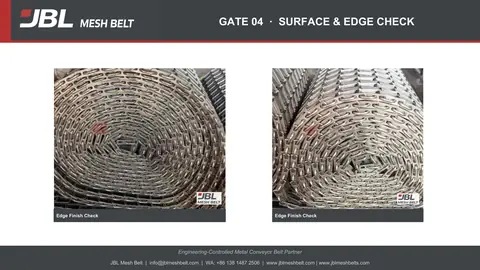

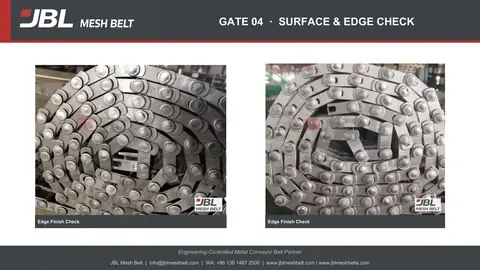

Gate 04 · Surface & edge checkEdges and surface finish inspected along the belt.Open page 8 →

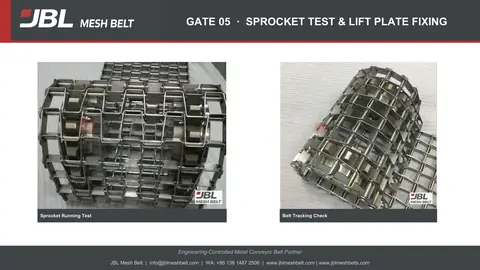

Gate 05 · Sprocket test & lift plate fixingLift plates fixed where specified; belt run on its sprocket and checked for tracking.Open page 10 →

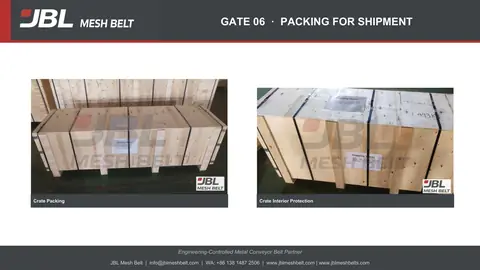

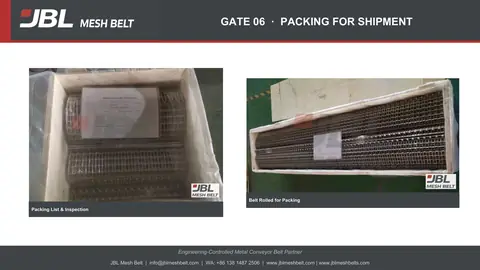

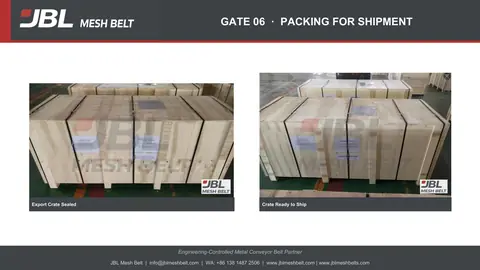

Gate 06 · Packing for shipmentPacking list checked; belt rolled and crated.Open page 12 →
QC record templateProject reference, belt type, material, width and length, one result line for each gate, and signature fields for approval and for the buyerOpen page 15 →About this document
This 16-page book shows how the JBL Mesh Belt Flat Wire / Honeycomb Belt is checked: the 6 inspection gates from raw material incoming inspection to packing for shipment, with the QC record template at the end.
Flat strip and rods are measured, the finished belt is measured again, and the belt is run on its sprocket with a tracking check before packing.
The photos show the checks being made. Readings visible in them are examples from individual projects, not specifications; each belt is checked against its confirmed project drawing.
Flat Wire / Honeycomb Belt: inspection gates
| Gate | What is checked | Pages |
|---|---|---|

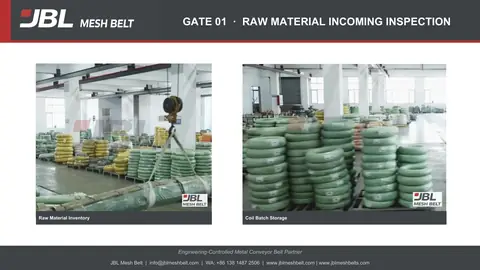

| 01 · Raw material incoming inspection | Material checked on arrival and stored by batch. | 2 |
| 02 · Rod & flat bar QA inspection | Flat bar height, flat bar thickness and rod diameter measured. | 3 |

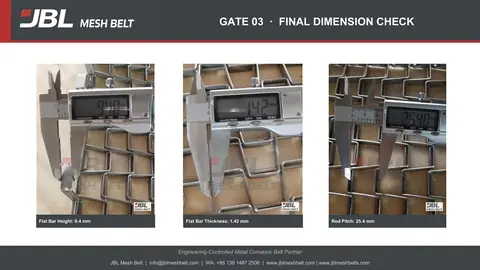

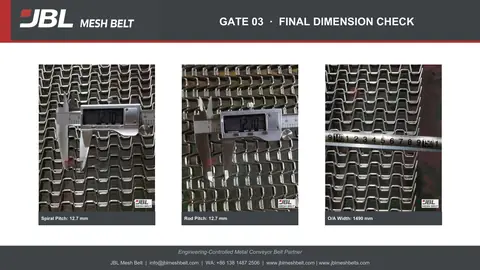

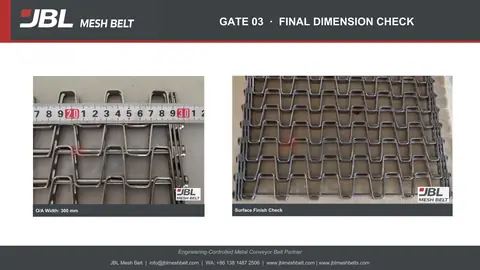

| 03 · Final dimension check | Flat bar size, rod diameter, rod pitch, spiral pitch and overall width measured on the finished belt. | 4–7 |
| 04 · Surface & edge check | Edges and surface finish inspected along the belt. | 8–9 |

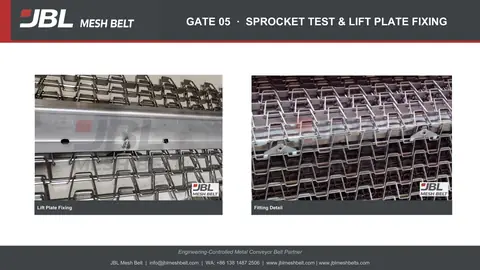

| 05 · Sprocket test & lift plate fixing | Lift plates fixed where specified; belt run on its sprocket and checked for tracking. | 10–11 |
| 06 · Packing for shipment | Packing list checked; belt rolled and crated. | 12–14 |
From the JBL Mesh Belt production process and quality control book (without-equipment version). Readings in the photos are project examples; your belt is checked against your confirmed drawing. See page 15 →
Questions this document answers
+Which inspection gates does the Flat Wire / Honeycomb Belt quality control book show?
6 gates: raw material incoming inspection; rod & flat bar QA inspection; final dimension check; surface & edge check; sprocket test & lift plate fixing; packing for shipment (pages 2–14).
+Is belt tracking checked before a flat wire belt ships?
Yes. Gate 05 runs the belt on its sprocket and includes a belt tracking check (pages 10–11).
+Which dimensions are measured?
Flat bar height and thickness, rod diameter, rod pitch, spiral pitch and overall width (Gates 02–03, pages 3–7).

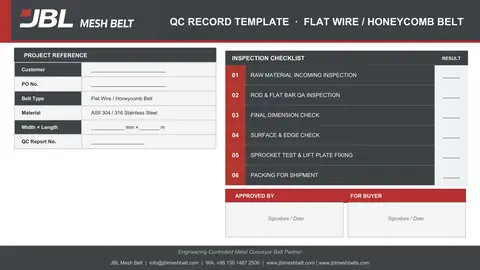

+What does the QC record template include?
Project reference, belt type, material, width and length, one result line for each gate, and signature fields for approval and for the buyer (page 15).
+What should I send to review this process against my project?
Photos of your belt and drive, or your drawing, and what the line does. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 16).
How is a Flat Wire / Honeycomb Belt checked before it ships?
This 16-page process book follows the belt through 6 inspection gates, from raw material incoming inspection to packing for shipment, and ends with the QC record template.
Each gate shows what is measured or checked at that stage, so you can see what to ask for in your own inspection plan.
Send us photos of your current belt, equipment drawings and the product you need to convey, and we will confirm which checks apply to your project.
