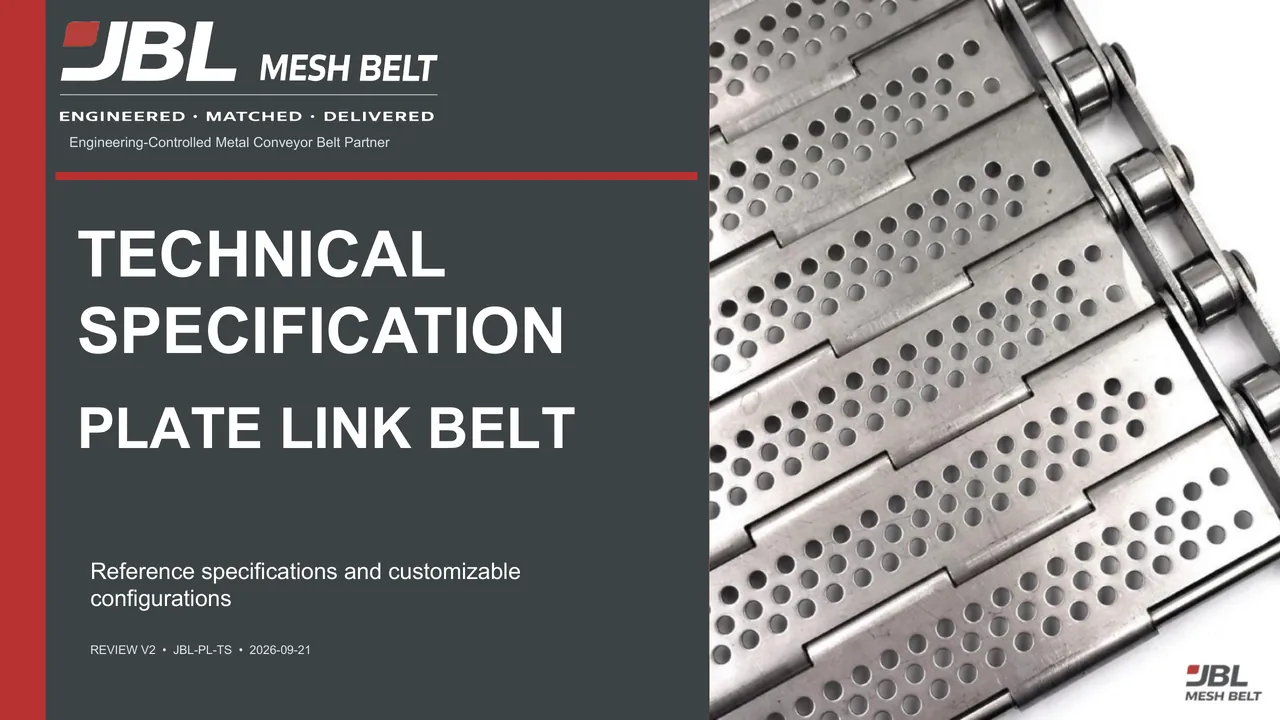

Plate Link Belt Technical Specification
15 pages · flip through online · tap the right half for the next page
What you will find in this specification

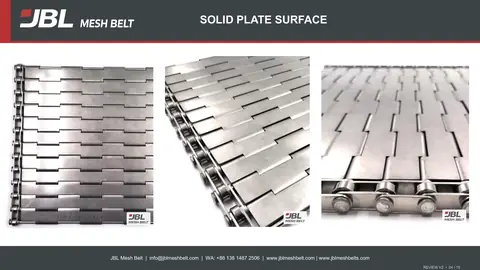

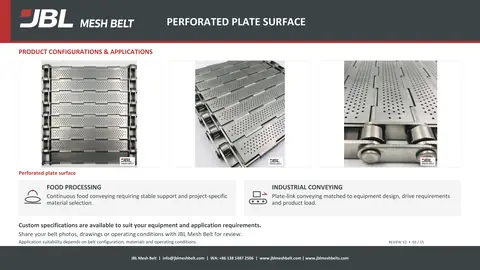

Perforated and solid platesBoth plate surfaces shown.Open page 3 →
Full parameter tablePlate, rod and chain options on one page.Open page 5 →

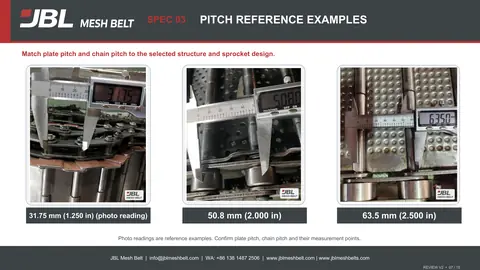

Pitch reference examples31.75, 50.8 and 63.5 mm.Open page 7 →

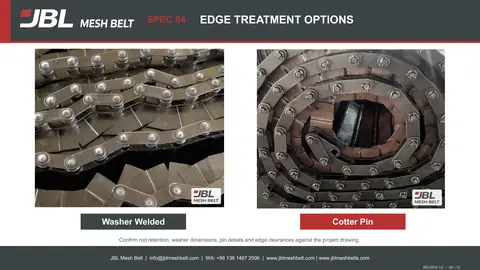

Edge treatmentWasher welded or cotter pin.Open page 8 →

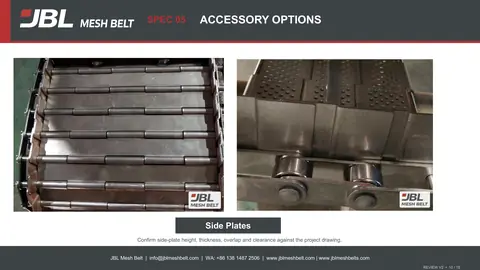

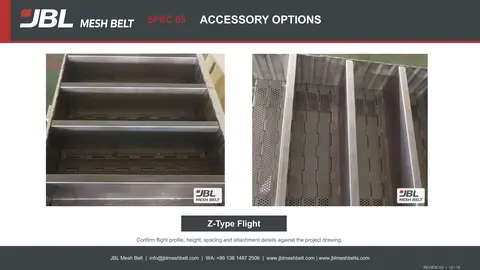

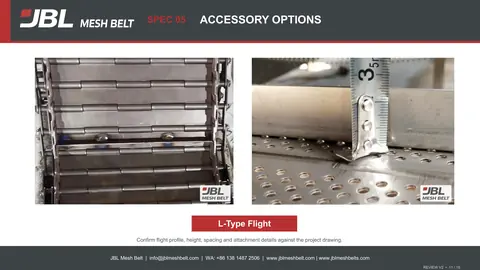

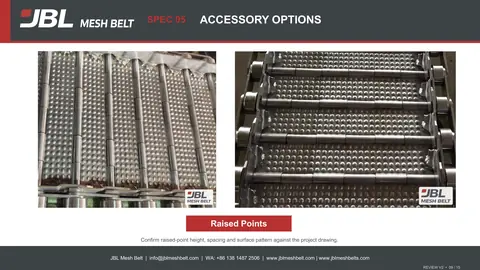

Accessory optionsRaised points, side plates, L-type and Z-type flights.Open page 9 →

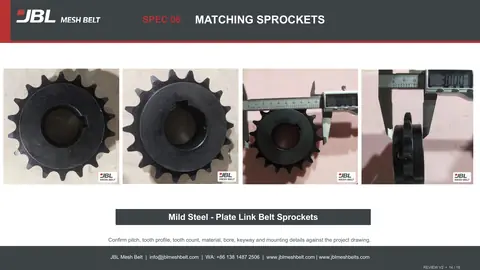

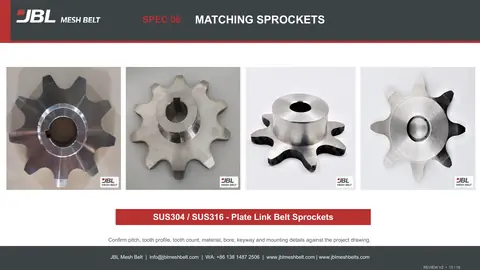

Matching sprocketsStainless steel or mild steel.Open page 13 →About this document
This 15-page technical specification describes the JBL Mesh Belt Plate Link Belt with solid or perforated plate surfaces for food processing and industrial conveying.
It lists materials, plate pitch and thickness, rod diameter, chain pitch, perforation, belt width, edge treatment, accessories such as raised points, side plates and L-type or Z-type flights, and matching sprockets.
Plate pitch, chain pitch and the sprocket are matched as one system; final dimensions follow the confirmed project drawing.

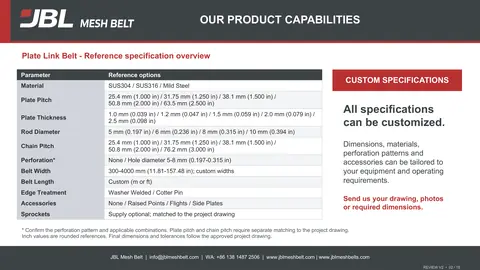

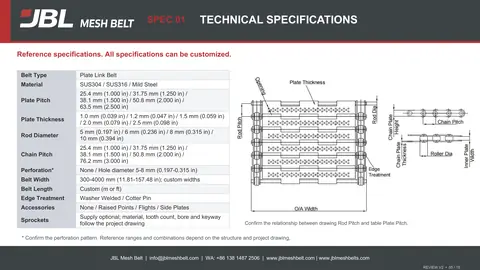

Plate Link Belt reference specifications
| Parameter | Reference options |
|---|---|

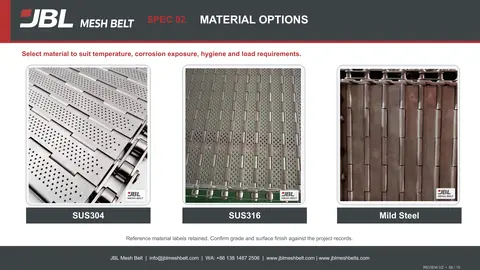

| Material | SUS304 / SUS316 / mild steel |
| Plate pitch | 25.4 / 31.75 / 38.1 / 50.8 / 63.5 mm |
| Plate thickness | 1.0 / 1.2 / 1.5 / 2.0 / 2.5 mm |
| Rod diameter | 5 / 6 / 8 / 10 mm |
| Chain pitch | 25.4 / 31.75 / 38.1 / 50.8 / 76.2 mm |
| Perforation | None / hole diameter 5–8 mm |
| Belt width | 300–4000 mm (11.81–157.48 in); custom |
| Belt length | Custom, specified in m or ft |
| Edge treatment | Washer welded / cotter pin |
| Accessories | None / raised points / flights / side plates |
| Sprockets | Optional; material, tooth count, bore and keyway per drawing |
Reference options from the 2026-10-02 public specification, pages 2 and 5. The perforation pattern and the relation between drawing rod pitch and plate pitch are confirmed per project. Final dimensions and combinations follow the confirmed project drawing. See page 5 →
Questions this document answers
+Which plate thicknesses and pitches does the specification list?
Plate thicknesses of 1.0, 1.2, 1.5, 2.0 and 2.5 mm, and plate pitches of 25.4, 31.75, 38.1, 50.8 and 63.5 mm (page 5).
+Are perforated plates available?
Yes. The specification lists no perforation or holes of 5–8 mm diameter, with the pattern confirmed per project (pages 3 and 5).
+Which accessories are shown?
Raised points, side plates, L-type flights and Z-type flights (pages 9–12).
+Which edge treatments are listed?
Washer welded and cotter pin (page 8).
+What should I send for a review?
Photos of the plates, chain and sprockets, or your drawing, and the product load. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 15).
Need a metal conveyor belt with a plate surface to support your product?
JBL Mesh Belt's Plate Link Belt serves food processing and industrial conveying applications, with configurations selected around the equipment and process.
We review plate dimensions, thickness, perforation requirements, chain pitch and the drive arrangement together with your operating conditions.
This helps clarify how the belt, chains and sprockets should work as a system.
Specifications can be customized, including materials, dimensions and relevant accessories. Final structural combinations follow your confirmed project drawing.
For new equipment or a replacement, send us belt photos, drawings and application details.
JBL Mesh Belt helps you align the critical specifications before ordering and keep clear configuration records for future repeat purchases.
