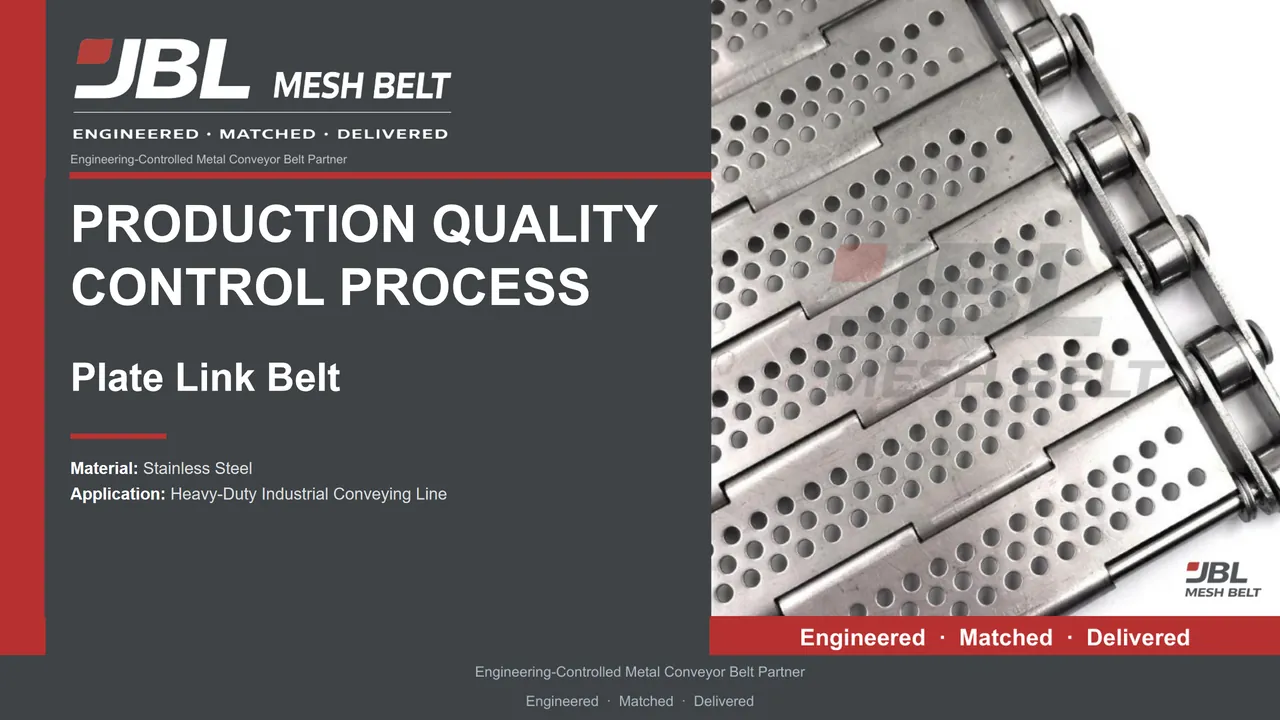

Plate Link Belt Production Process and Quality Control
13 pages · flip through online · tap the right half for the next page
What you will find in this book

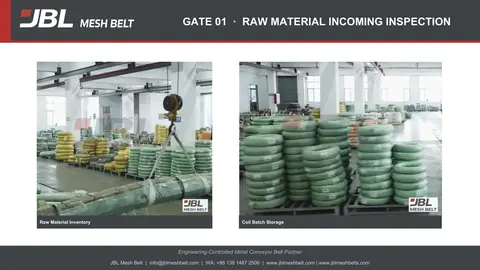

Gate 01 · Raw material incoming inspectionMaterial checked on arrival and stored by batch.Open page 2 →
Gate 02 · Chain component dimension checkRoller diameter, inner plate width and plate height measured.Open page 3 →
Gate 03 · Plate component checkPunched plates checked for hole and edge quality.Open page 4 →

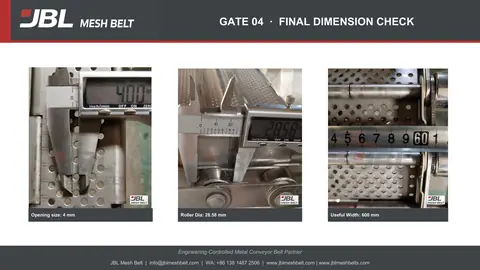

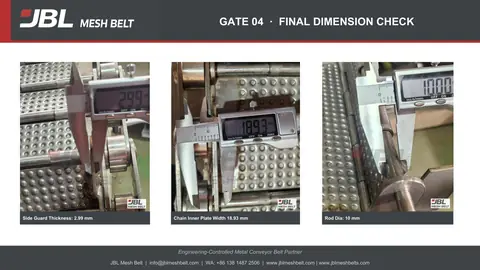

Gate 04 · Final dimension checkOpening size, roller diameter, useful width, side guard thickness, inner plate width and rod diameter measured.Open page 5 →

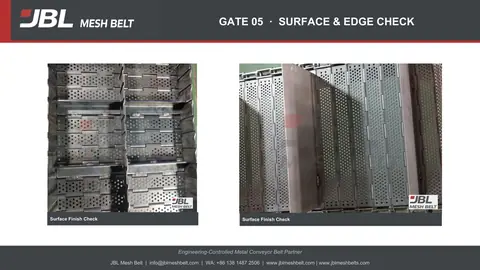

Gate 05 · Surface & edge checkPlate surfaces and chain edges inspected.Open page 7 →

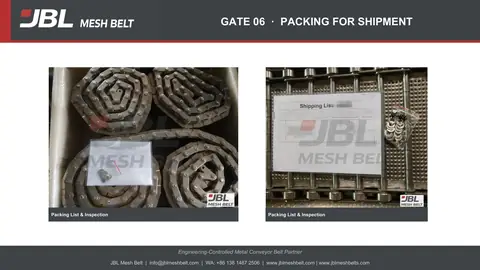

Gate 06 · Packing for shipmentPacking list checked; belt crated.Open page 10 →

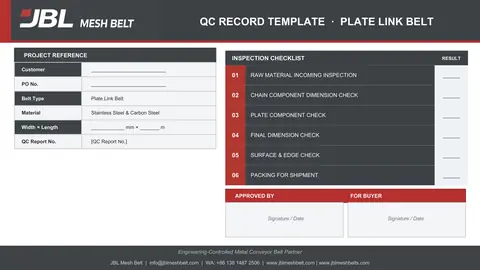

QC record templateProject reference, belt type, material, width and length, one result line for each gate, and signature fields for approval and for the buyerOpen page 12 →About this document
This 13-page book shows how the JBL Mesh Belt Plate Link Belt is checked: the 6 inspection gates from raw material incoming inspection to packing for shipment, with the QC record template at the end.
Heavy loads ride on the chain, so the chain components, the punched plates and the finished belt are each checked.
The photos show the checks being made. Readings visible in them are examples from individual projects, not specifications; each belt is checked against its confirmed project drawing.
Plate Link Belt: inspection gates
| Gate | What is checked | Pages |
|---|---|---|
| 01 · Raw material incoming inspection | Material checked on arrival and stored by batch. | 2 |
| 02 · Chain component dimension check | Roller diameter, inner plate width and plate height measured. | 3 |
| 03 · Plate component check | Punched plates checked for hole and edge quality. | 4 |
| 04 · Final dimension check | Opening size, roller diameter, useful width, side guard thickness, inner plate width and rod diameter measured. | 5–6 |
| 05 · Surface & edge check | Plate surfaces and chain edges inspected. | 7–9 |
| 06 · Packing for shipment | Packing list checked; belt crated. | 10–11 |
From the JBL Mesh Belt production process and quality control book (without-equipment version). Readings in the photos are project examples; your belt is checked against your confirmed drawing. See page 12 →
Questions this document answers
+Which inspection gates does the Plate Link Belt quality control book show?
6 gates: raw material incoming inspection; chain component dimension check; plate component check; final dimension check; surface & edge check; packing for shipment (pages 2–11).
+Are the punched plates checked?
Yes. Gate 03 checks the punched plates for hole and edge quality (page 4).
+What is measured on the finished plate link belt?
Opening size, roller diameter, useful width, side guard thickness, inner plate width and rod diameter (Gate 04, pages 5–6).
+What does the QC record template include?
Project reference, belt type, material, width and length, one result line for each gate, and signature fields for approval and for the buyer (page 12).
+What should I send to review this process against my project?
Photos of the plates, chain and sprockets, or your drawing. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 13).
How is a Plate Link Belt checked before it ships?
This 13-page process book follows the belt through 6 inspection gates, from raw material incoming inspection to packing for shipment, and ends with the QC record template.
Each gate shows what is measured or checked at that stage, so you can see what to ask for in your own inspection plan.
Send us photos of your current belt, equipment drawings and the product you need to convey, and we will confirm which checks apply to your project.
