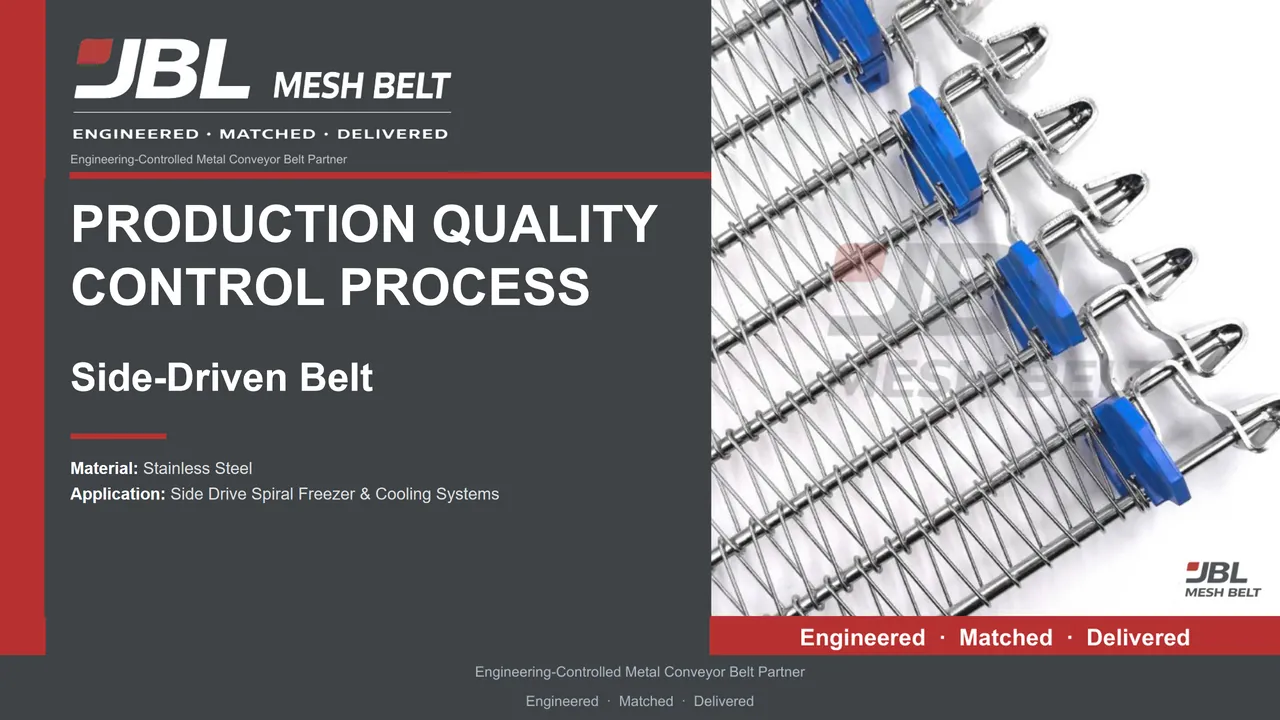

Side-Driven Belt Production Process and Quality Control
14 pages · flip through online · tap the right half for the next page
What you will find in this book

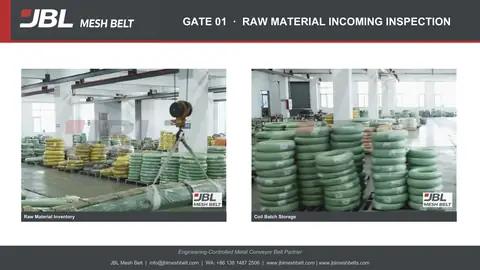

Gate 01 · Raw material incoming inspectionWire coils are checked on arrival and stored by batch.Open page 2 →

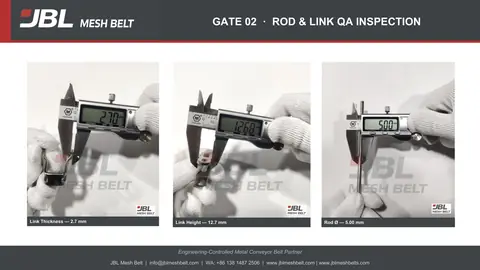

Gate 02 · Rod & link QA inspectionLink thickness, link height and rod diameter measured.Open page 3 →

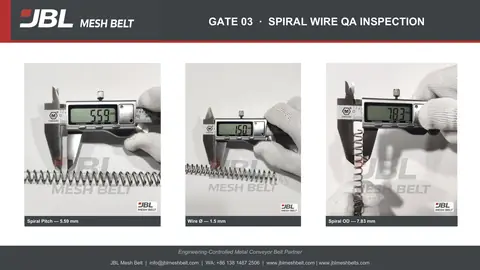

Gate 03 · Spiral wire QA inspectionSpiral pitch, wire diameter and outer diameter measured.Open page 4 →

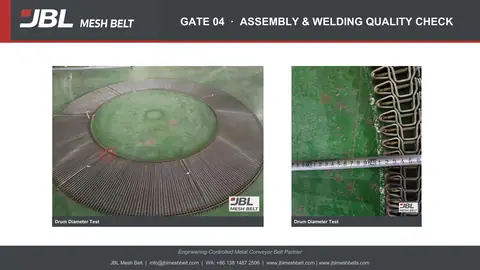

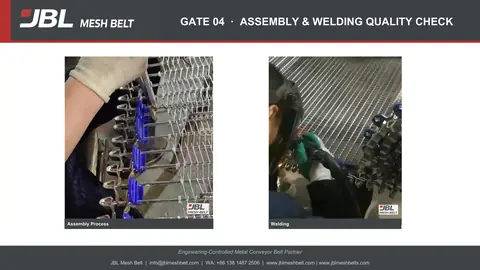

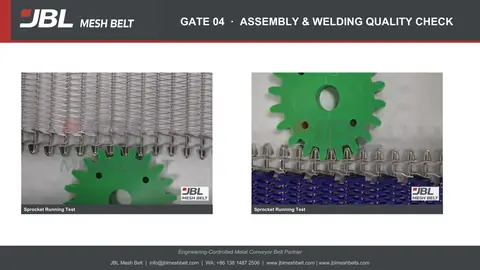

Gate 04 · Assembly & welding quality checkAssembly and welding, drum diameter test and sprocket running test.Open page 5 →

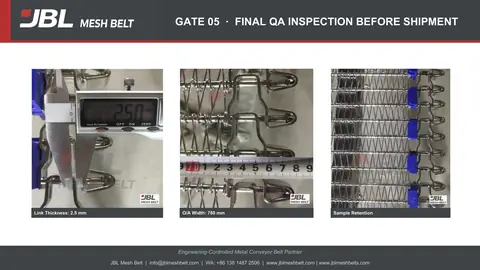

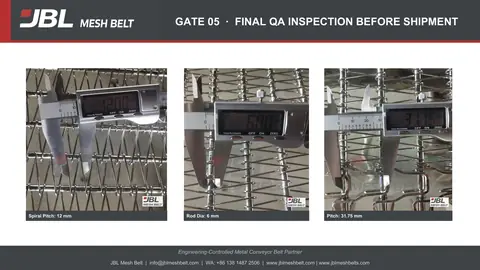

Gate 05 · Final QA inspection before shipmentSpiral pitch, rod diameter, pitch, link thickness and overall width measured; sample retained; plastic mesh belts checked for pitch and batch.Open page 8 →

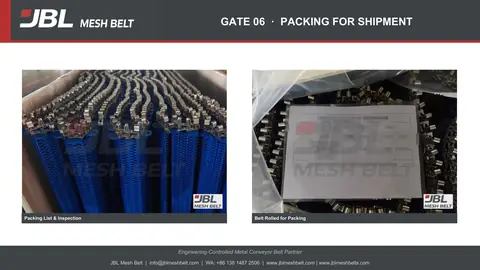

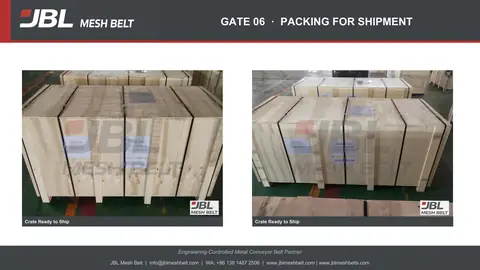

Gate 06 · Packing for shipmentPacking list checked; belt rolled and crated.Open page 11 →

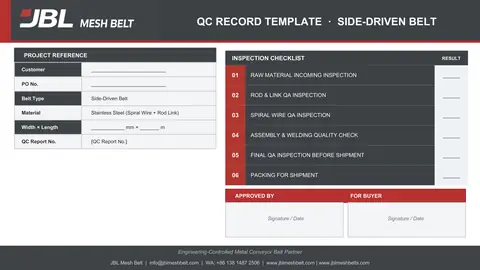

QC record templateProject reference, belt type, material, width and length, one result line for each gate, and signature fields for approval and for the buyerOpen page 13 →About this document
This 14-page book shows how the JBL Mesh Belt Side-Driven Belt is checked: the 6 inspection gates from raw material incoming inspection to packing for shipment, with the QC record template at the end.
After assembly and welding, the belt goes through a drum diameter test and a sprocket running test, and the final inspection covers both stainless and plastic mesh belts.
The photos show the checks being made. Readings visible in them are examples from individual projects, not specifications; each belt is checked against its confirmed project drawing.
Side-Driven Belt: inspection gates
| Gate | What is checked | Pages |
|---|---|---|
| 01 · Raw material incoming inspection | Wire coils are checked on arrival and stored by batch. | 2 |
| 02 · Rod & link QA inspection | Link thickness, link height and rod diameter measured. | 3 |
| 03 · Spiral wire QA inspection | Spiral pitch, wire diameter and outer diameter measured. | 4 |
| 04 · Assembly & welding quality check | Assembly and welding, drum diameter test and sprocket running test. | 5–7 |
| 05 · Final QA inspection before shipment | Spiral pitch, rod diameter, pitch, link thickness and overall width measured; sample retained; plastic mesh belts checked for pitch and batch. | 8–10 |
| 06 · Packing for shipment | Packing list checked; belt rolled and crated. | 11–12 |
From the JBL Mesh Belt production process and quality control book (without-equipment version). Readings in the photos are project examples; your belt is checked against your confirmed drawing. See page 13 →
Questions this document answers
+Which inspection gates does the Side-Driven Belt quality control book show?
6 gates: raw material incoming inspection; rod & link QA inspection; spiral wire QA inspection; assembly & welding quality check; final QA inspection before shipment; packing for shipment (pages 2–12).
+Is a side-driven belt run on its sprocket before shipment?
Yes. Gate 04 includes a sprocket running test after assembly and welding (pages 5–7).
+Are plastic mesh side-driven belts checked too?

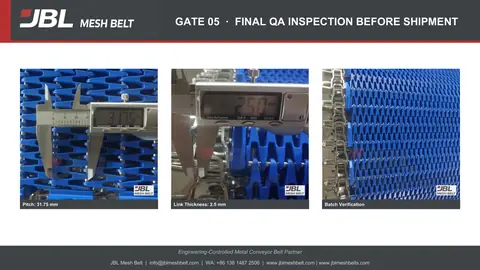

Yes. The final inspection checks pitch and link thickness on plastic mesh belts and verifies the batch (Gate 05, pages 8–10).
+What does the QC record template include?
Project reference, belt type, material, width and length, one result line for each gate, and signature fields for approval and for the buyer (page 13).
+What should I send to review this process against my project?
Photos or a drawing of the drive side and equipment interface. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 14).
How is a Side-Driven Belt checked before it ships?
This 14-page process book follows the belt through 6 inspection gates, from raw material incoming inspection to packing for shipment, and ends with the QC record template.
Each gate shows what is measured or checked at that stage, so you can see what to ask for in your own inspection plan.
Send us photos of your current belt, equipment drawings and the product you need to convey, and we will confirm which checks apply to your project.
