Z-Type Ladder Belt Technical Specification
13 pages · flip through online · tap the right half for the next page
What you will find in this specification

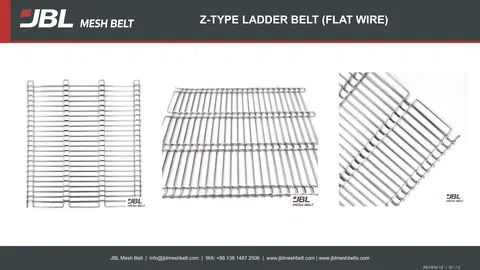

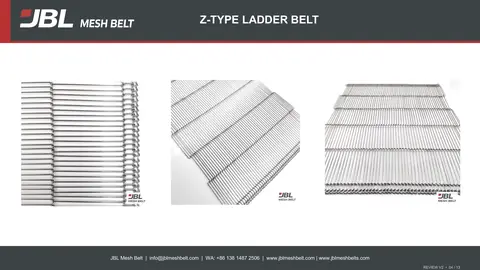

Round and flat wireBoth versions shown.Open page 4 →
Full parameter tablePitch, wire, spaces, loop width, width and edges.Open page 6 →

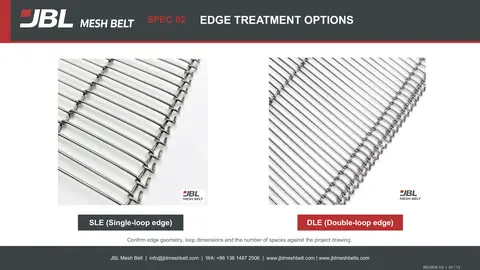

SLE or DLE edgeSingle-loop and double-loop edges.Open page 7 →

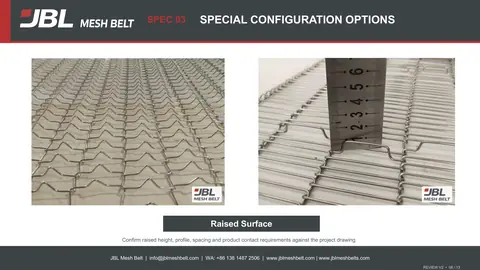

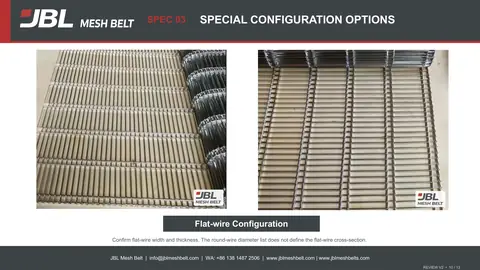

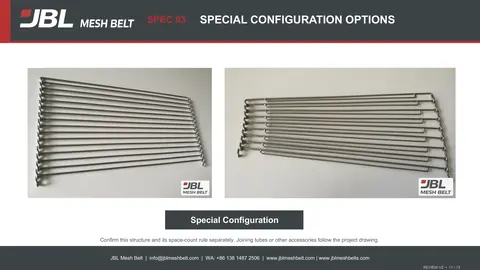

Special configurationsRaised surface, curved, flat-wire and special structures.Open page 8 →

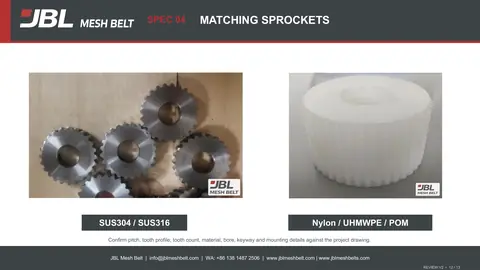

Matching sprocketsStainless steel or nylon, UHMWPE and POM.Open page 12 →About this document
This 13-page technical specification describes the JBL Mesh Belt Z-Type Ladder Belt for open, ladder-style conveying in food processing and industrial lines.
It lists material, pitch, wire diameter, the odd number of spaces, loop width, belt width, single-loop and double-loop edges, special configurations and matching sprockets.
Flat-wire, curved and special configurations are confirmed separately; final dimensions follow the confirmed project drawing.

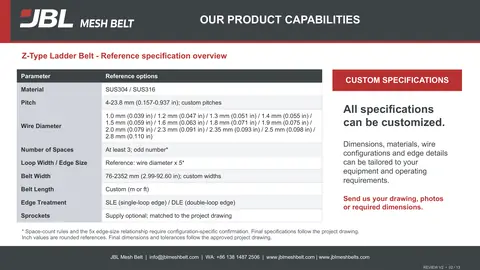

Z-Type Ladder Belt reference specifications
| Parameter | Reference options |
|---|---|
| Material | SUS304 / SUS316 |
| Pitch | 4–23.8 mm; custom |
| Wire diameter | 1.0 / 1.2 / 1.3 / 1.4 / 1.5 / 1.6 / 1.8 / 1.9 / 2.0 / 2.3 / 2.35 / 2.5 / 2.8 mm |
| Number of spaces | At least 3; odd number |
| Loop width / edge size | Reference: about 5 × wire diameter |
| Belt width | 76–2352 mm (2.99–92.60 in); custom |
| Belt length | Custom, specified in m or ft |
| Edge treatment | SLE (single-loop edge) / DLE (double-loop edge) |
| Sprockets | Optional; matched to the project drawing |

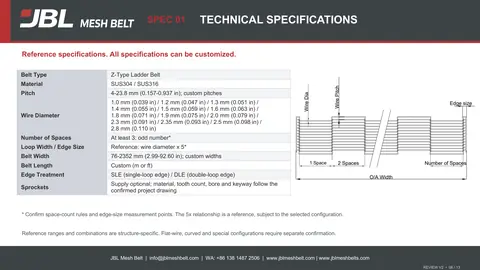

Reference options from the 2026-10-02 public specification, pages 2 and 6. Space-count rules and the edge-size relationship are confirmed for the selected configuration. Final dimensions and combinations follow the confirmed project drawing. See page 6 →
Questions this document answers
+How many spaces can a Z-type ladder belt have?
The specification lists at least three spaces, always an odd number (page 6); the exact rule is confirmed for the selected configuration.
+Which wire diameters and pitches are listed?
Wire diameters from 1.0 to 2.8 mm and pitches from 4 to 23.8 mm (page 6).
+What is the difference between SLE and DLE?
SLE is a single-loop edge and DLE a double-loop edge (page 7). Edge geometry, loop dimensions and the number of spaces are confirmed against the drawing.
+Can the ladder belt turn or use flat wire?

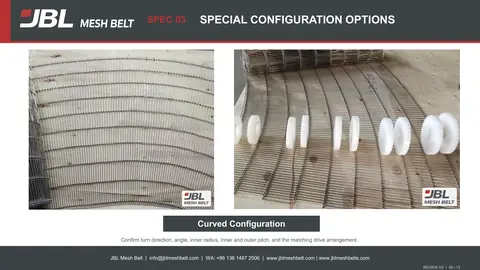

The specification shows curved and flat-wire configurations (pages 8–11); each is confirmed separately, including turn direction, inner radius and flat-wire size.
+What should I send for a review?

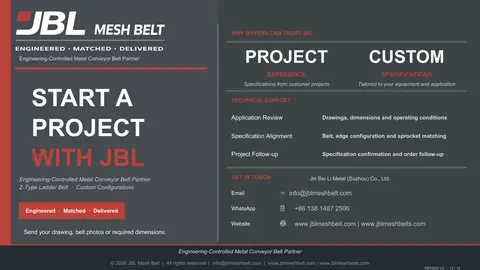

A photo of the belt with a ruler, the number of spaces across the width and what the belt carries. Email info@jblmeshbelt.com or WhatsApp +86 138 1487 2506 (page 13).
Looking for an open ladder-style belt for your conveyor?

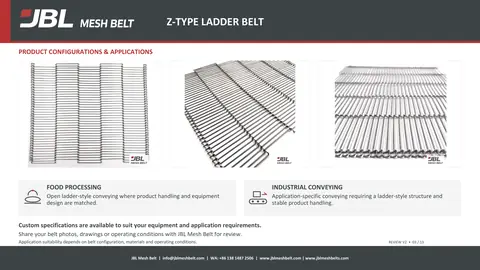

JBL Mesh Belt's Z-Type Ladder Belt is intended for food processing and industrial applications where the structure must suit the product and equipment.
Selection involves more than checking belt width. Wire diameter, pitch, loop geometry and drive engagement need to be considered together.
We review these details with your equipment drawings and operating requirements to help identify suitable options.
Specifications can be customized, including dimensions, materials and relevant edge configurations. Final combinations follow the confirmed project drawing.
Share photos of your current belt, the product being conveyed and the dimensions you have available.
For new equipment or replacement projects, JBL Mesh Belt helps you clarify the configuration before purchasing and maintain consistent specifications for repeat orders.
