Replacing the Spiral Belt and Sprockets on a Waffle Cooling Spiral — From the Customer's Own Belt and Sprockets
A waffle producer needed a new spiral belt and new sprockets for a cooling spiral originally built by an equipment maker in Türkiye. The customer sent a section of the belt and the sprockets. Every fit dimension was measured, a trial run made and compared with the original, and photos sent for approval before bulk production.
- Year
- February 2026
- Application
- Waffle spiral cooling
- Original equipment
- Spiral by an equipment maker in Türkiye
- Scope
- About 200 m spiral belt + sprockets
- Route
- From the customer's belt and sprockets
01
The situation
A Worn Belt and Worn Sprockets — and No Drawing From the Original Builder
The line cools waffles on a spiral. Both the belt and the sprockets were due for replacement, and the original builder's drawings were not available. The customer sent the belt section and the sprockets to be copied.
02
Reverse engineering
What Was Measured on the Customer's Belt and Sprockets

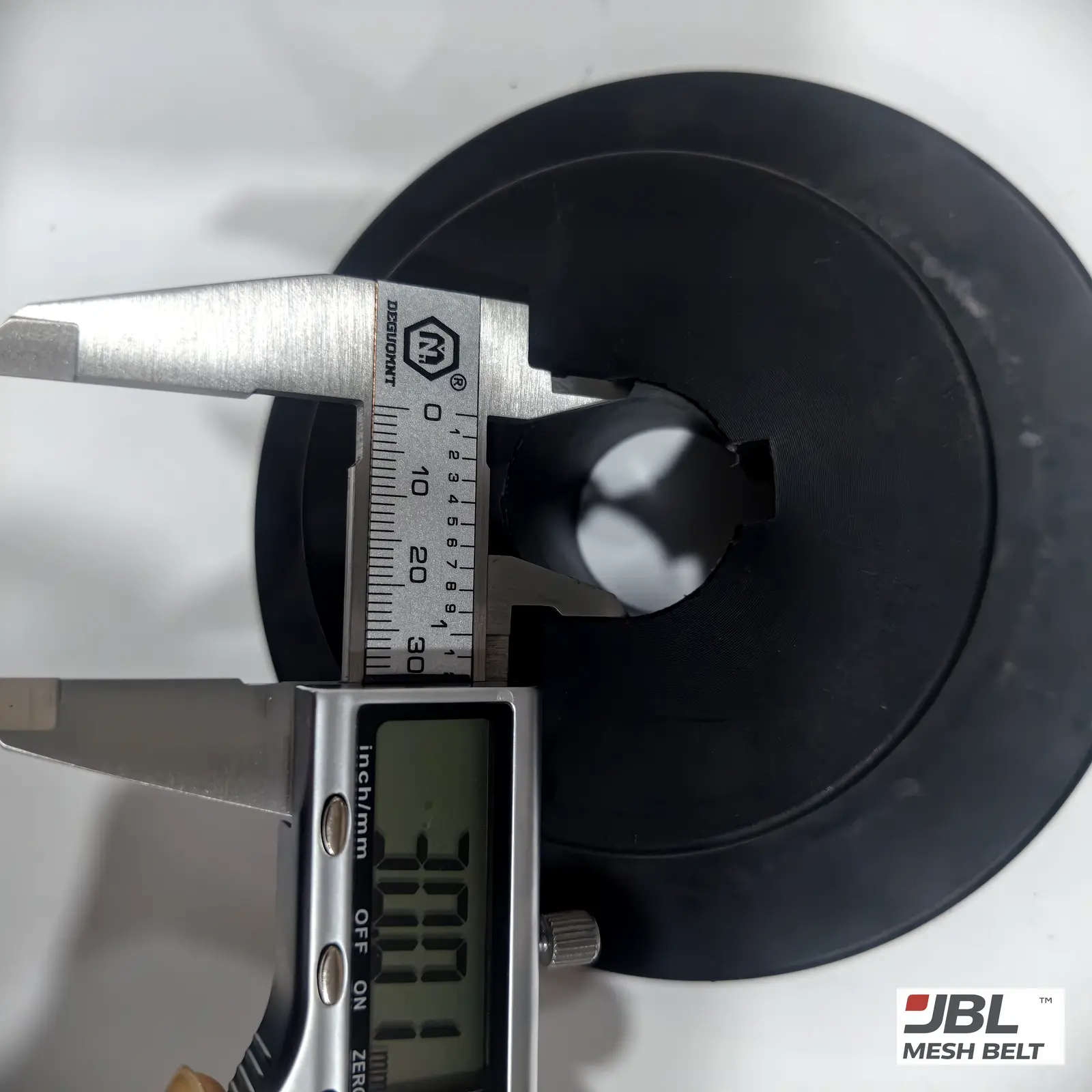

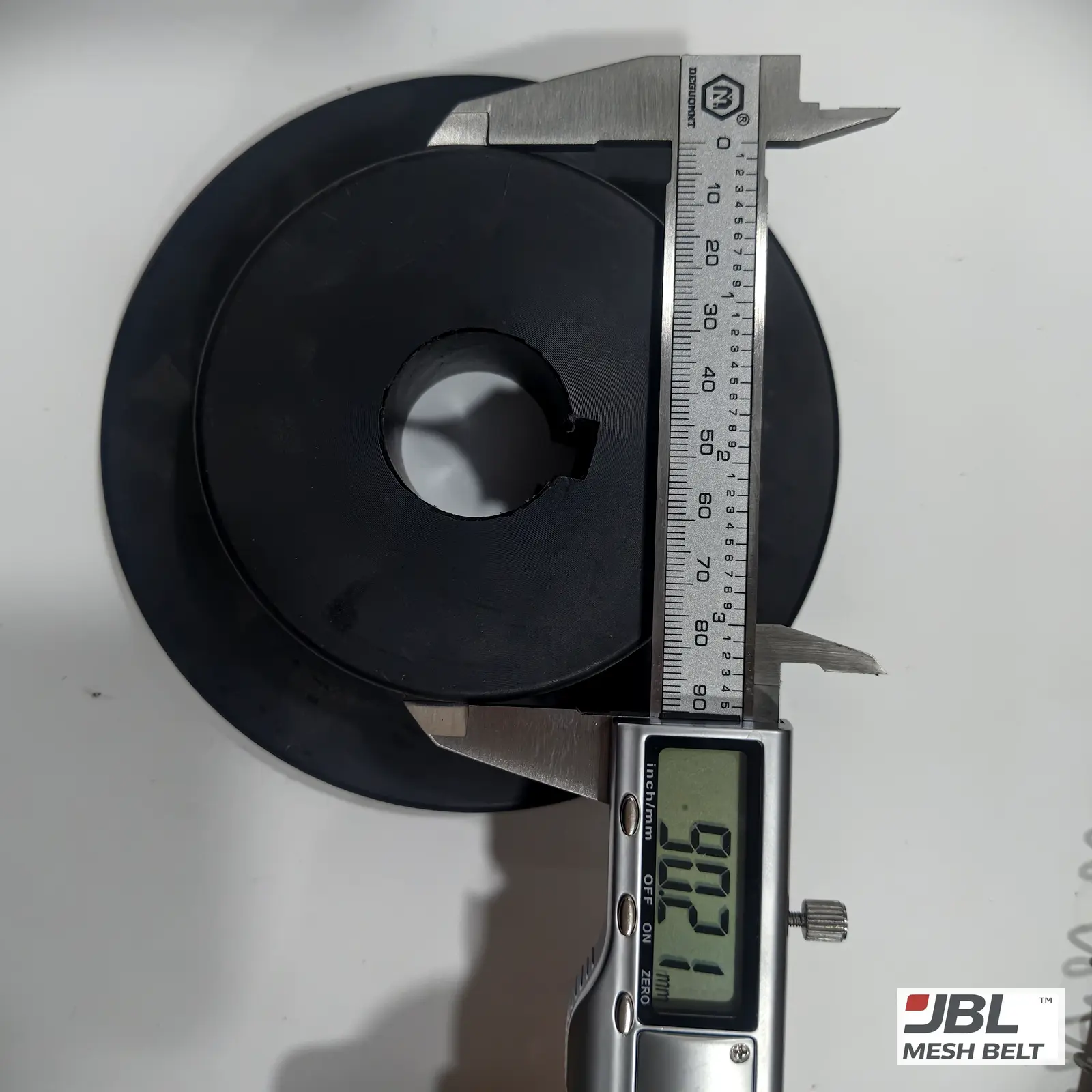

Rod, link thickness and link sizes on the belt; width, hub, bore and tooth on the sprockets — every dimension that decides whether the new parts run on the existing spiral.
03
Sample before bulk
Trial Run Compared With the Original — Approved From Photos

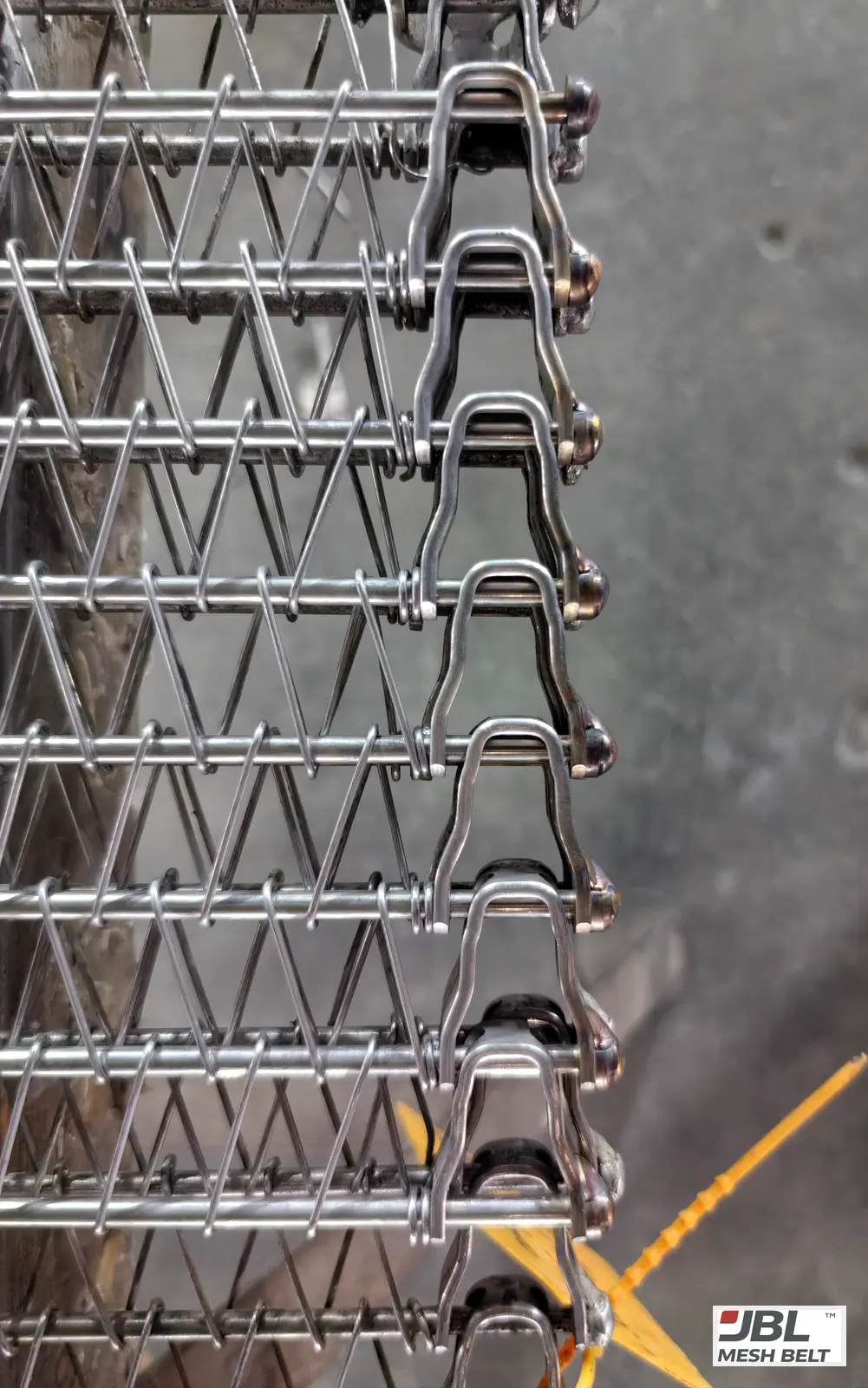

A trial run of belt and sprockets was made and compared side by side with the customer's originals. Photos of the comparison were sent for approval; bulk production started only after the customer confirmed.
| Checked | Customer's original | New sample |
|---|---|---|

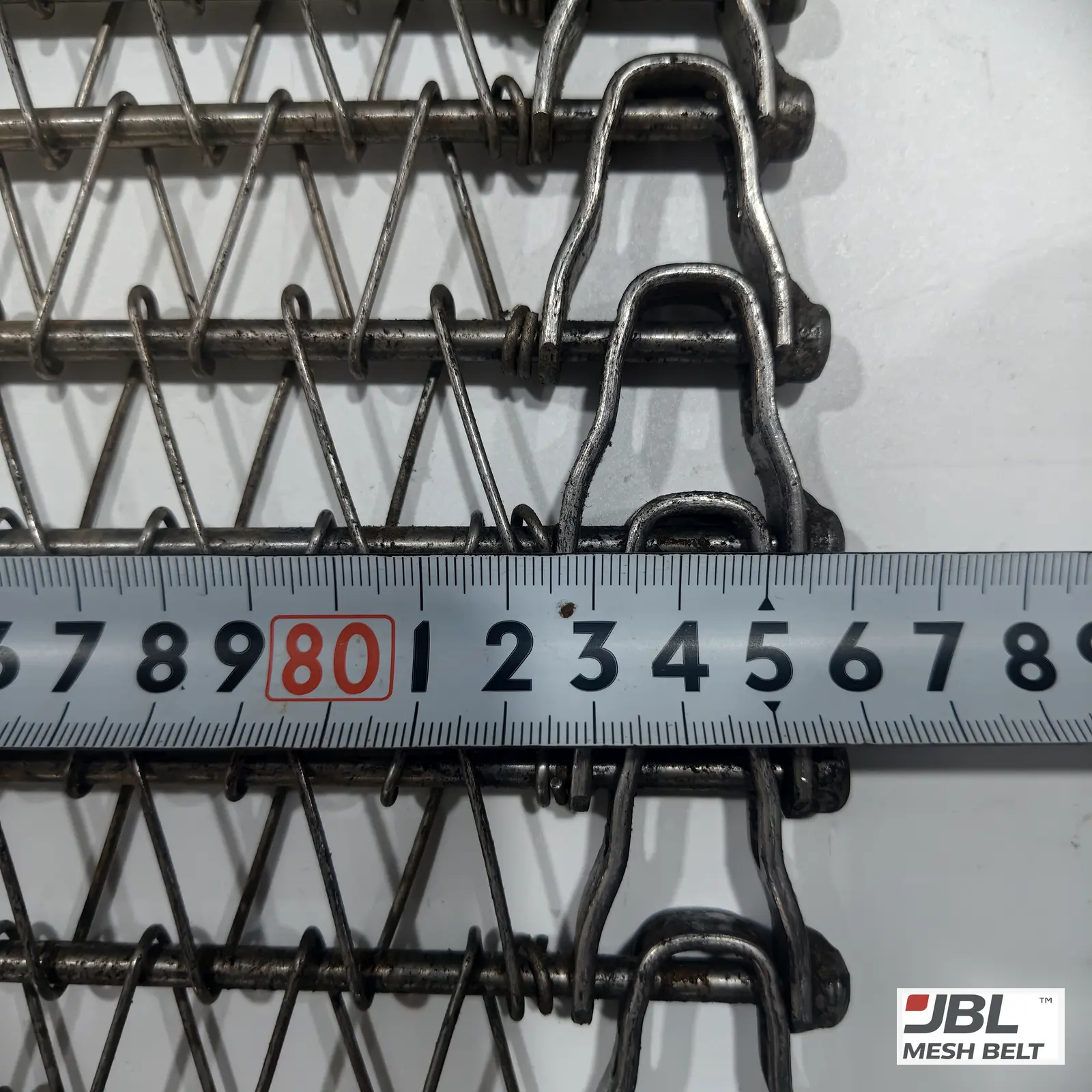

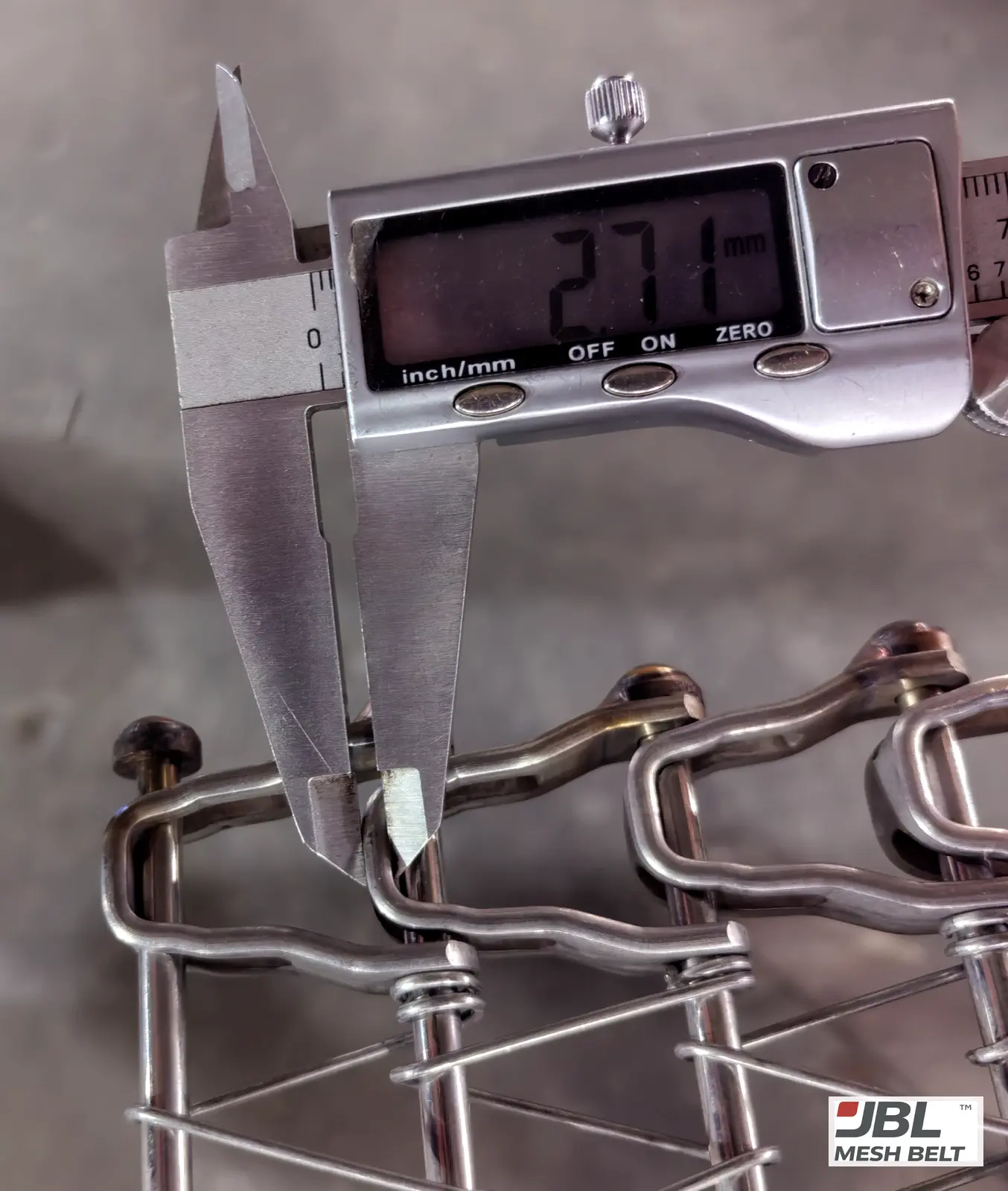

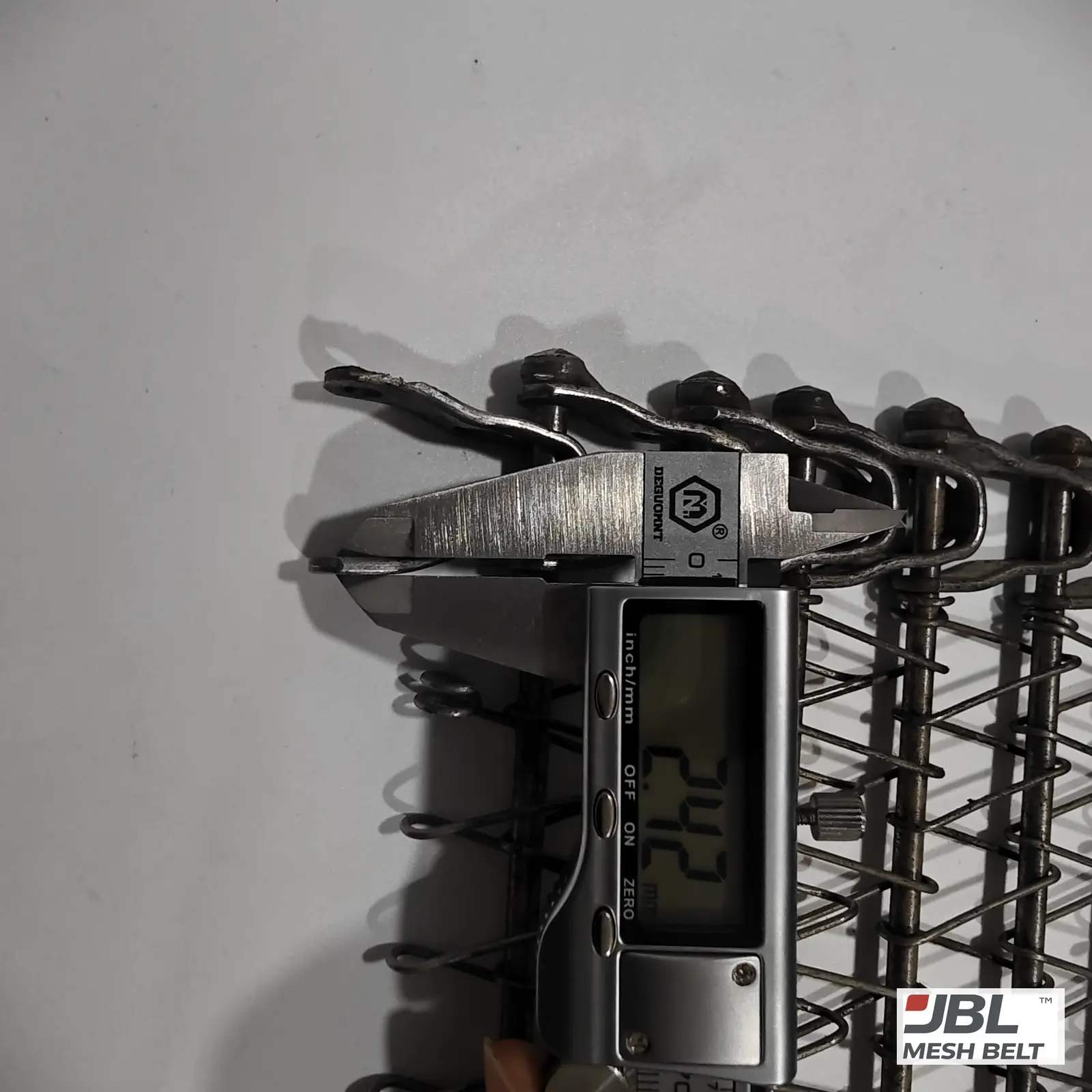

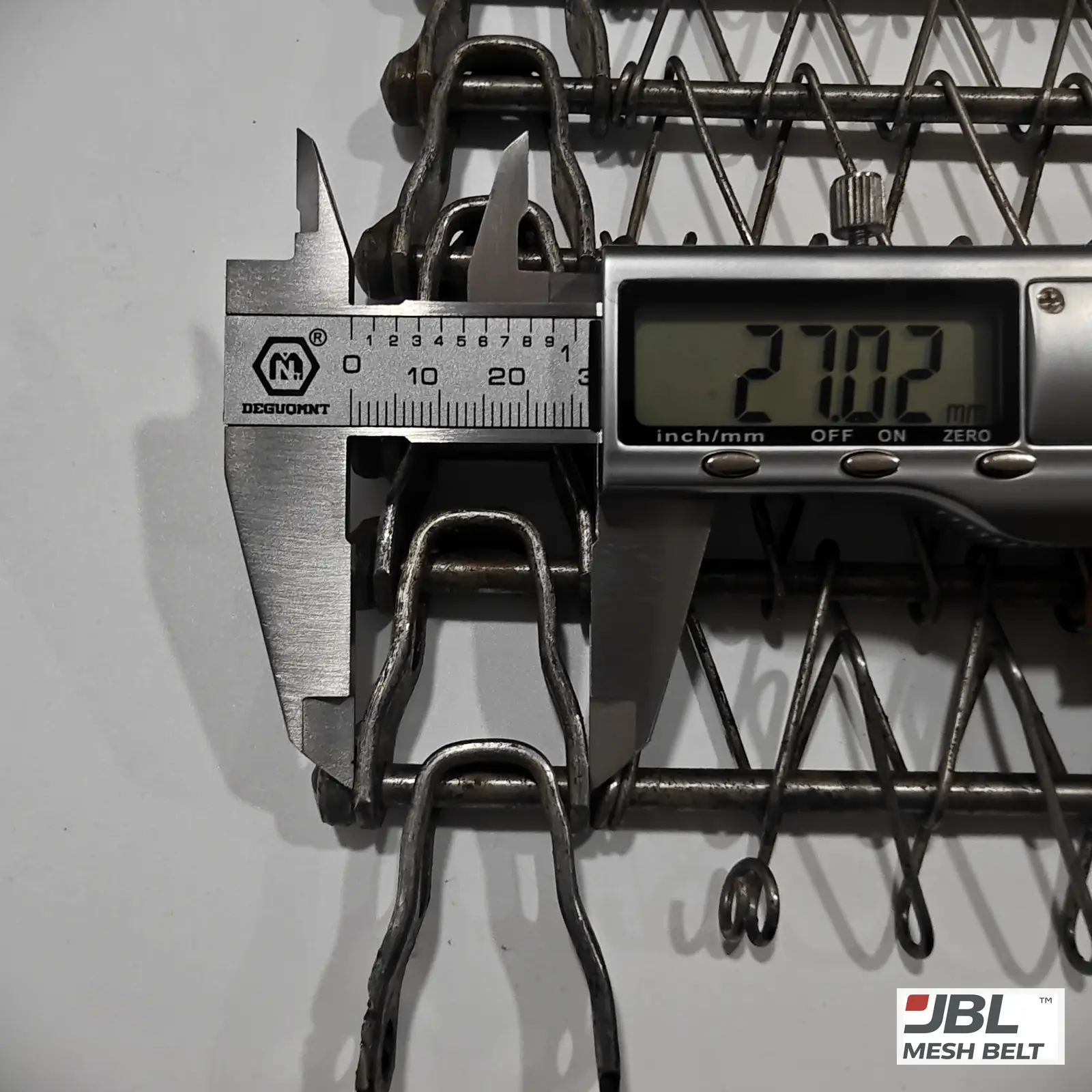

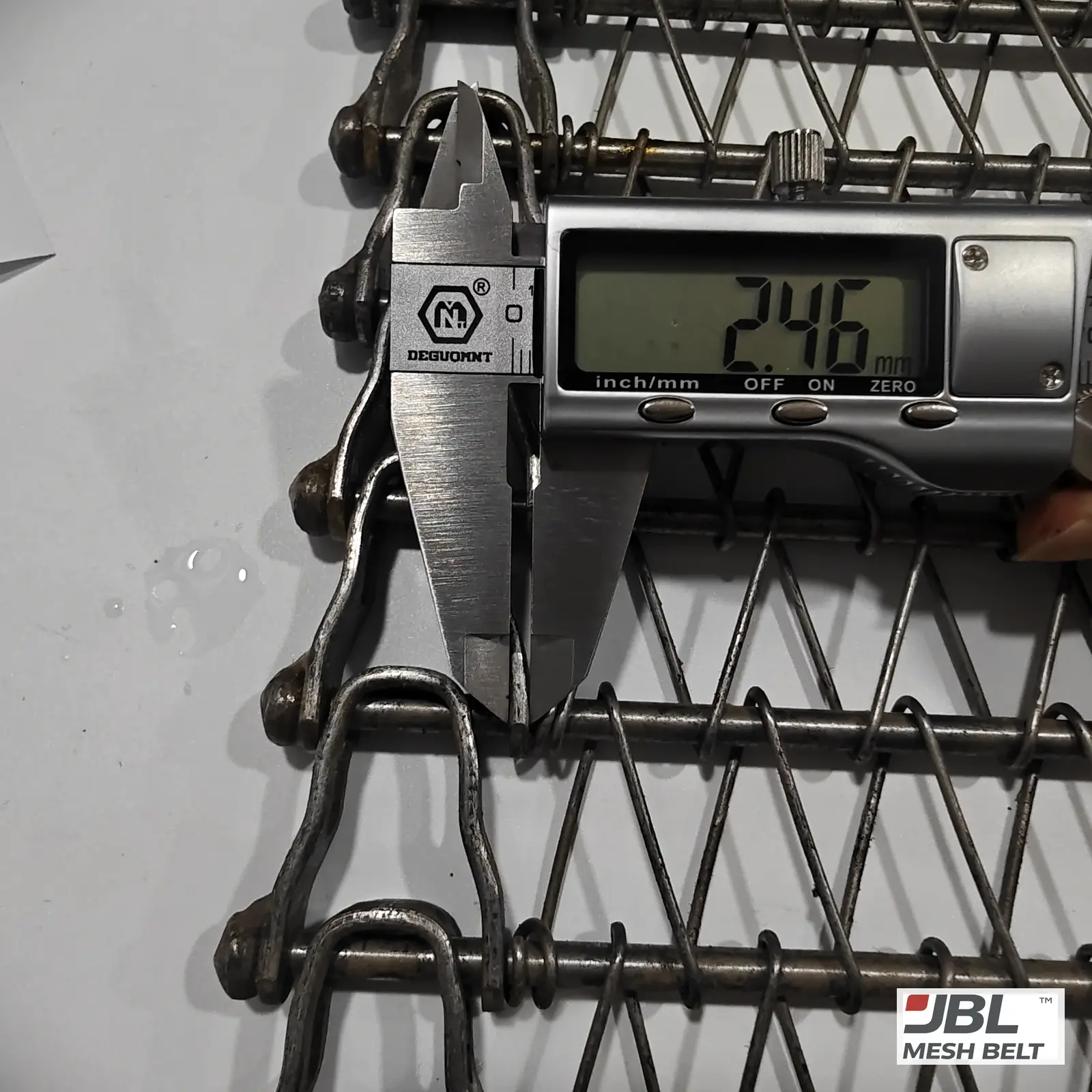

| Link thickness | 2.42 mm (worn) | 2.71 mm (new) |

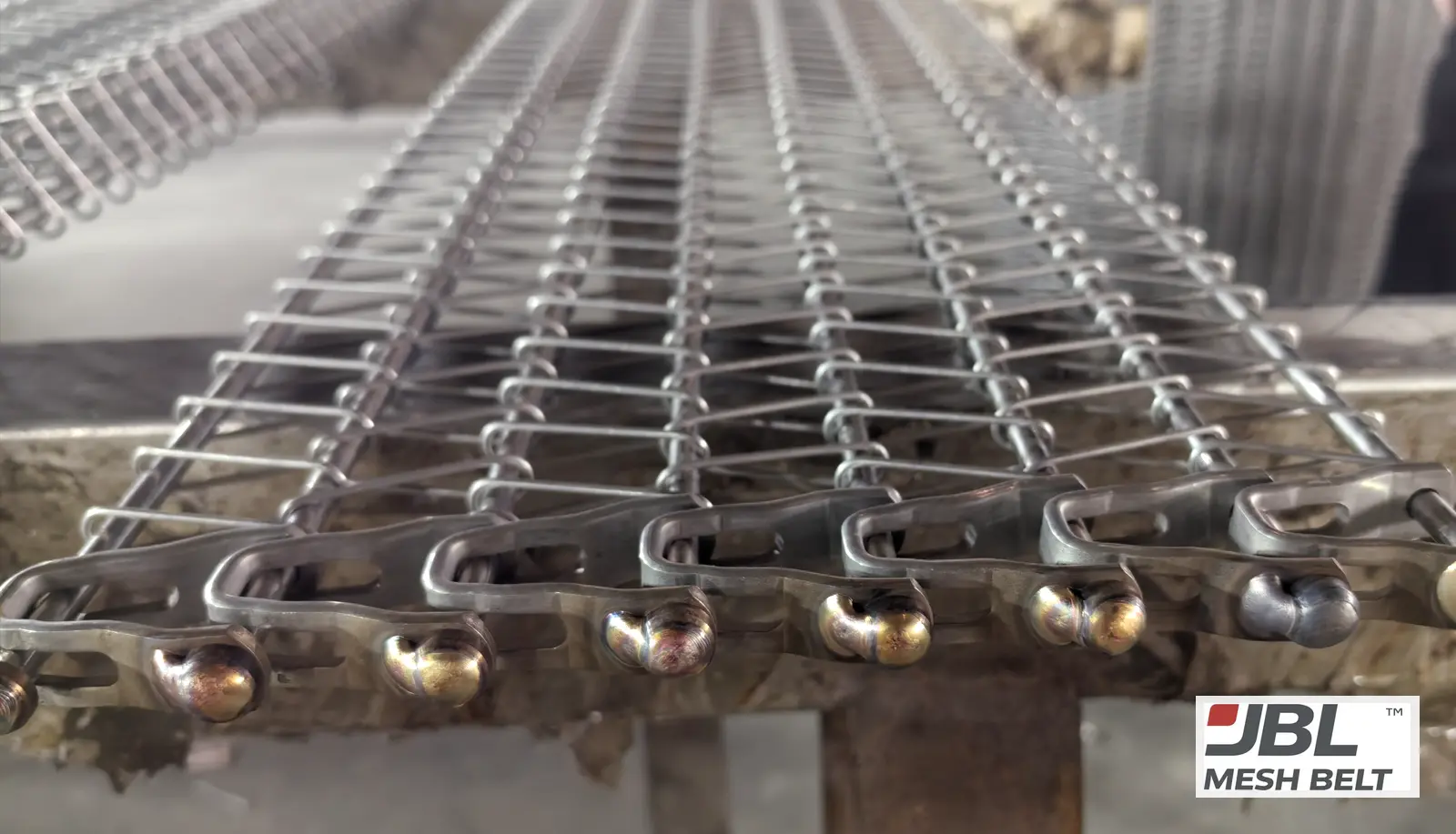

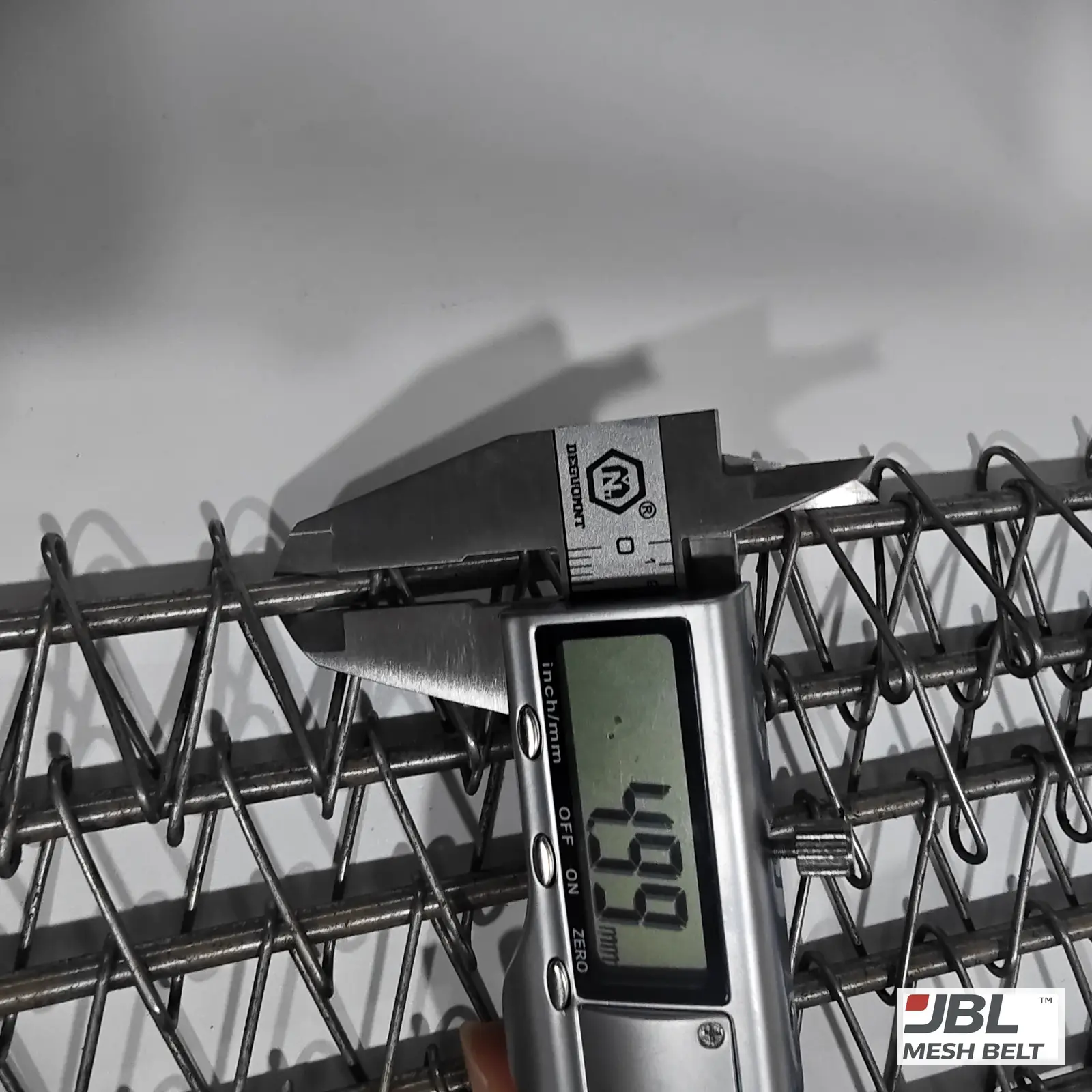

| Rod | 4.99 mm | Matched to the original |

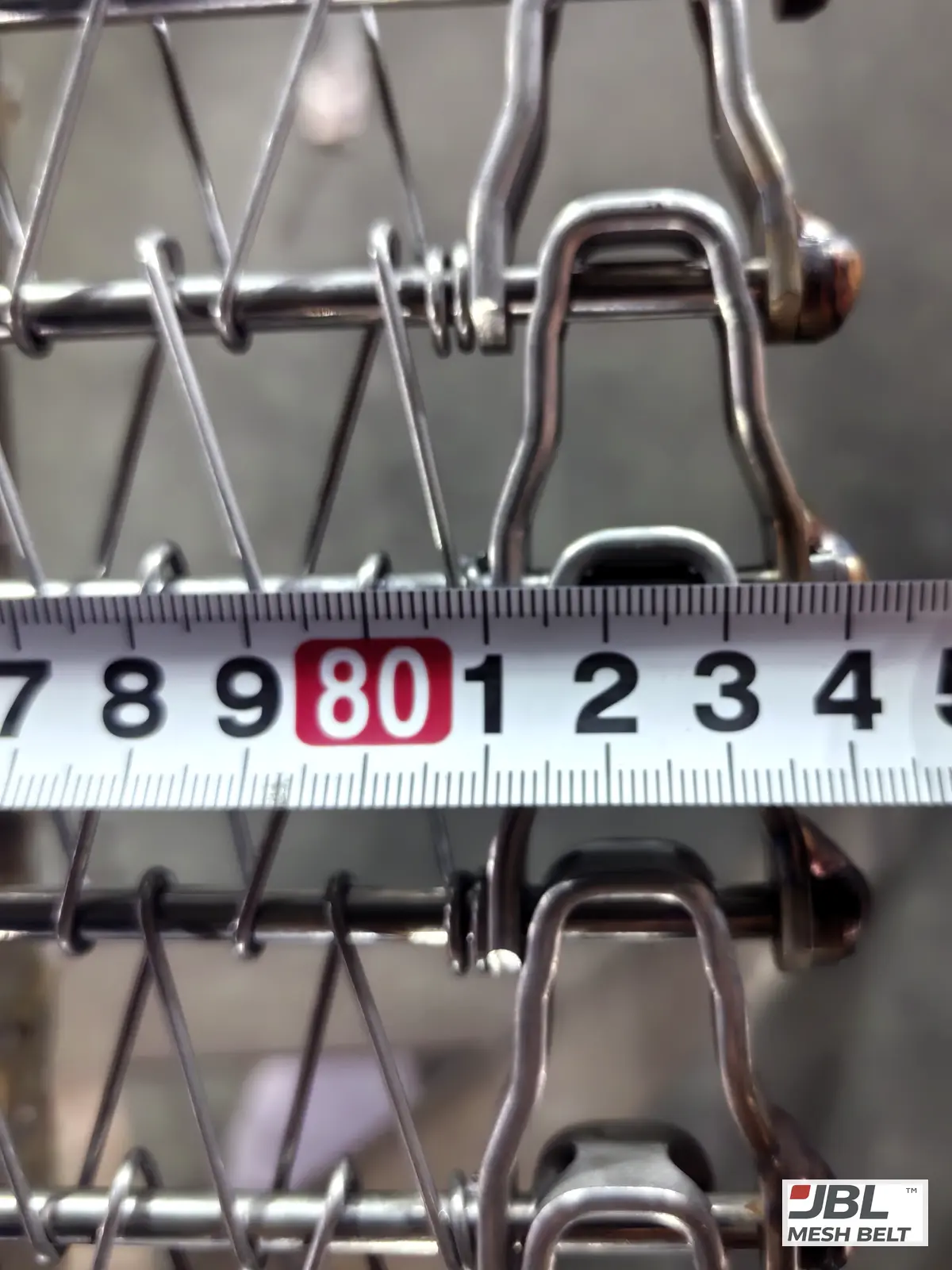

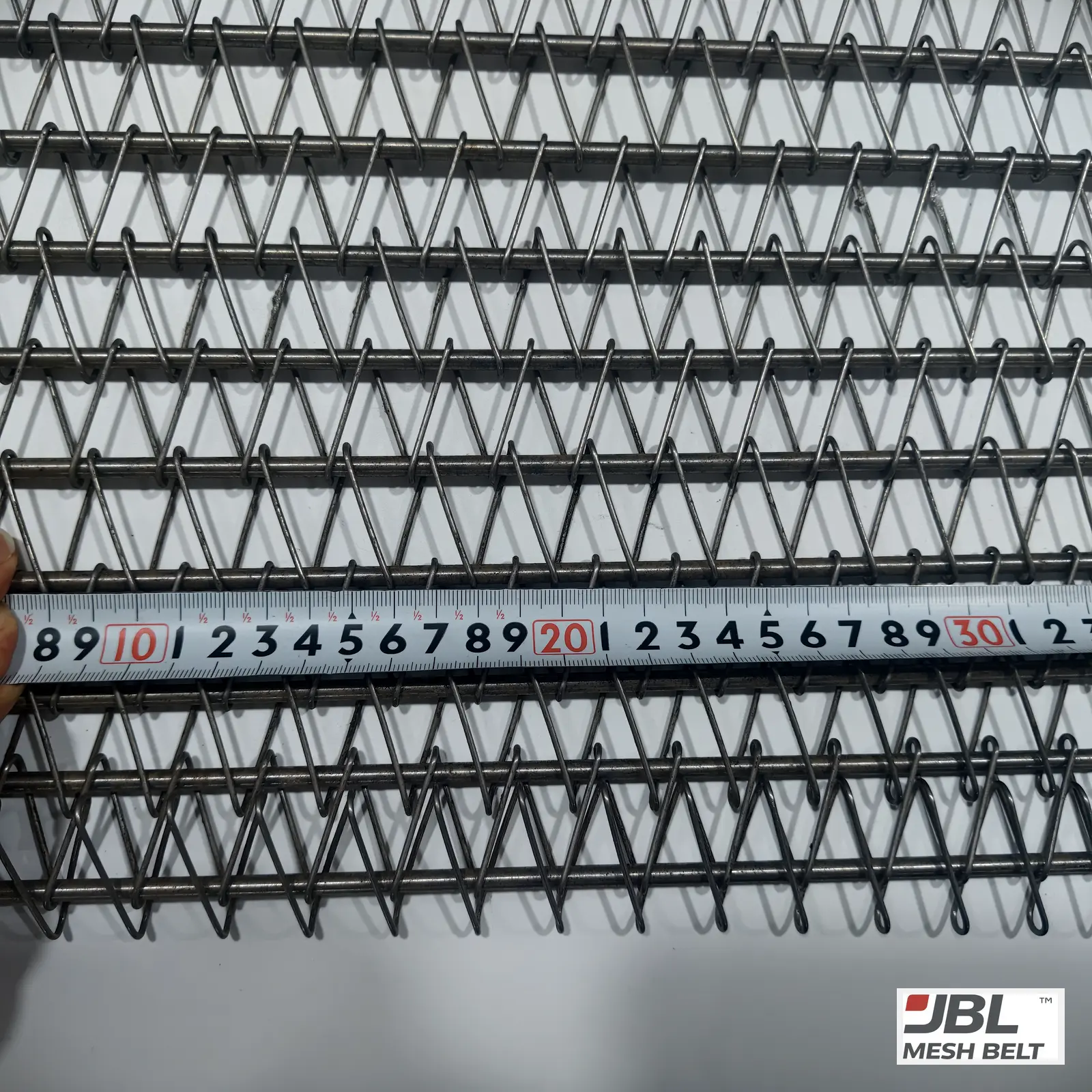

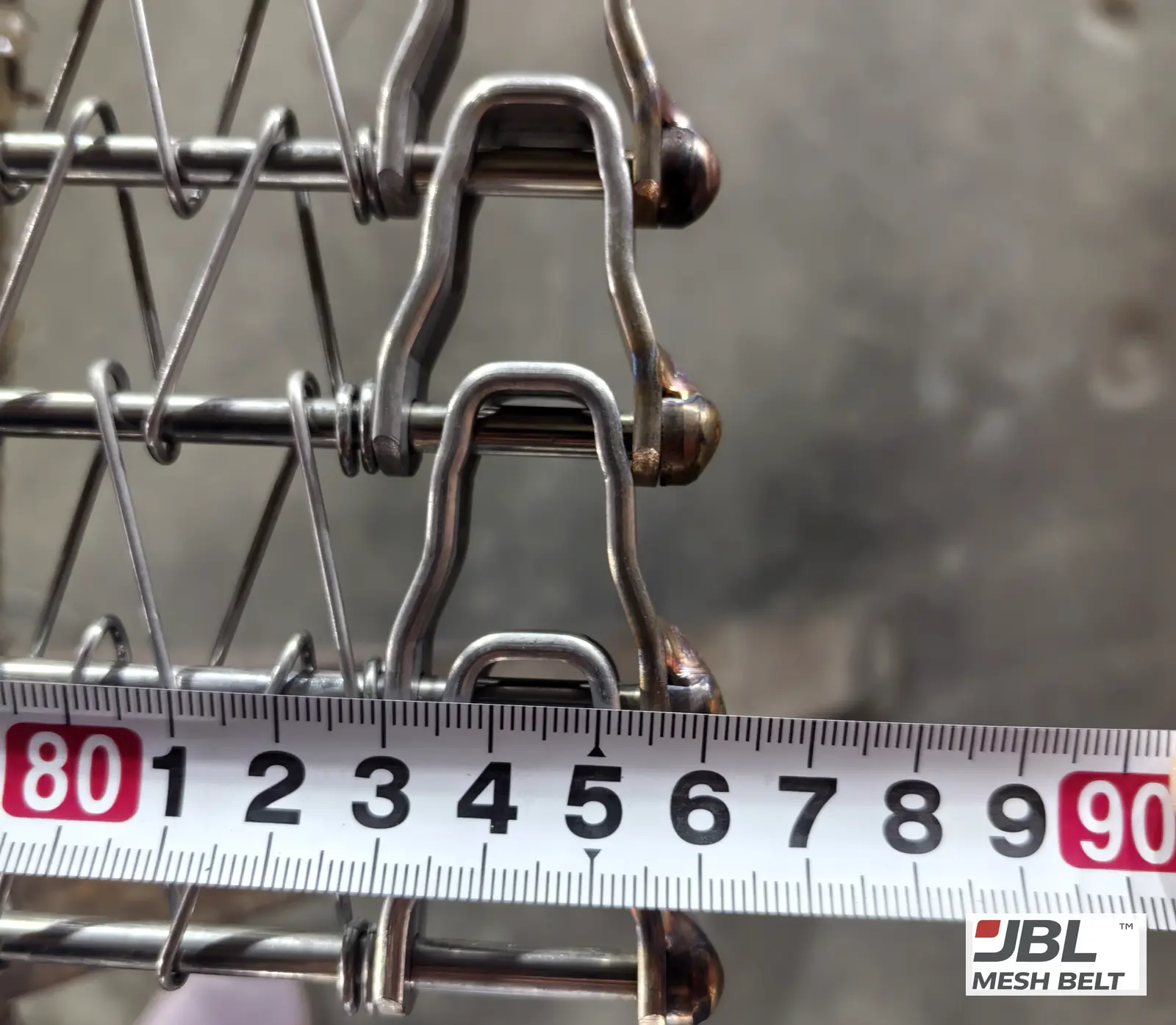

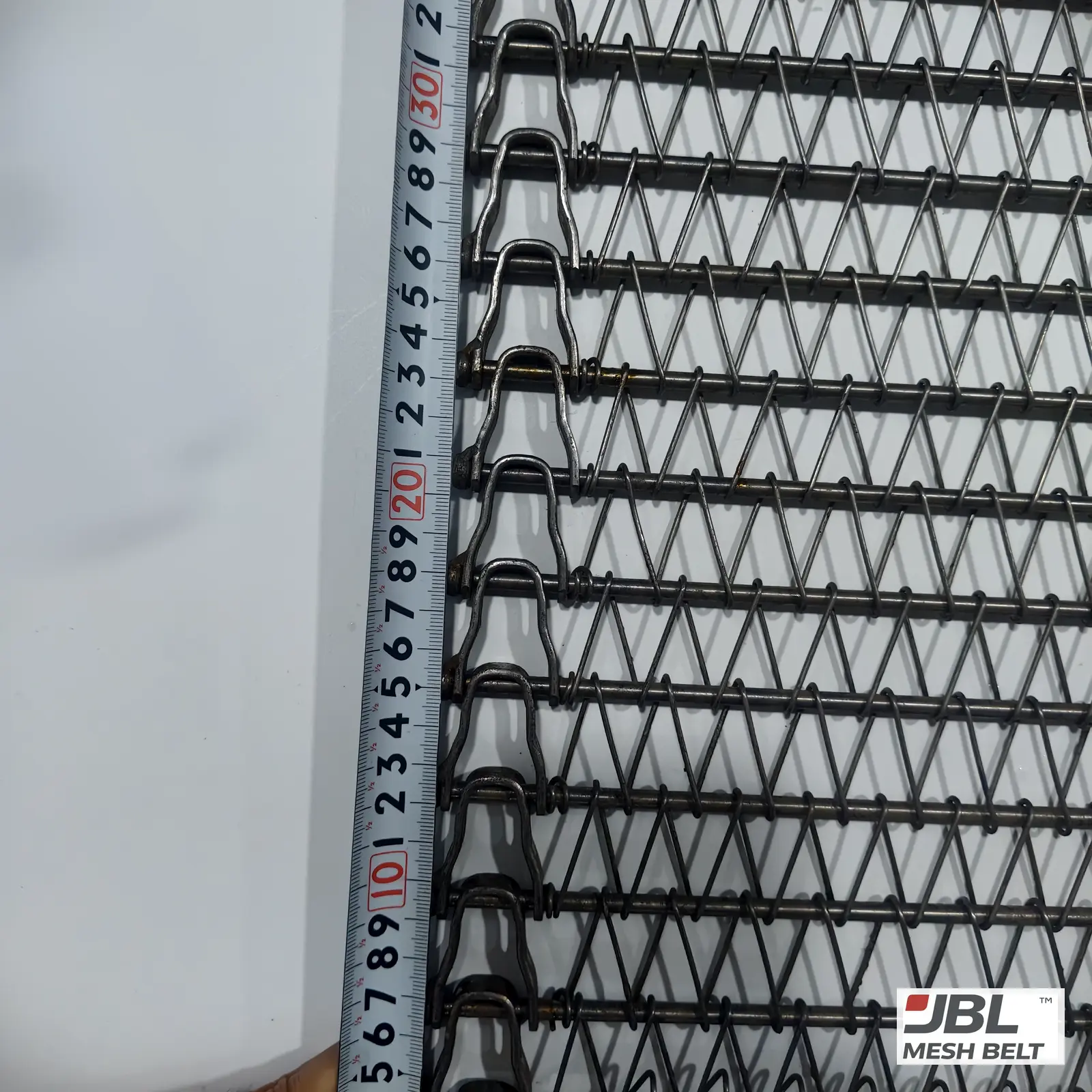

| Pitch along the edge | Read with a tape | Read the same way — compared |

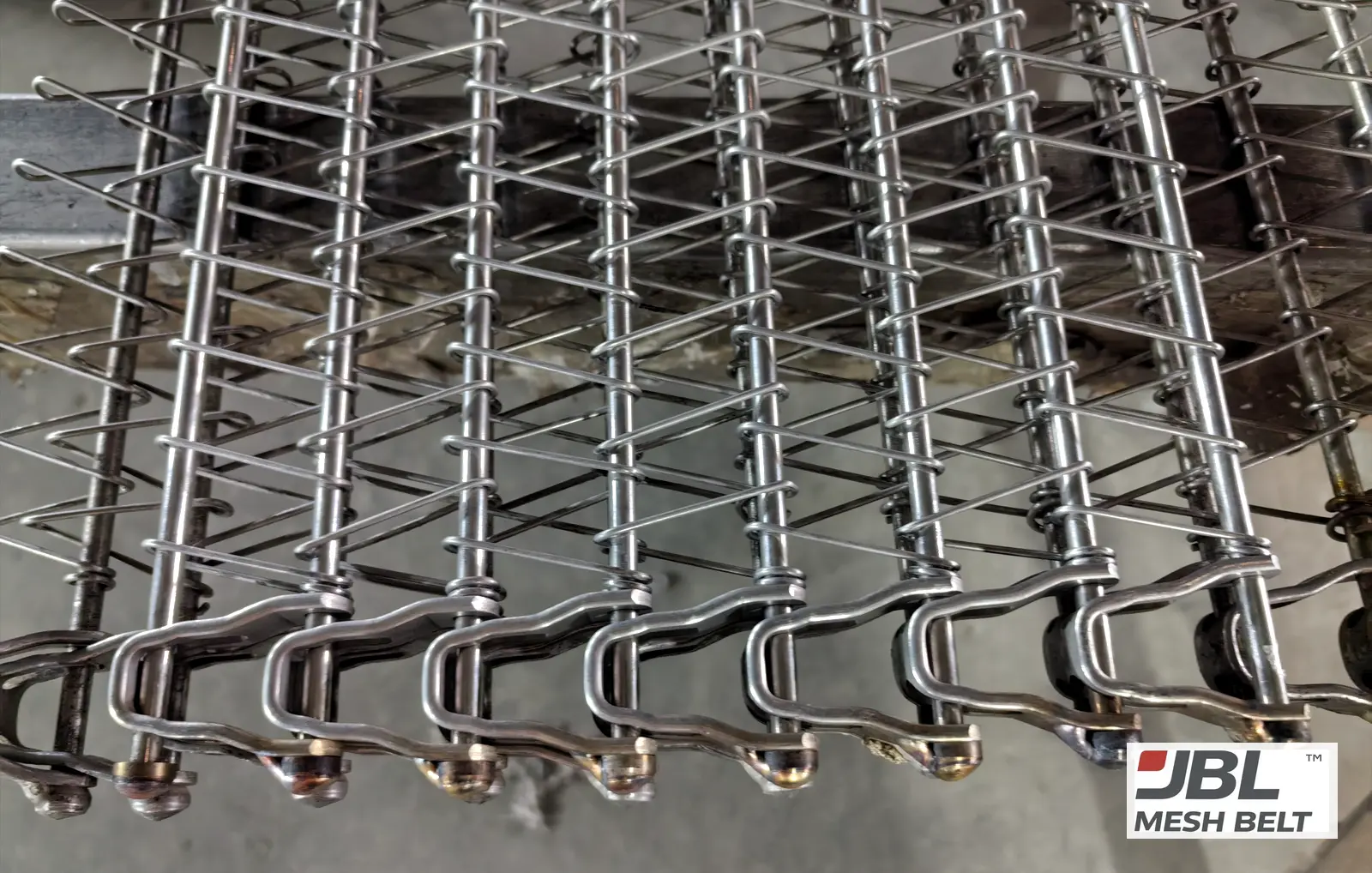

| Joint to the original | — | New section linked into the original belt |

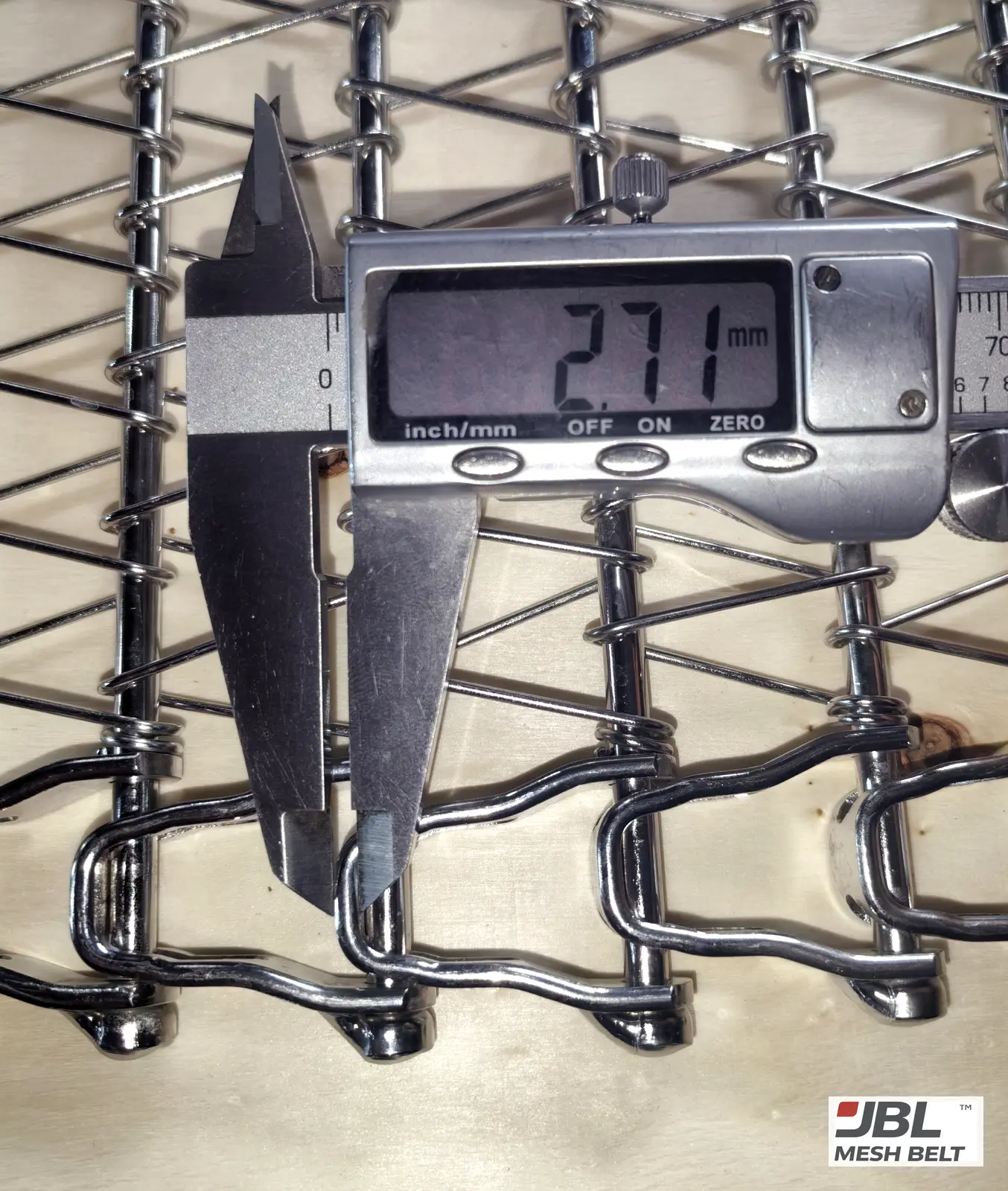

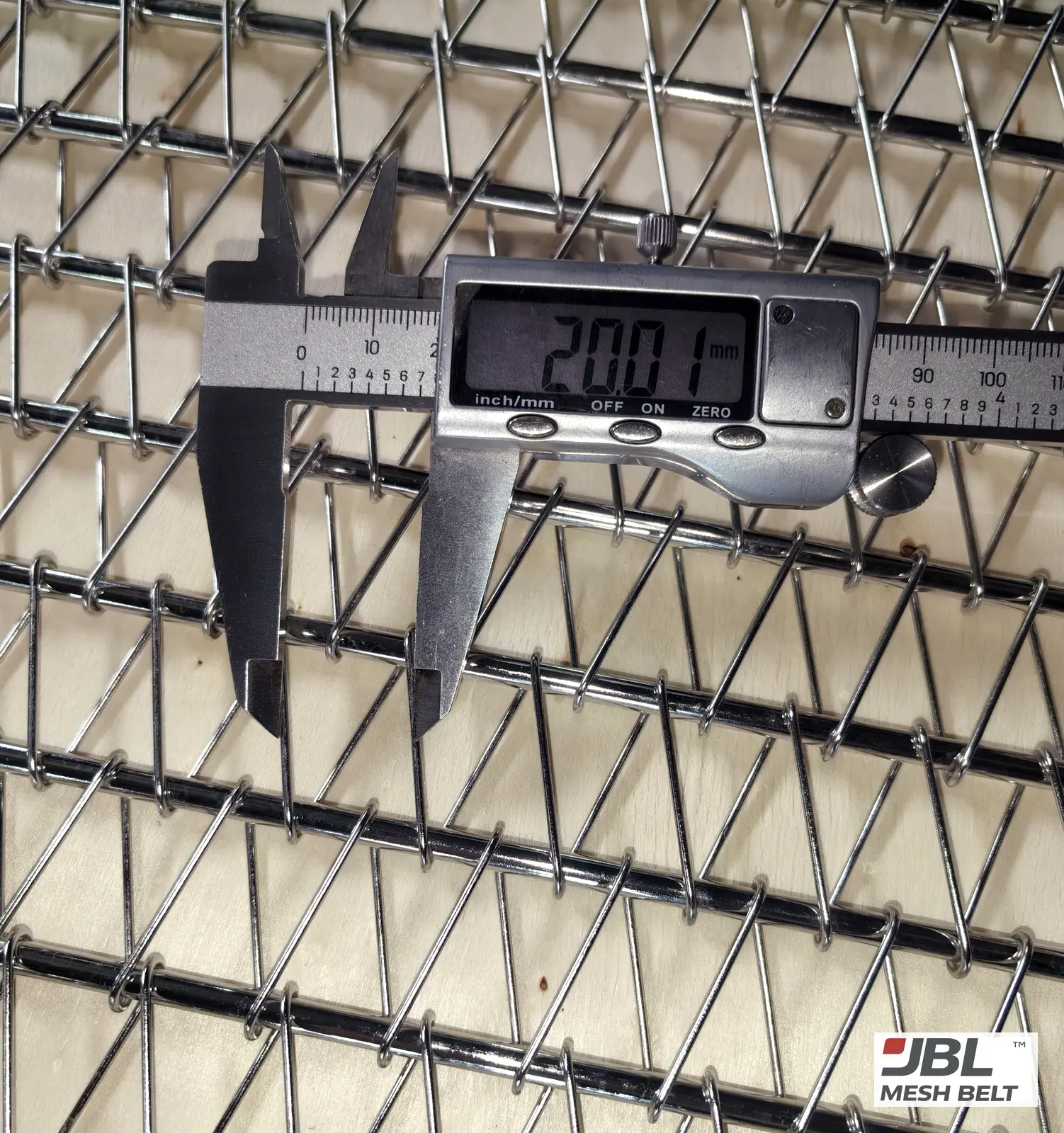

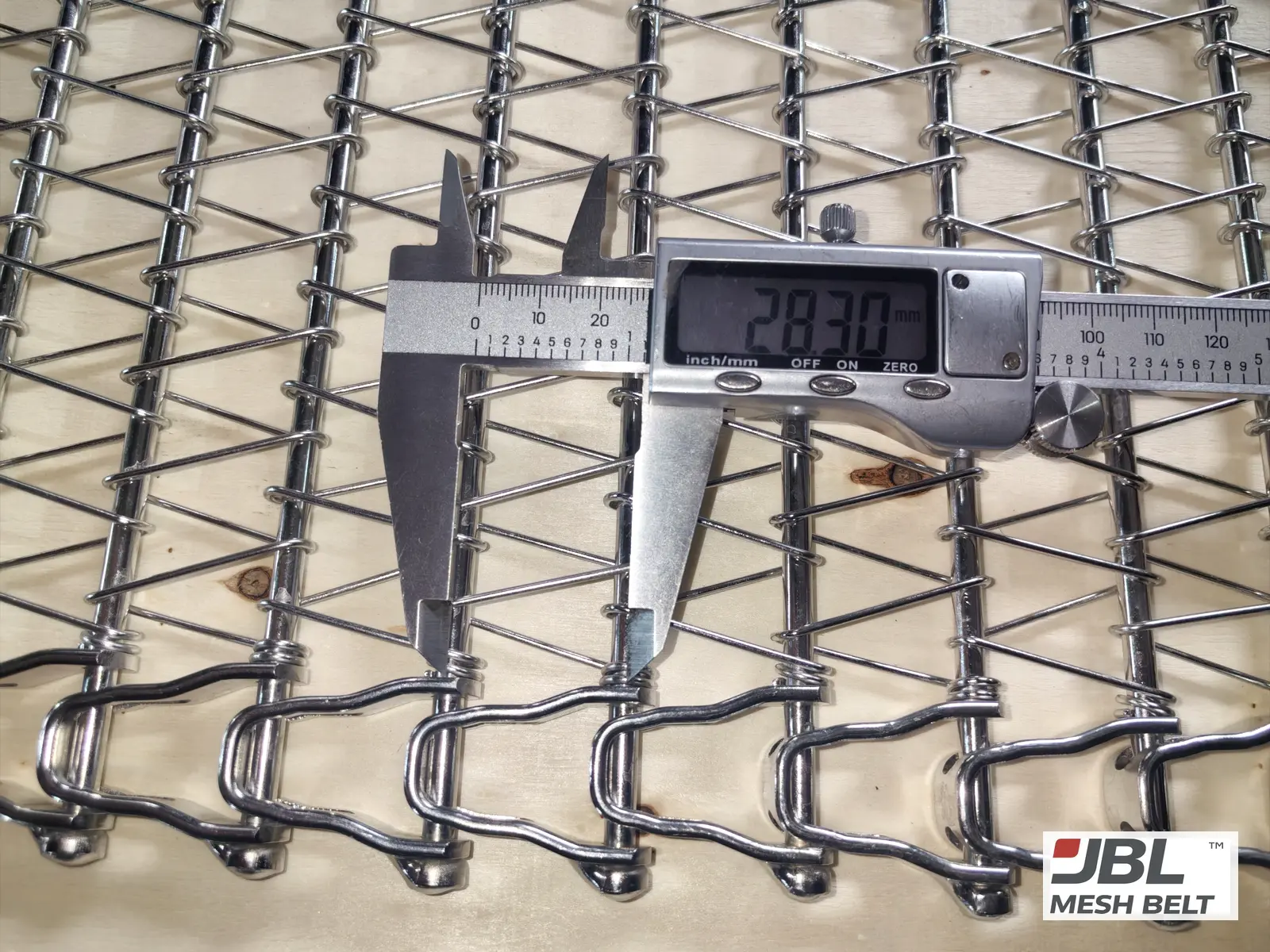

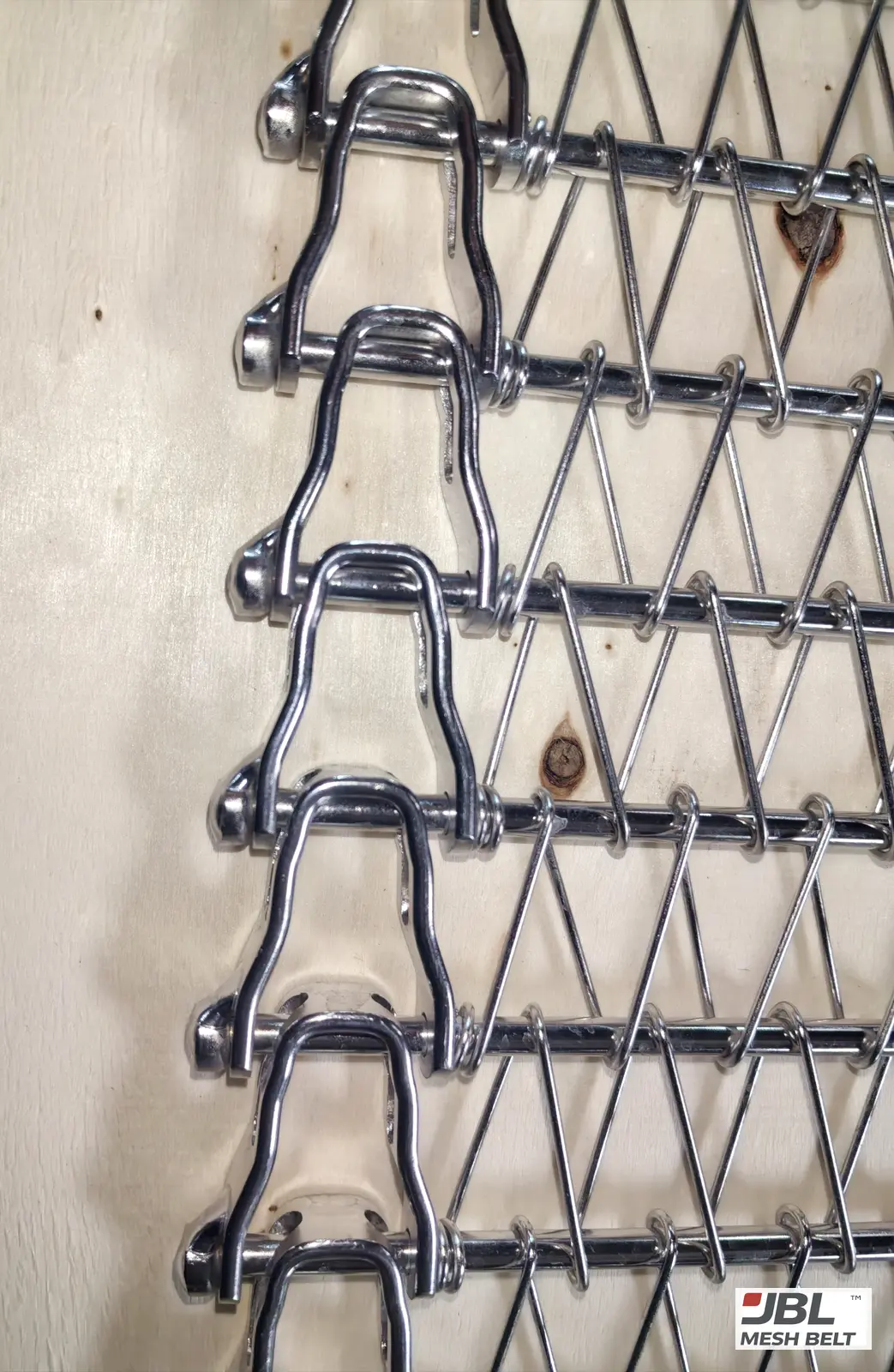

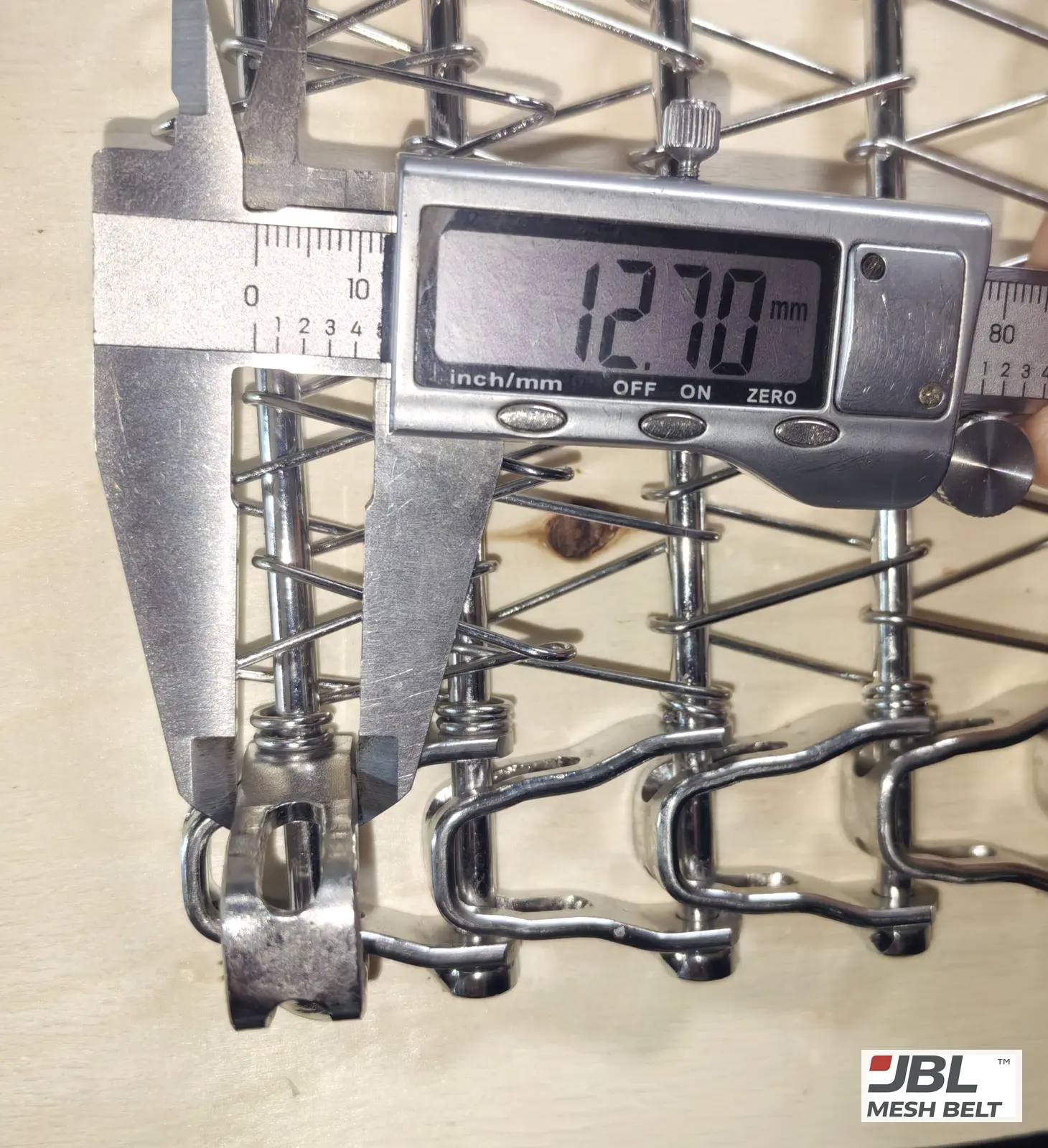

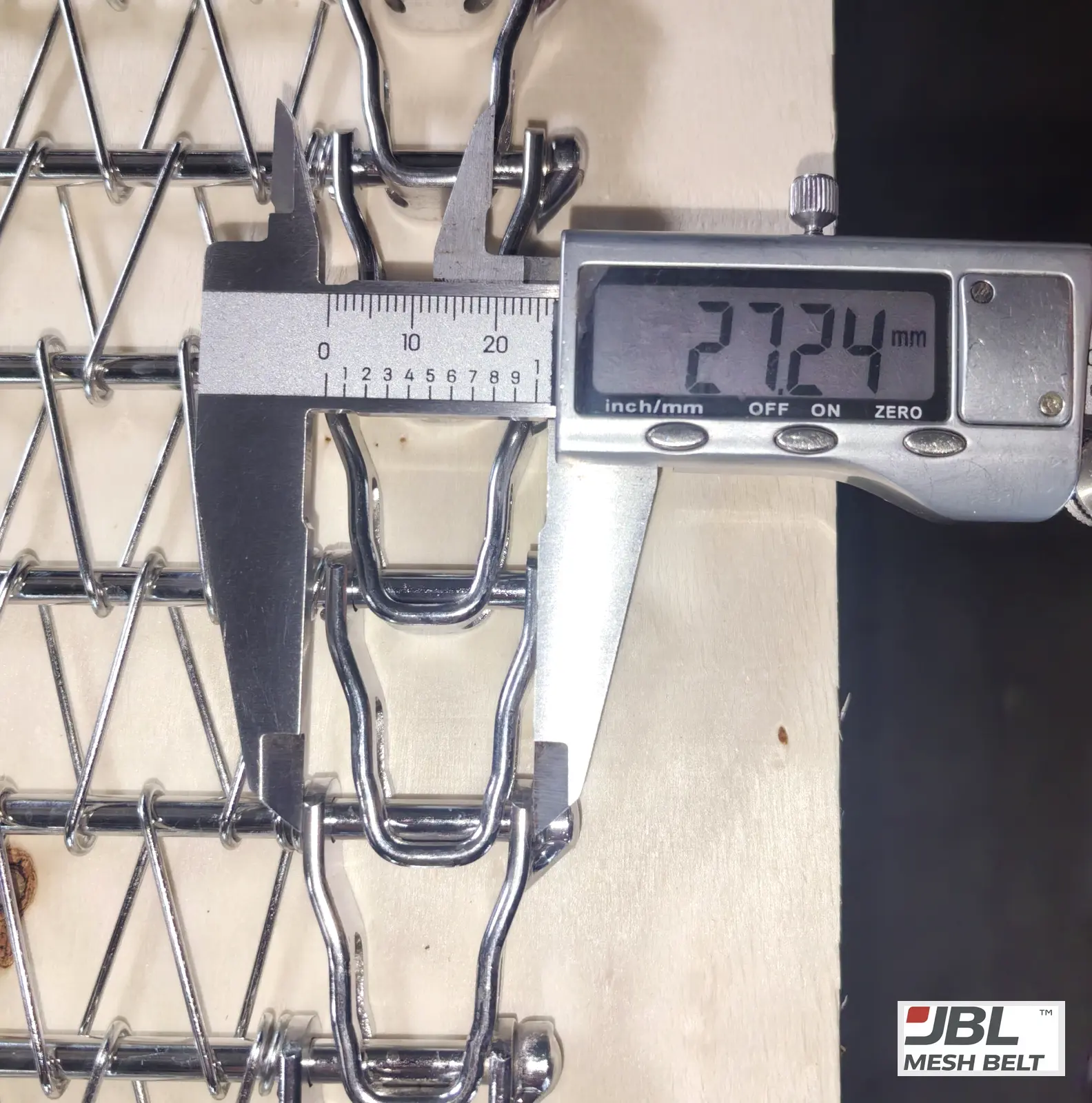

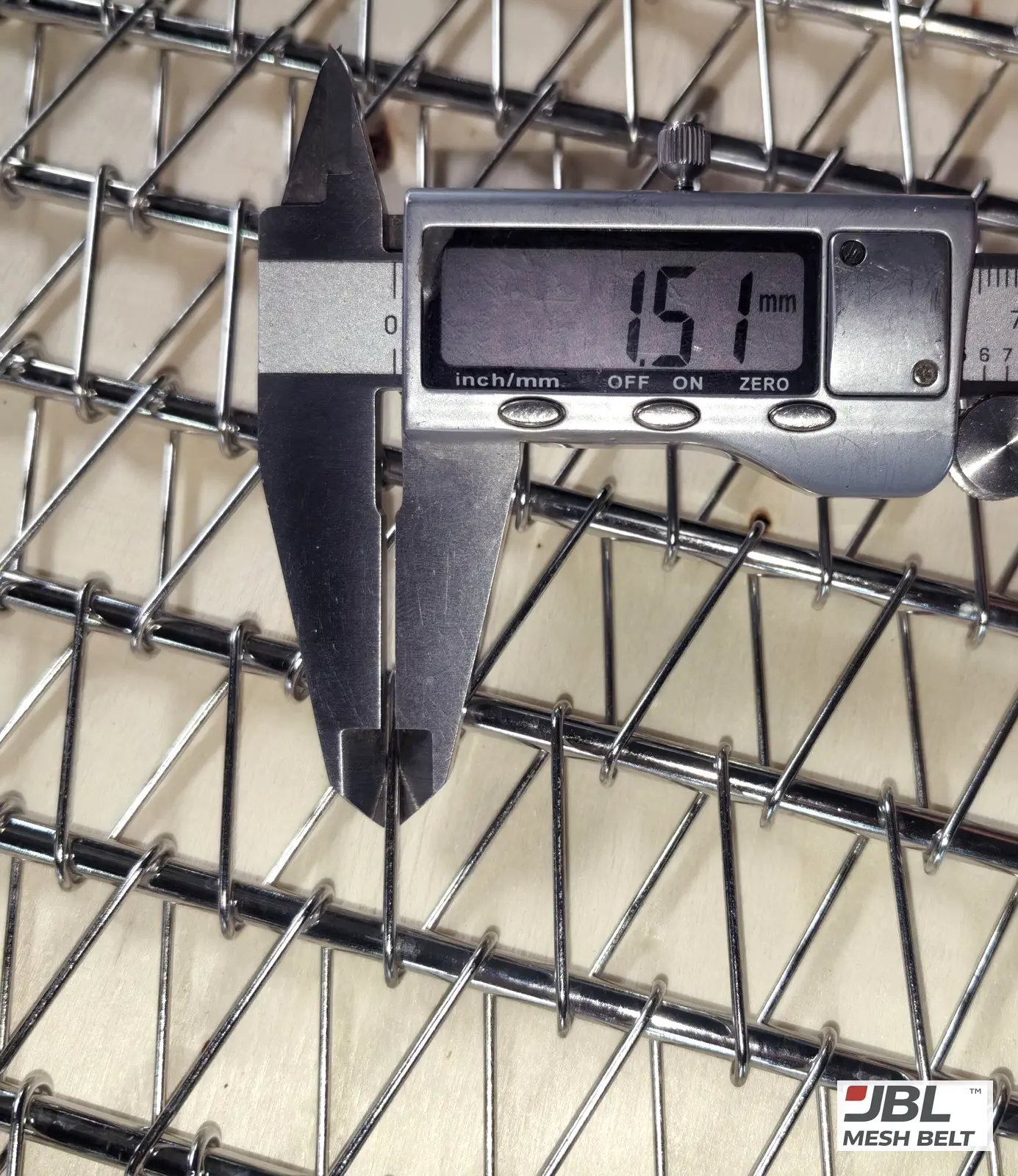

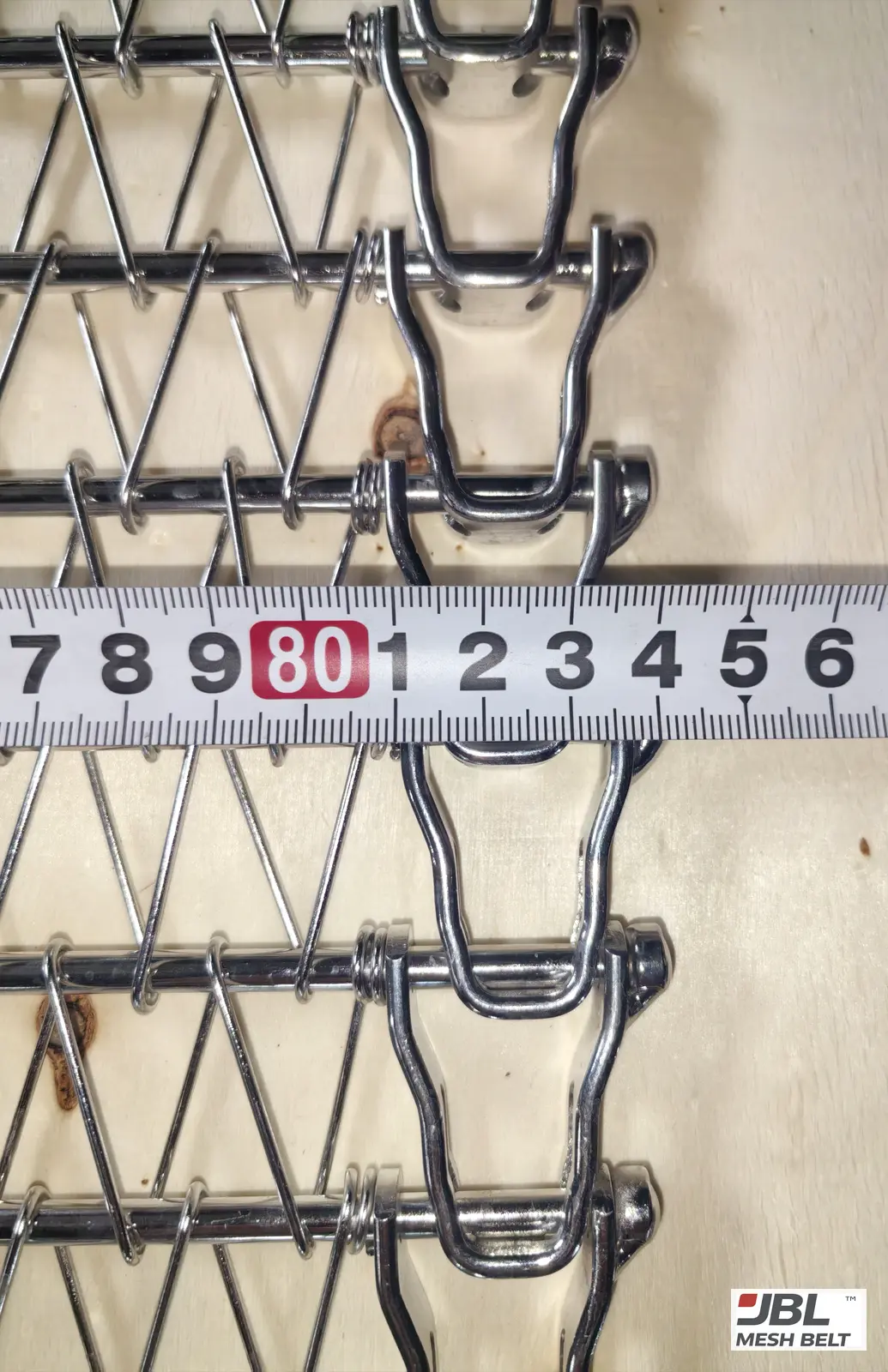

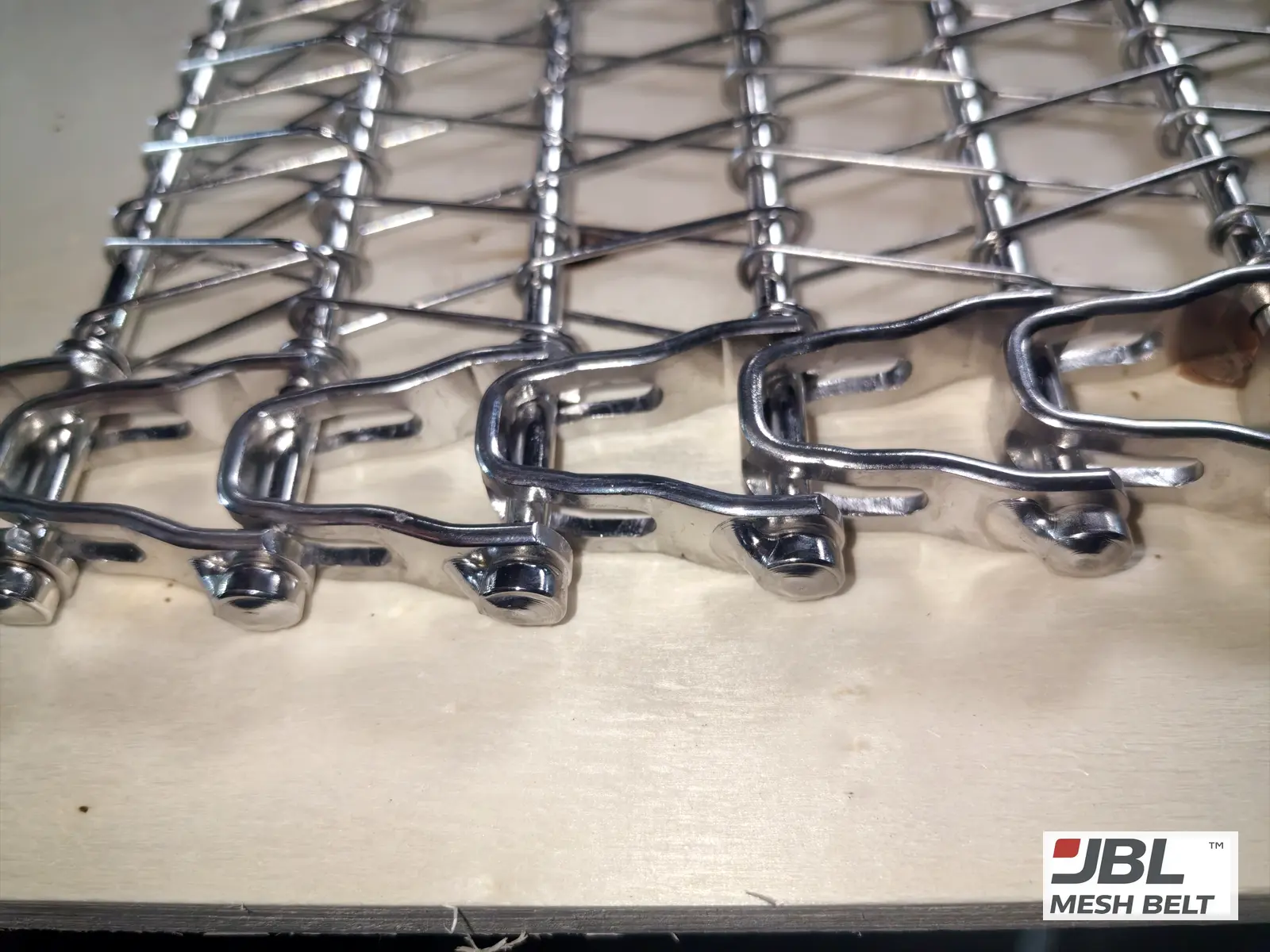

| Bulk belt (before packing) | — | Link 2.71 / 12.70 / 27.24 mm · wire 1.51 mm · mesh 20.01 / 28.30 mm |

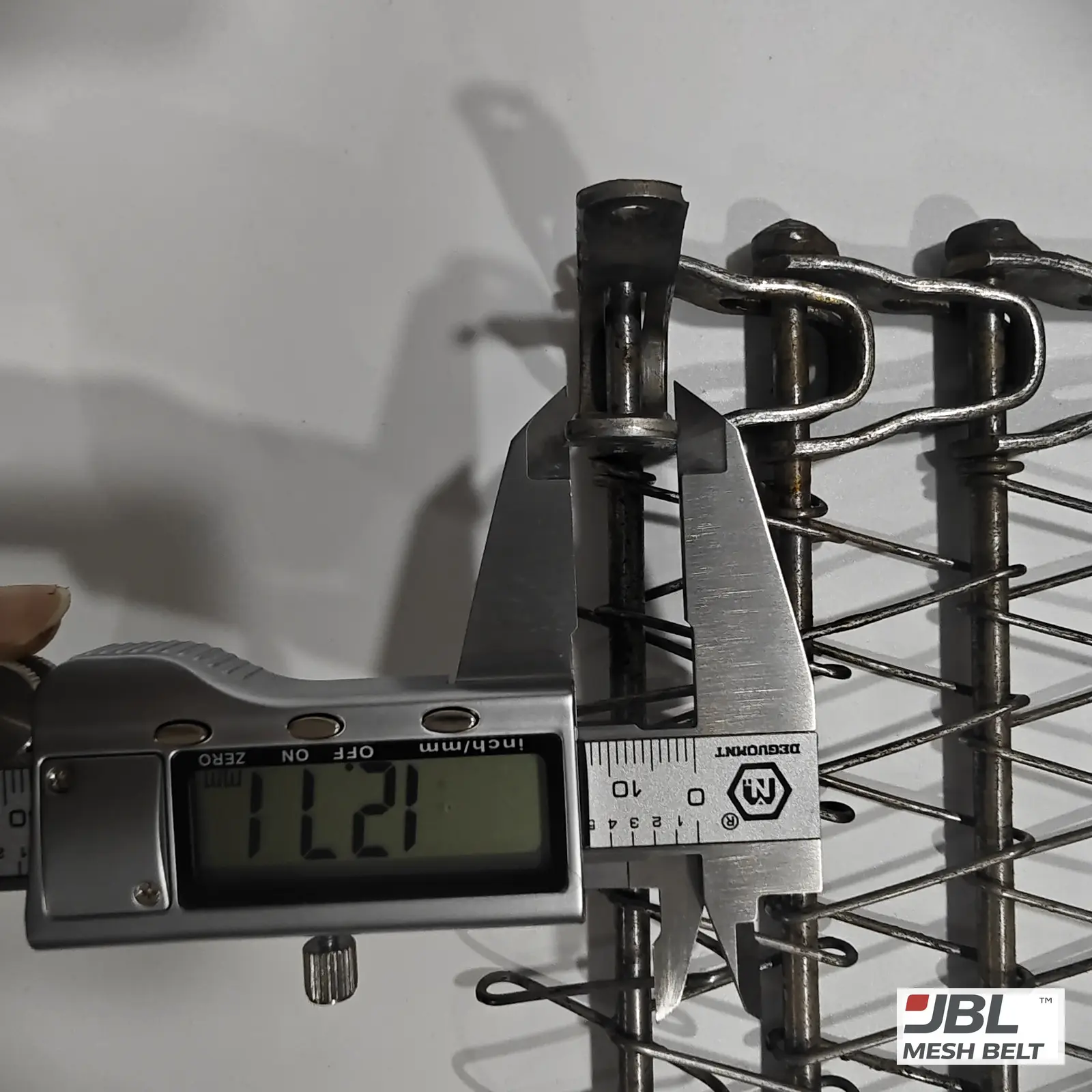

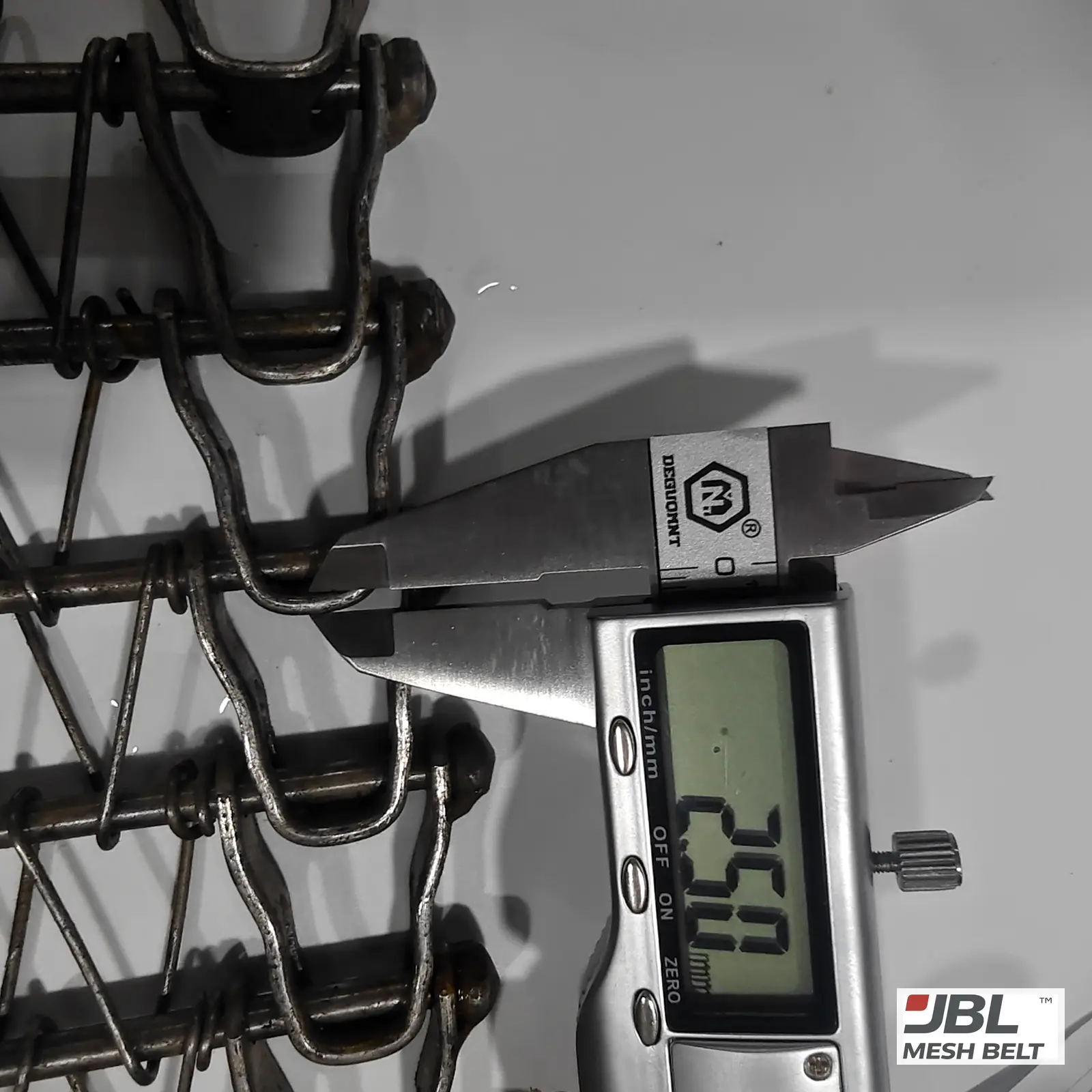

Caliper readings from the photos below. Final values follow the drawing confirmed with the buyer.
04
Sprockets

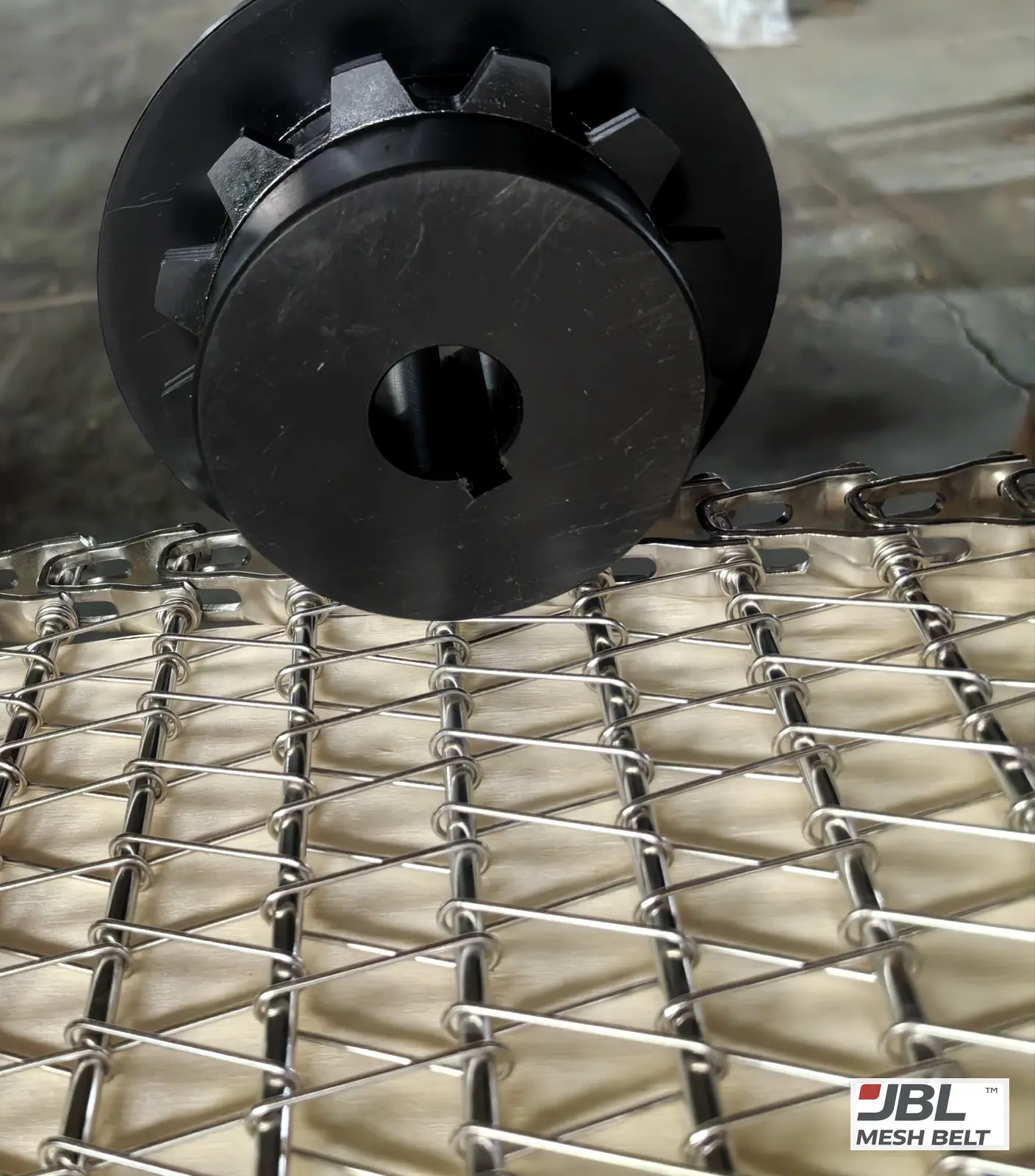

Sprockets Remade and Run on the Bulk Belt Before Packing

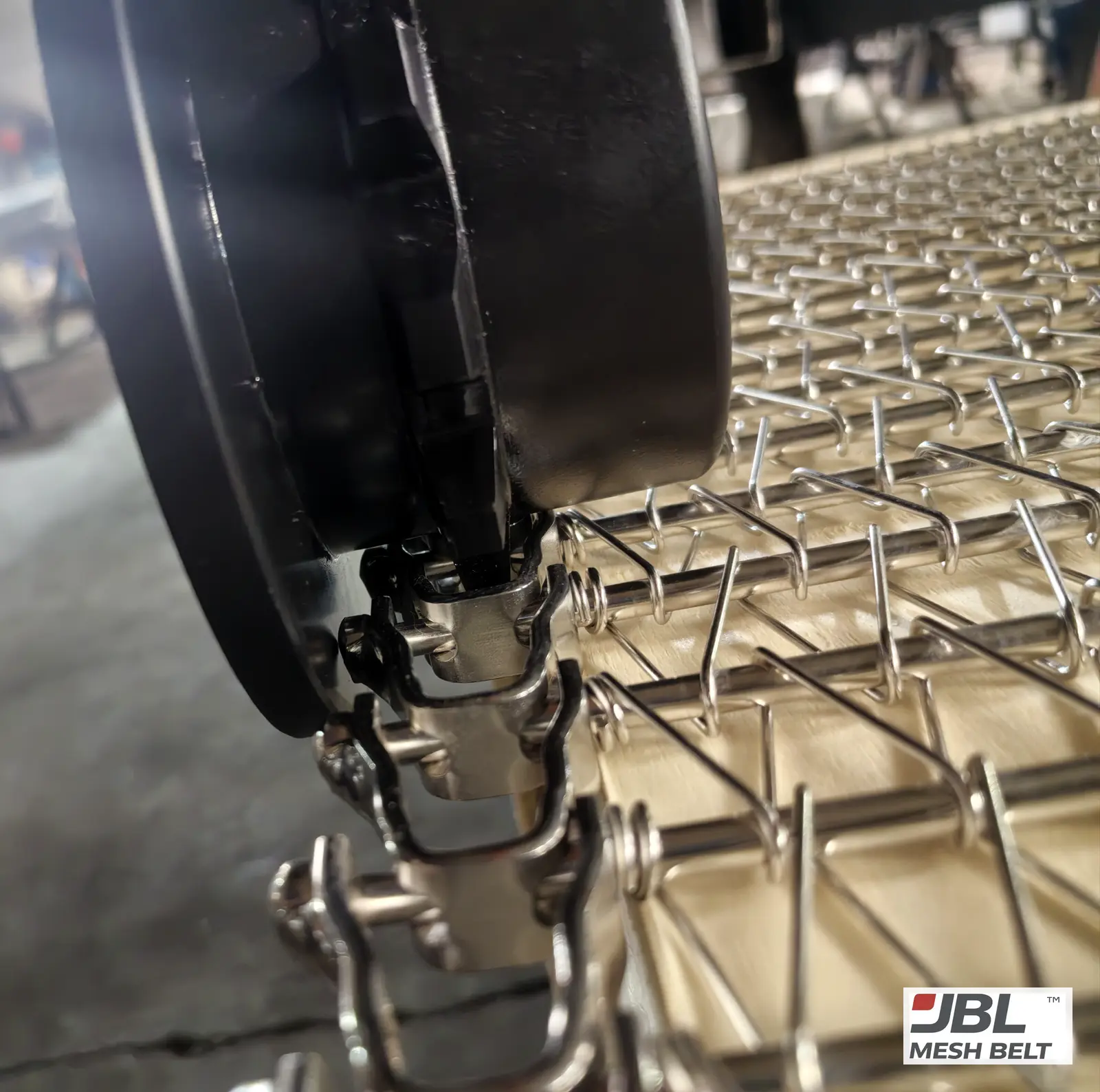

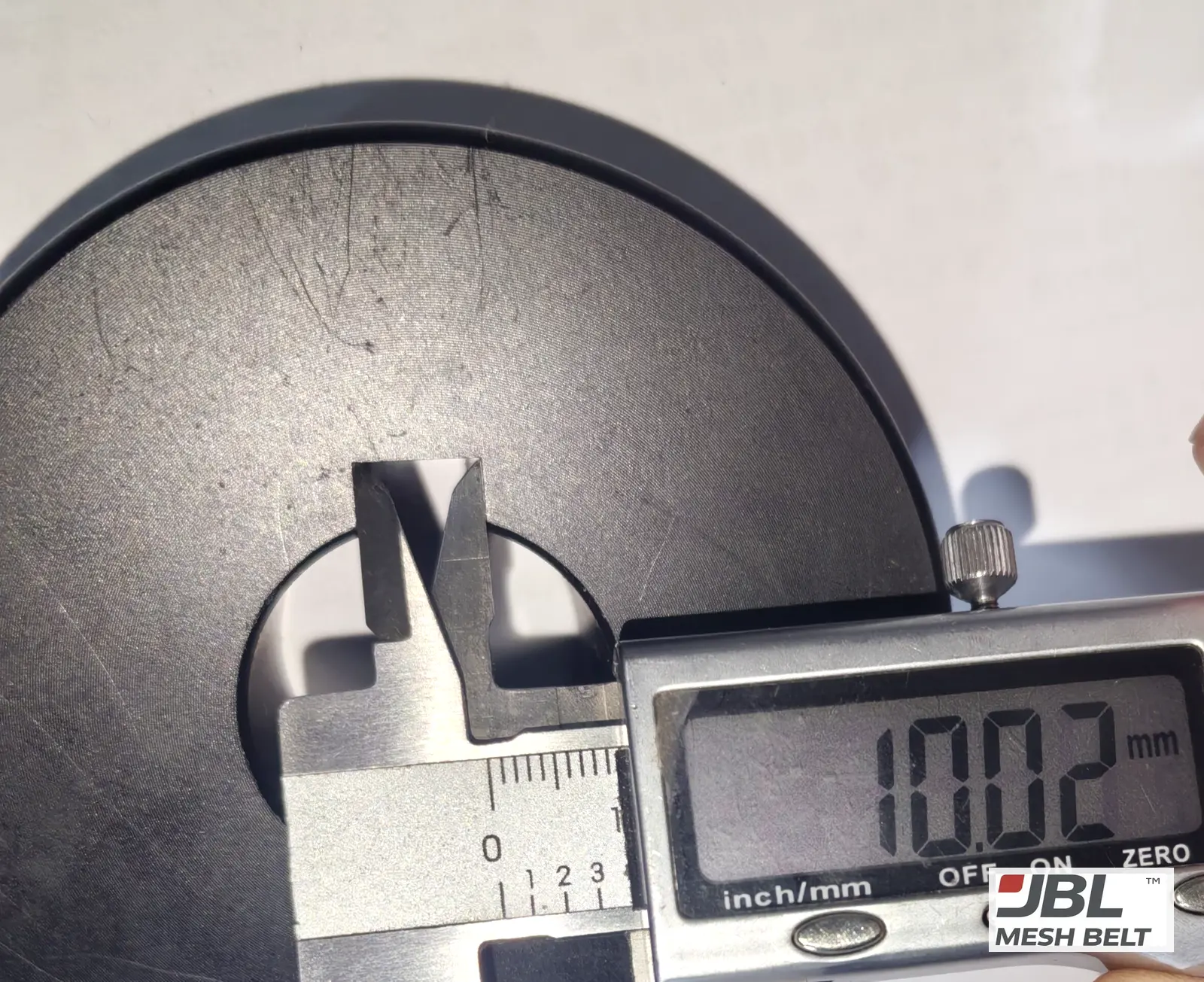

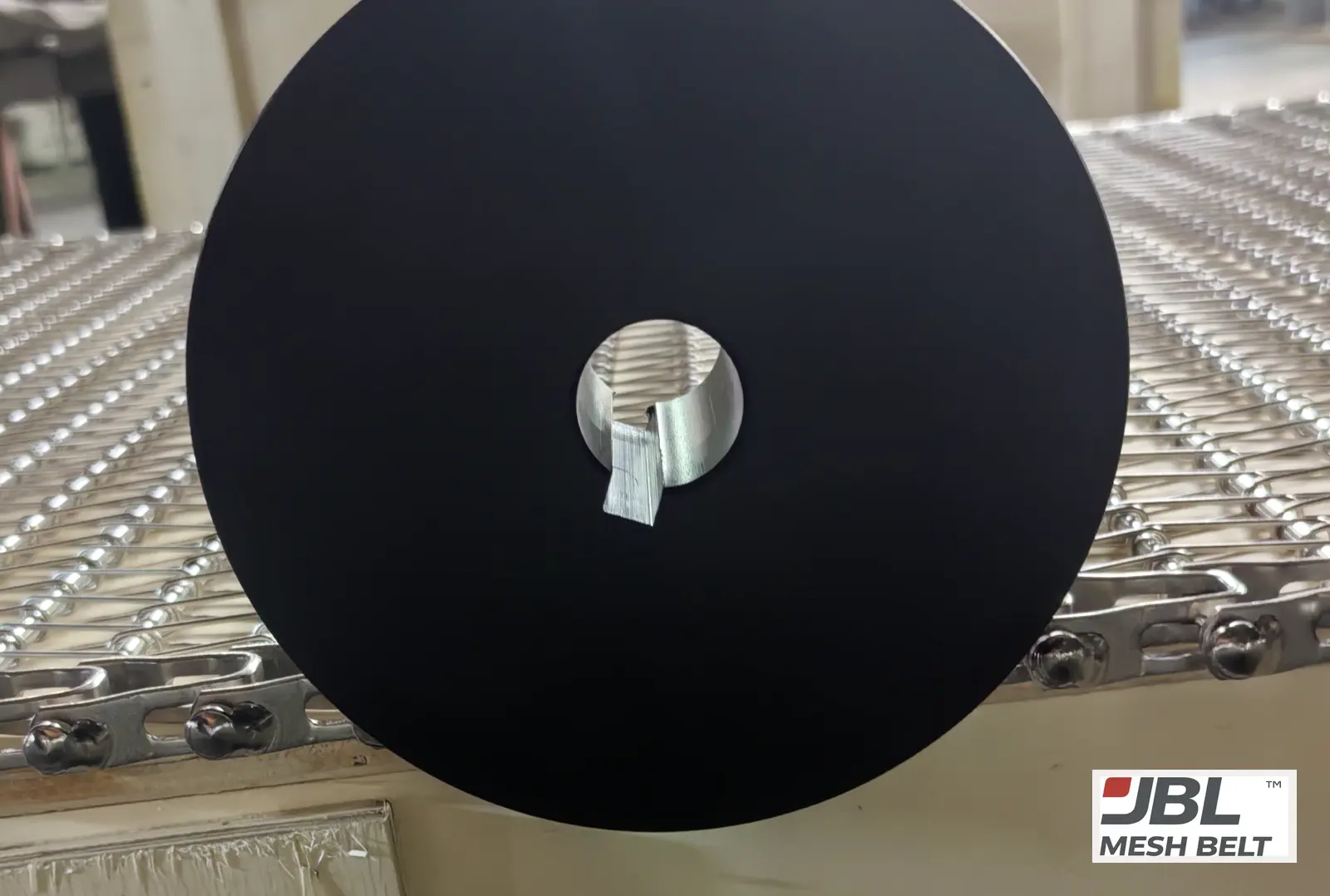

New sprockets were made to the customer's originals — bore, keyway and tooth — and run on the bulk belt to check engagement before the crates were closed.
05
Shipment

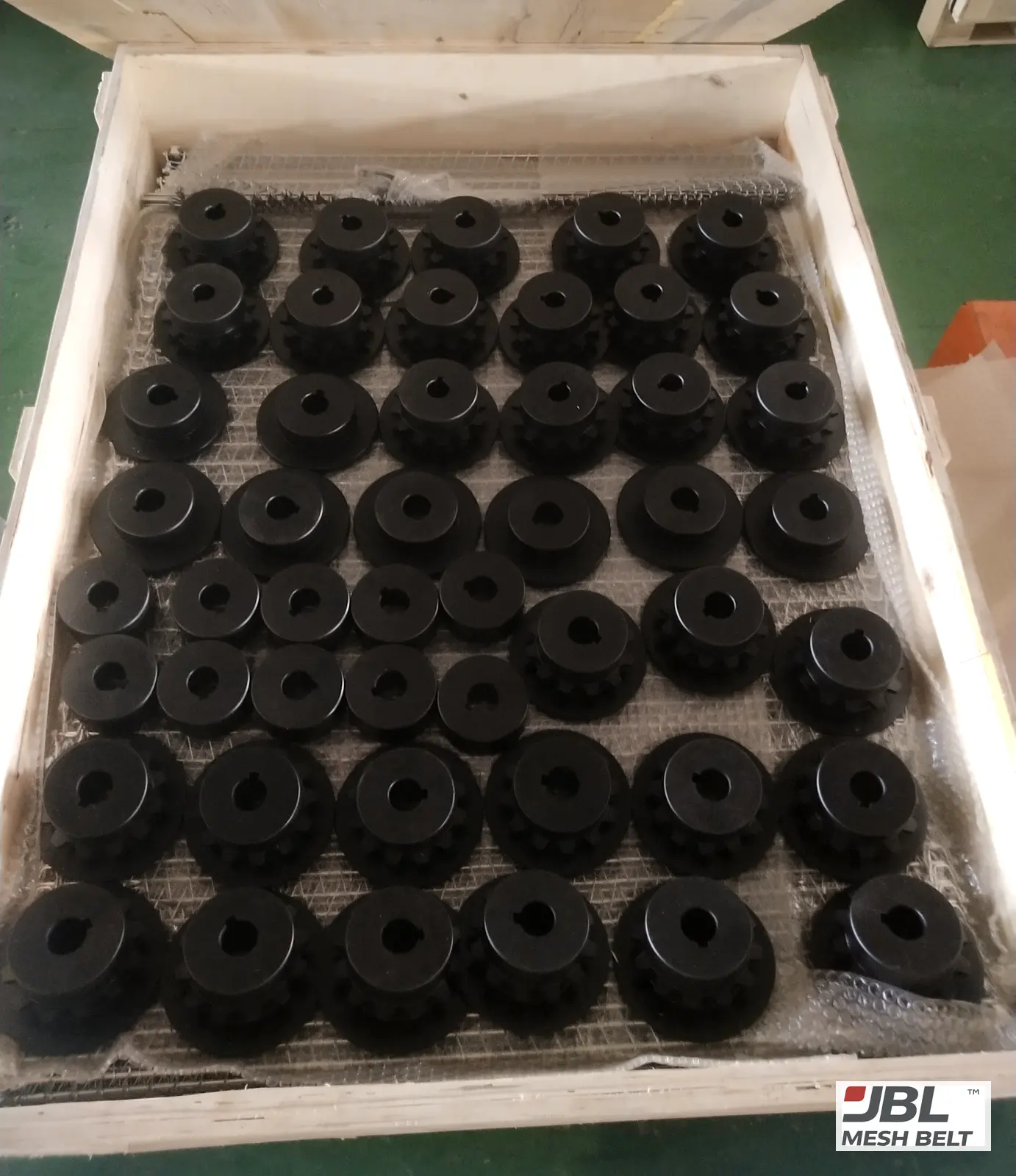

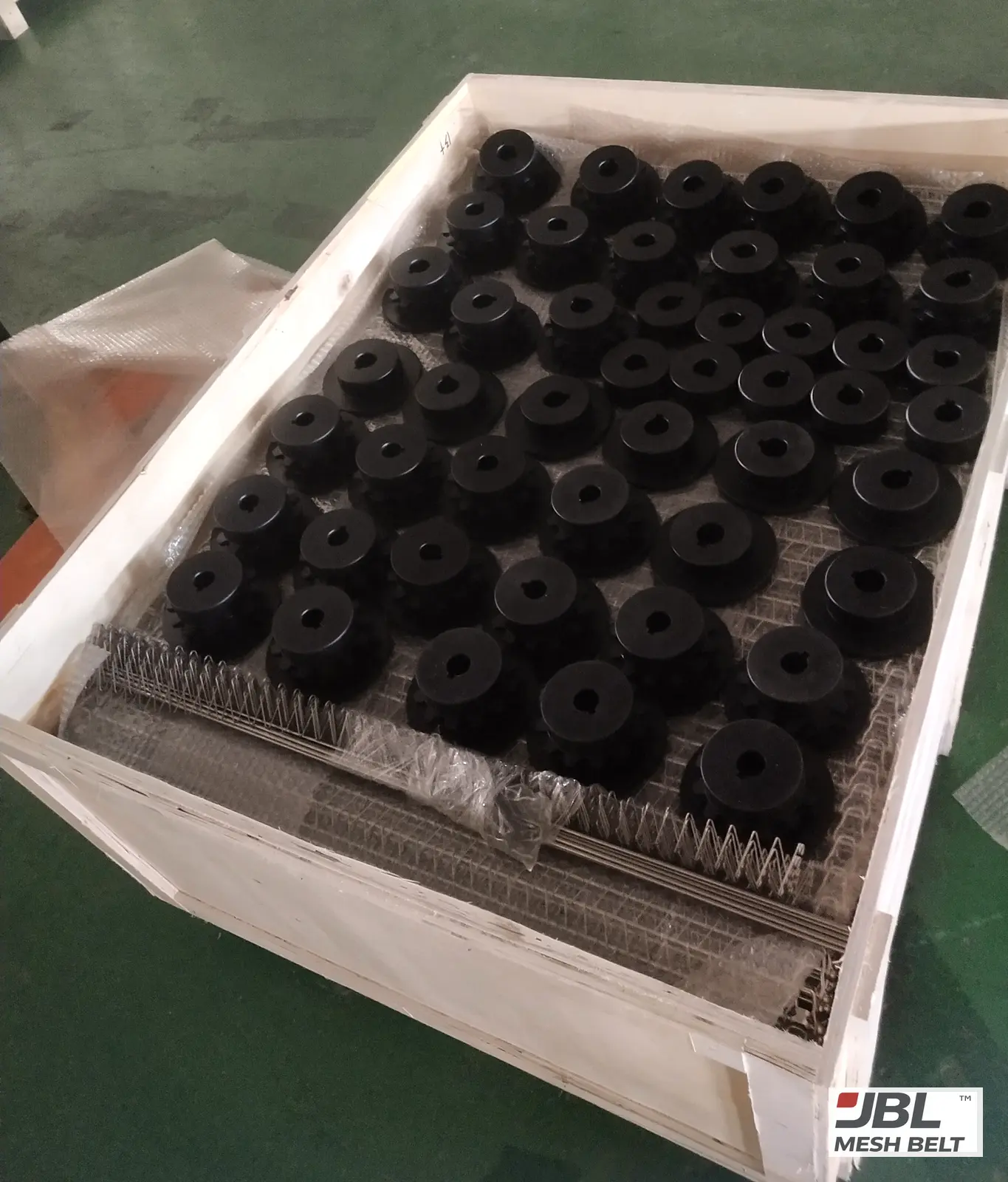

Checked Before Packing, Then Shipped
06
Project summary
What This Project Shows Buyers
| Year | February 2026 |
|---|---|
| Industry · equipment | Waffle production · spiral cooling tower |
| Original equipment | Spiral by an equipment maker in Türkiye (not named) |
| Starting point | Customer's belt section and sprockets — no drawing |

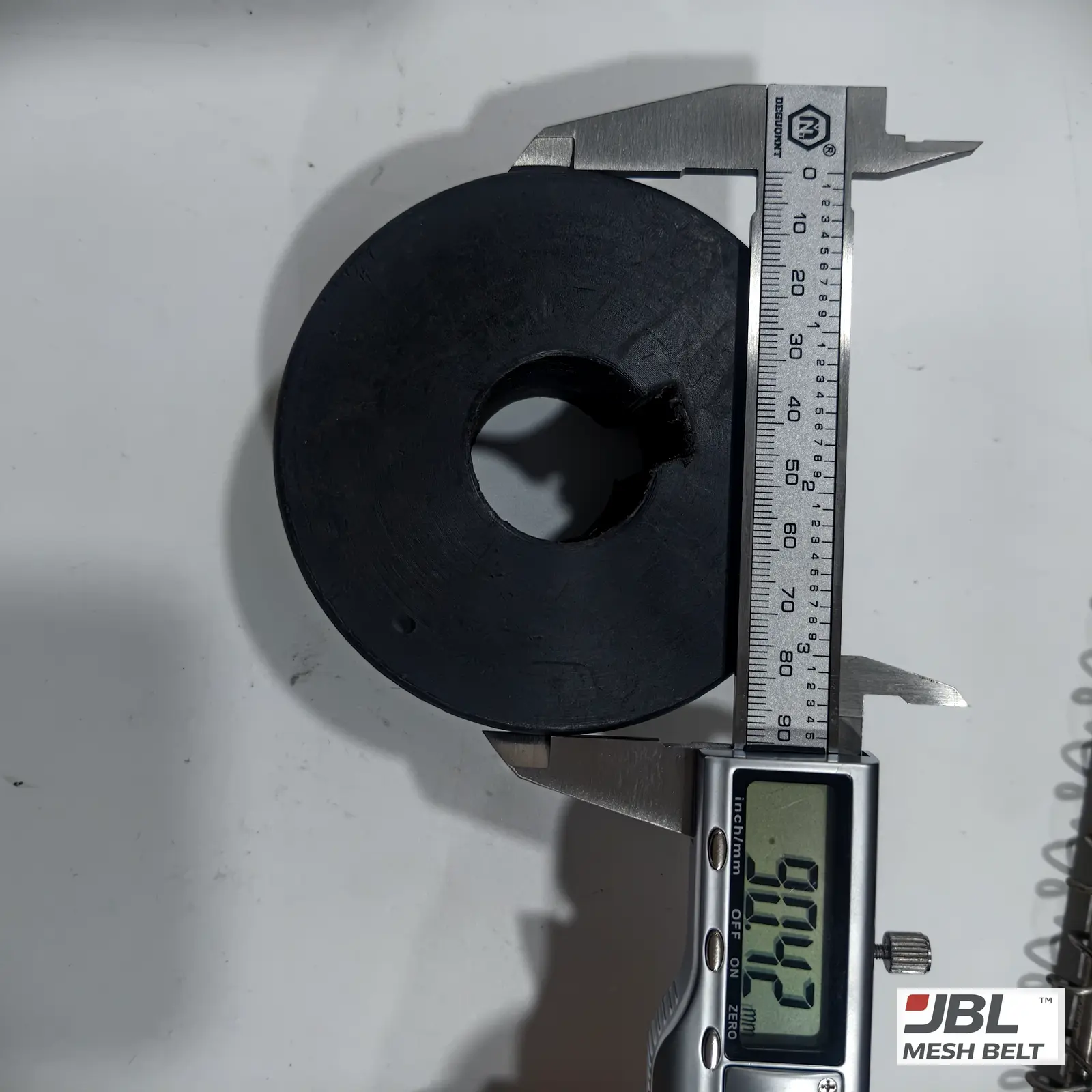

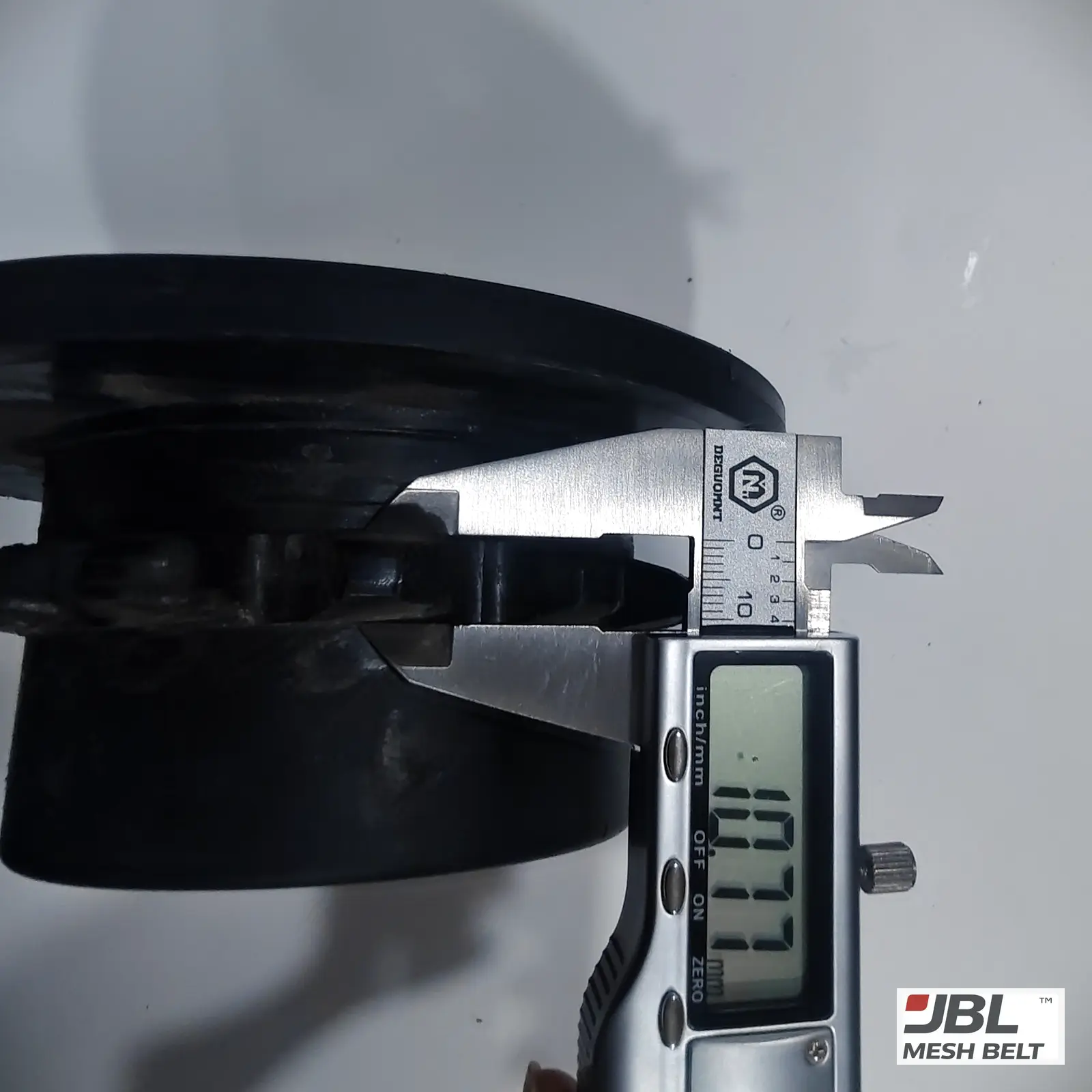

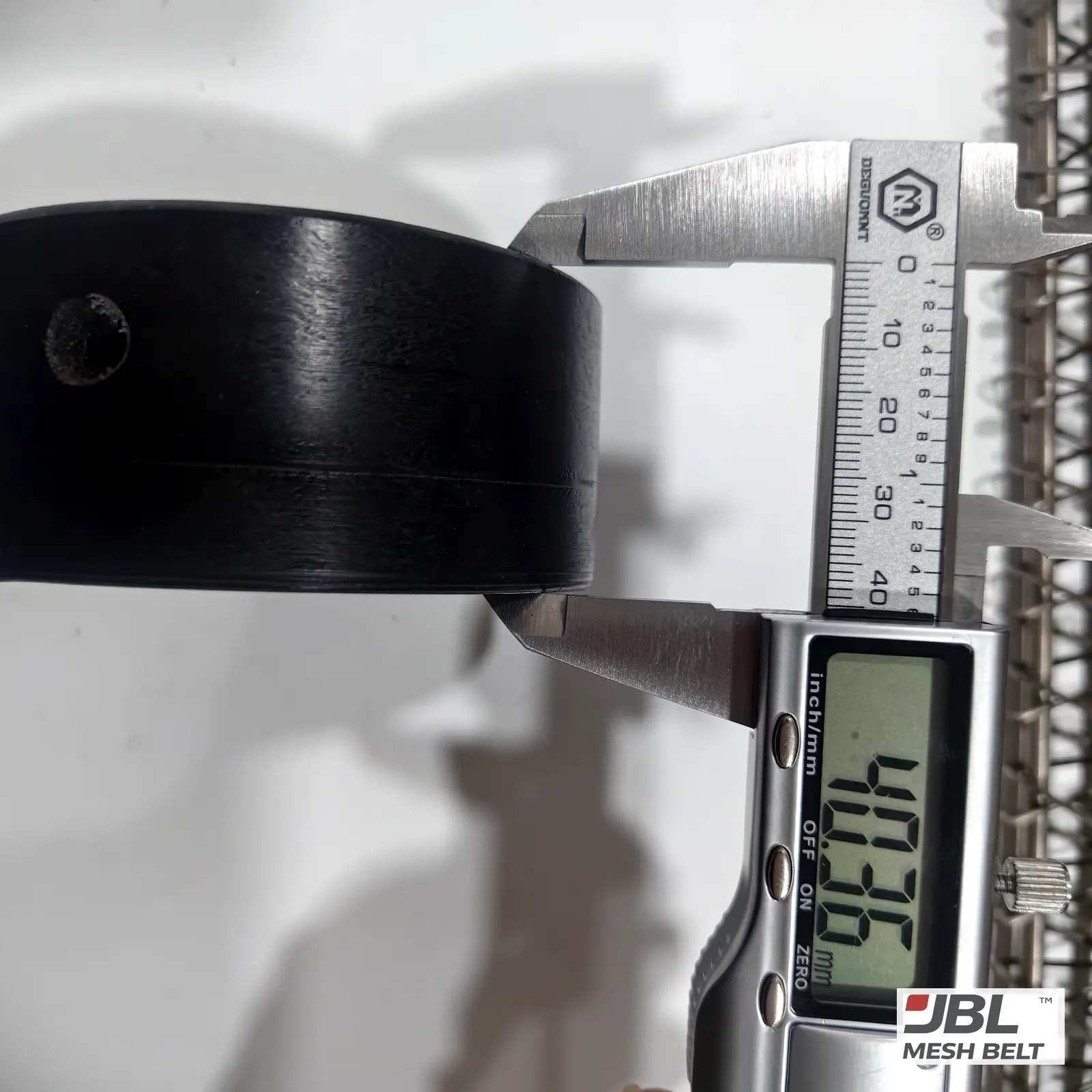

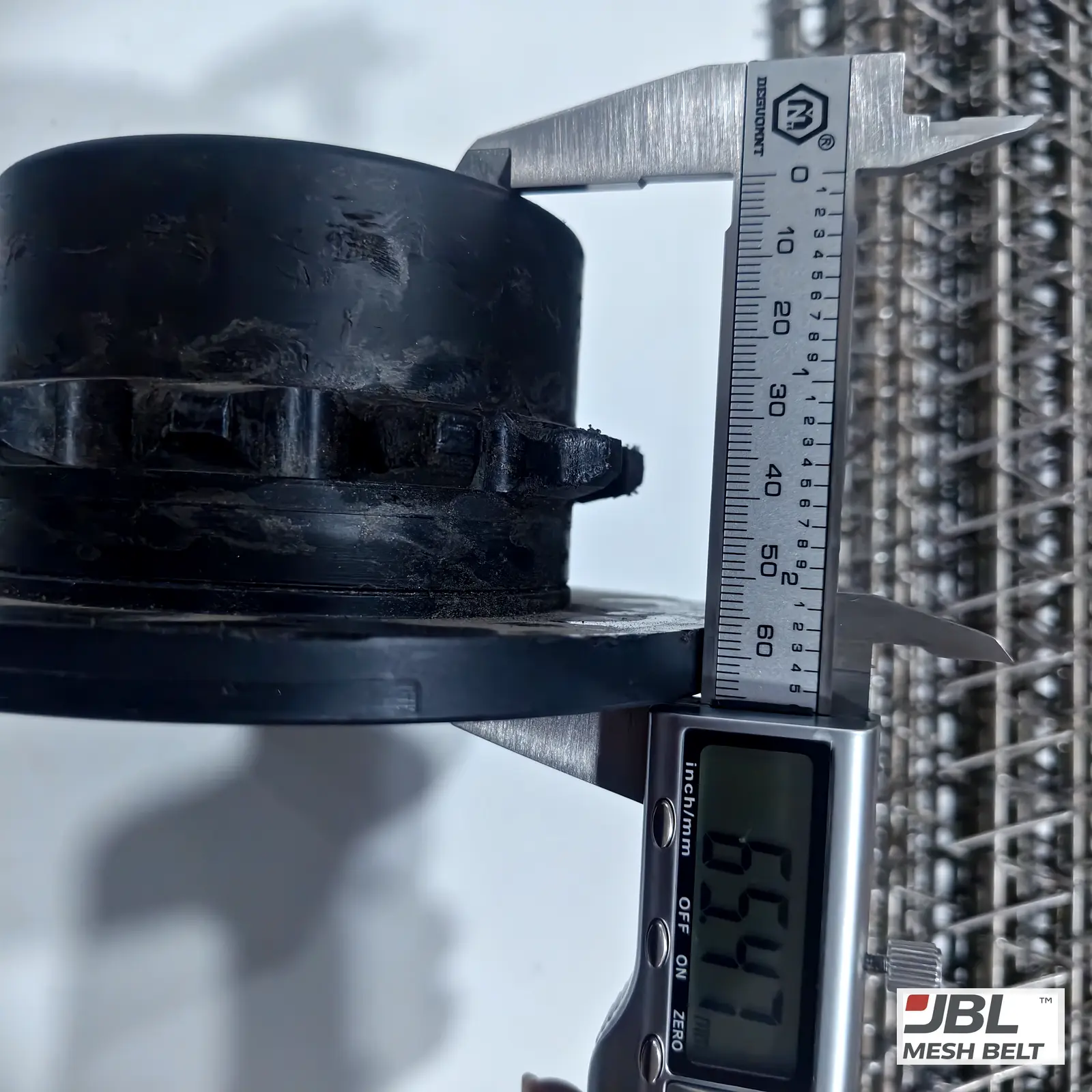

| Measured | Rod, link thickness and link sizes; sprocket width, hub, bore and tooth |
| Trial run | Made, linked into the original and compared with the same tools |
| Approval | Photos of the trial run approved by the customer before bulk |
| Bulk | About 200 m of belt plus sprockets |
| Checked before packing | Final inspection of the bulk belt with caliper and tape; sprocket running test on the bulk belt |
2.A worn sample is measured — then corrected to new
The original link read 2.42 mm after years of wear; the new link is 2.71 mm. Wear is identified, not copied.

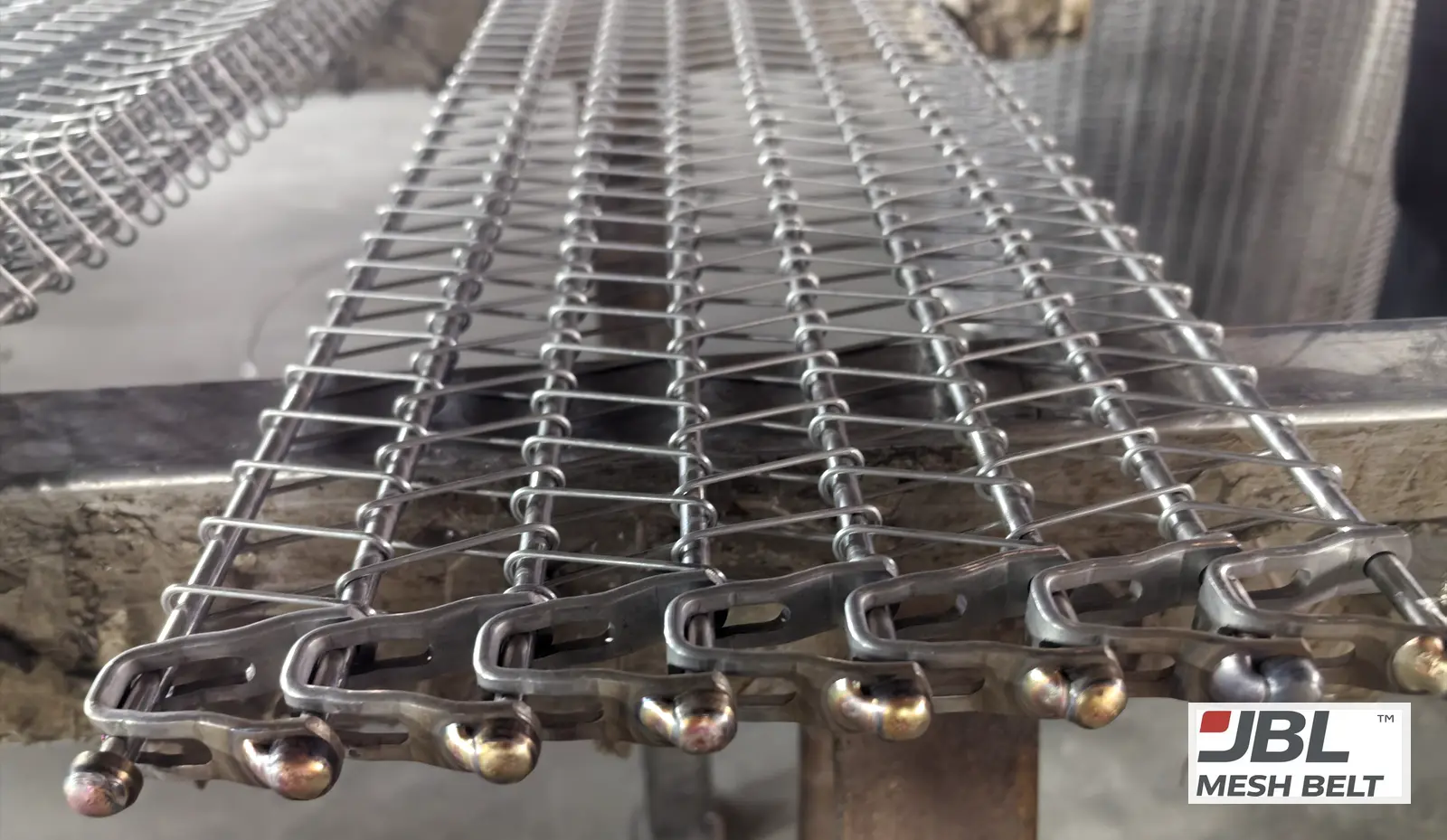

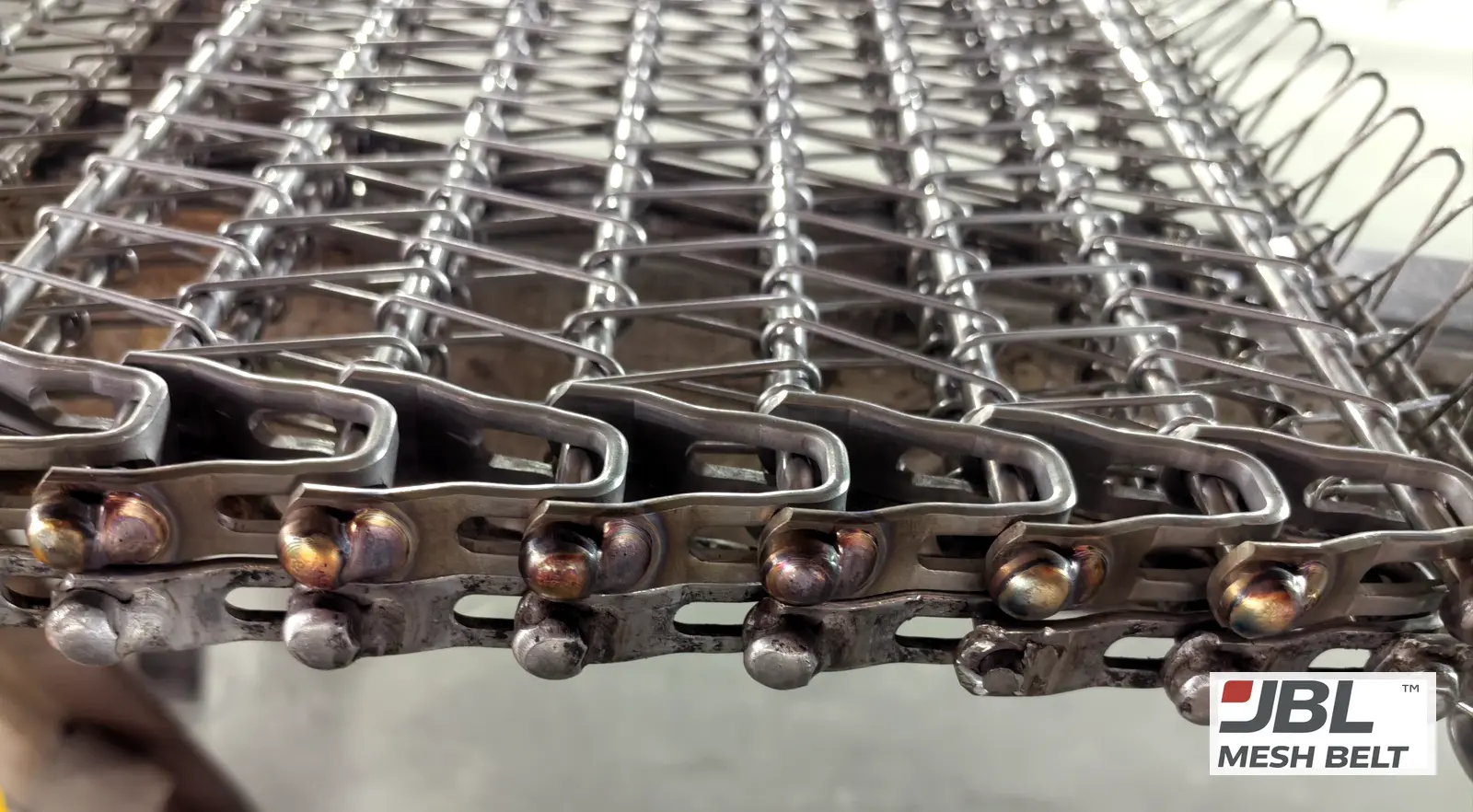

3.Link the trial run into the original
Joining a trial section to the customer's belt shows pitch and link fit directly — clearer than any drawing.
4.Photos before bulk remove the risk for the buyer
The customer was worried at the start; seeing the trial run next to the original, photographed and measured, was what made the go-ahead easy.
✓ Evidence on this page: photos of the worn original belt and sprockets, 11 caliper readings on the originals, 8 photos of the trial run compared with and linked into the original, 7 readings on the bulk belt, a sprocket running test video and packing photos. Customer, location details and the original equipment brand are withheld.
