Should You Trial a Short Length of Self-Stacking Belt Before the Full Order?
Written bySpringSales Director, JBL Mesh Belt · 16 years in metal conveyor beltsProjects in United Kingdom · USA · Australia · Brazil · South Korea · Spain · MalaysiaPublished
The sample looked right on the bench. But your freezer runs every day, and a full-length belt is a big bet on one sample.
Short answer
If your freezer cannot risk downtime, yes. A sample proves the dimensions. A short trial length, run on your own freezer, proves the fit in the stack and the turn. In Brazil, about 50 m ran on the freezer before the 350 m order.
At a Glance
| Step | What it proves | What it cannot prove | Real project |
|---|---|---|---|
| Readings on your original | The values to copy | How the new belt runs | UK, Brazil |
| Sample, measured side by side | Dimensions match | Behaviour over a full tier | UK |
| Turning and stacking tests | The belt turns and stacks | Your drive and your product | UK (both); Brazil (stacking) |
| Trial length on your freezer | Fit on your own line | Long-term wear | Brazil |
| Full order | Same values, same checks | — | Brazil: 350 m, then a repeat 350 m |
I have taken buyers through each of these steps. Here is what each step proves, what it costs you, and when you can skip the trial length.
01What is the difference between a sample and a trial length?
Both come before the full order. They answer different questions.
Short answer
A sample is a short section measured side by side with your original. It proves the dimensions. A trial length is long enough to install and run on your freezer. It proves the fit in your stack, on your drive, with your product.
| Sample | Trial length | |
|---|---|---|
| Length | A short section | Enough to run on the freezer (Brazil: about 50 m) |
| Where it is checked | On the bench, with a caliper | On your own line |
| Proves | Rod, wire, pitch and side plate readings | Stacking, turning and drive on your freezer |
| Who pays | Confirmed in your quotation | You buy it as a normal order |
In the UK the buyer approved a sample. The sample was measured with the same caliper as the original section, reading by reading. There was no trial length; turning and stacking tests ran before bulk instead.
In Brazil the buyer wanted more. The new belt was joined to the original first. Then the customer bought about 50 m and ran it on the freezer before ordering the full length.
02Why join the new belt to your original first?
A new section joined to the old belt shows at once whether pitch and side plates line up.
Short answer

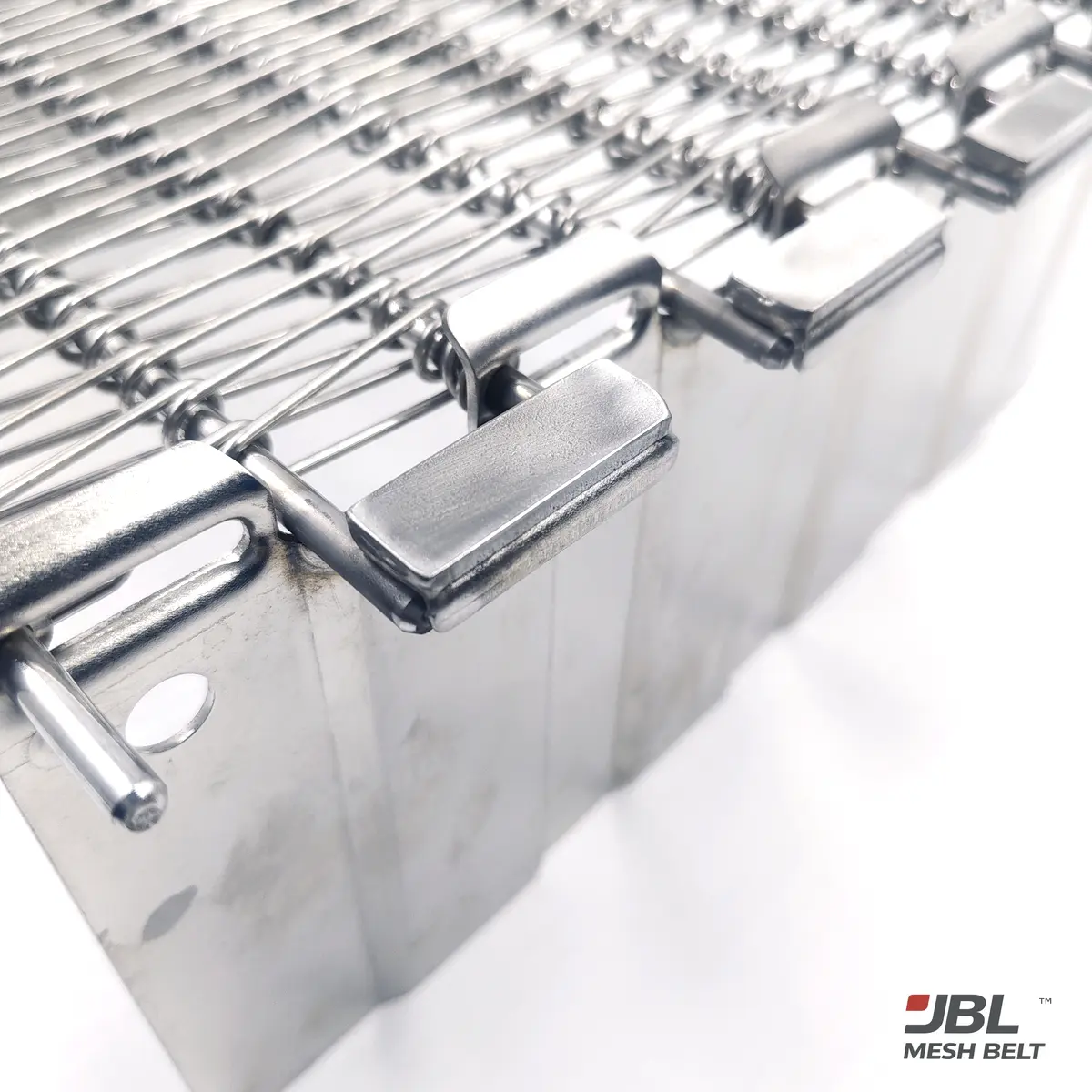

Joining the new belt to your original shows whether rods, pitch and side plates line up across the joint. A difference too small to see on one link shows up there — before you buy the full length.
| Reading | Brazil project |
|---|---|
| Material | SUS304 |
| Side plate | 80 × 1.5 mm |
| Rod · wire | 5 mm · 1.5 mm |
| Rod pitch | 30 mm |
| Wire reading | 1.51 mm |
| Mesh readings | 13.01 mm · 27.00 mm |
Brazil, December 2025 — meat freezing, self-stacking freezer.
The joint is where a pitch error shows first. Over one link, 0.1 mm means nothing. Over a long run of links, it decides whether the rods line up with the sprocket and the plates with the tier below.
That is why I like this check. It costs very little and it uses the most reliable reference you have: your own belt.
03What does a trial length on your freezer show?
Your freezer has its own drum, guides, drive and product. No test before shipment copies all of them.
Short answer
A trial length shows how the new belt stacks, turns and drives on your own freezer, with your own product. In Brazil the customer ran about 50 m on the freezer before ordering 350 m.
| Brazil, 2025 | What happened |
|---|---|
| Start | Section of the original belt sent to us |
| Fit check | New belt joined to the original |
| Before shipment | Belt stacked four tiers on a curve |
| Trial | About 50 m run on the customer's freezer |
| Order | 350 m, replaced on site |
| Repeat | A second 350 m |
I did not ask the customer to trust photos alone. They ran the belt on their freezer. After that run, the 350 m order followed, the replacement was completed on site, and later they ordered another 350 m.
A trial length is not free. You pay for it, and your team installs it in a planned stop. But compared with a full length that does not stack, it is a small cost.
04When can you go straight from sample to the full order?
Not every buyer needs a trial length. The UK project went from approved sample to 450 m.
Short answer
You can skip the trial length when the sample matches your original, the turning and stacking tests pass, and you see the evidence. In the UK the sample was approved, then both tests ran before 450 m was made.
| Reading | Original | Sample | Bulk belt |
|---|---|---|---|
| Rod | 4.99 mm | 5.01 mm | 5.00 mm |
| Wire | 1.65–1.68 mm | 1.71 mm | 1.71 mm |
| Rod pitch | 30.00 mm | 30.00 mm | 30.00 mm |
| Spiral pitch | 8.95 mm | 9.00 mm | 9.00 mm |
| Side plate thickness | 1.44–1.50 mm | 1.50 mm | 1.52 mm |
United Kingdom, 2026 — 450 m self-stacking belt, AISI 304.
The UK line was built by an original equipment maker, and the maker's price for a new belt was high. The buyer sent a section, approved the sample, and saw the turning and stacking tests before bulk.
05How do you plan a trial without stopping production twice?
Plan the steps around your planned stops, not around our schedule.
Short answer
Agree the steps in writing: readings, sample approval, tests before shipment, trial length, then the full order. You get a status update every Thursday, and you approve the sample before bulk.
- 01
Readings
Send a section, or caliper photos of your original.
- 02
Sample
Measured side by side with your original; you approve it.
- 03
Tests
Turning and stacking tests before shipment, with photos and video.
- 04
Trial length
Installed in a planned stop and run on your freezer.
- 05
Full order
Same values and checks; readings before packing.
Lead time for each step is confirmed in writing in your quotation. I do not guess it here.
Active projects get a status update every Thursday: the current stage, what is done, what is pending, and what I need from you. See the full process on our engineering support page.
For what each test shows, read turning and stacking tests before a belt ships. If you are qualifying a new supplier for the first time, read how to qualify a second-source supplier.
When This Is Not the Right Choice
- ✕If your freezer is new and has no original belt, there is nothing to join a trial length to — the drawing and the sample carry the approval.
- ✕If your line can only stop once, one planned stop for the full belt may be better; then the sample and the tests carry more weight.
- ✕A trial length does not prove long-term wear. Only time on your line does.
From My Engineering Experience
A buyer replacing an expensive OEM belt is taking a risk on a new supplier. I would rather make that risk small and visible than ask for trust.
In Brazil the trial length did the selling for me. After about 50 m ran on the freezer, the customer ordered 350 m and then another 350 m.
In the UK the buyer chose a different path: sample approval and tests, then 450 m. Both paths work when each step has evidence.
— Spring, Sales Director, JBL Mesh Belt
Evidence From Our Work
Brazil, 2025 — self-stacking belt for meat freezing →
| Step | Detail |
|---|---|
| Path | About 50 m trial → 350 m → repeat 350 m |
| Fit check | New belt joined to the original |
| Test | Four tiers stacked on a curve before packing |
United Kingdom, 2026 — self-stacking belt, OEM replacement →
| Step | Detail |
|---|---|
| Path | Sample approved → tests → 450 m |
| Bulk readings | Rod 5.00 mm; side plate 60.03 × 1.52 mm |
| Tests | Turning test and stacking test before bulk |
FAQ
Q1How long should a trial length be?
Long enough to install and run on your freezer. In Brazil it was about 50 m. Your freezer and your planned stop decide it.
Q2Is a sample enough on its own?
A sample proves the dimensions. Turning and stacking tests prove behaviour. Add a trial length if downtime risk is high.
Q3Do I pay for the trial length?
Yes, it is a normal order. Terms are confirmed in writing in your quotation.
Q4Will the full order match the trial length?
The full order is made to the same values and measured with the same caliper. You receive readings and photos before packing.
Q5Do you do this for spiral belts too?
Yes. In Malaysia a spiral belt trial run was measured and photographed and samples were sent before the bulk belt was ordered.
Conclusion
A sample proves the size. A trial length on your freezer proves the fit. Choose the step that matches your downtime risk, and ask for evidence at each one.
